Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Up to 96 Ports
Adapter panels and splice trays NOT included.
Mounting kit required for NEMA 4 compliance.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3996STA24 splice tray.
Wall Mount Fiber Patch Panel, NEMA 1 & 4 Rated, Holds 4 Adapter Panels and 4 Splice Trays, Up to 96 Ports, Beige

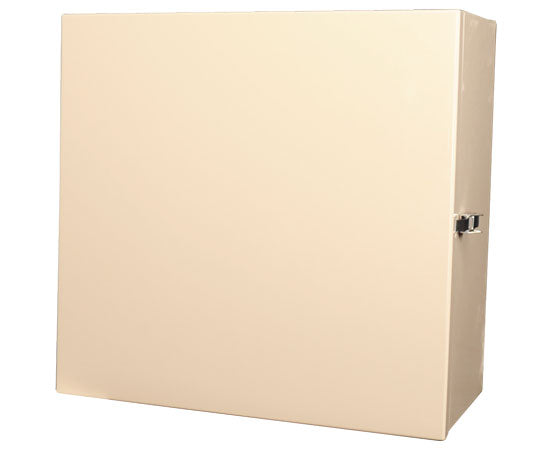

The B23-3965WN4D4 is an outdoor rated NEMA 1 & NEMA 4 (mounting kit required for NEMA 4 compliance) wall mount fiber patch panel. The enclosure is designed for environments where durability, security, and weather resistance is required. The enclosure is manufactured out of aluminum and coated with polyester powder coating for corrosion resistance.

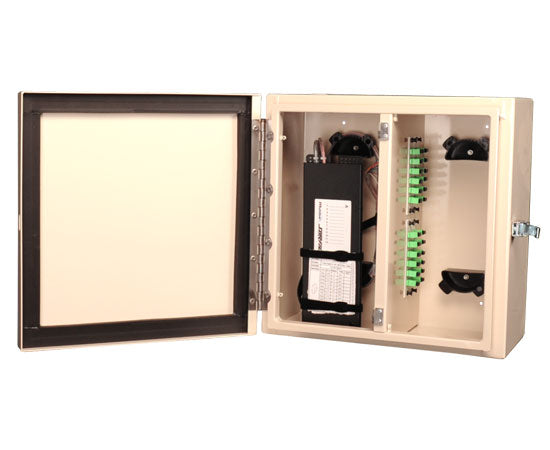

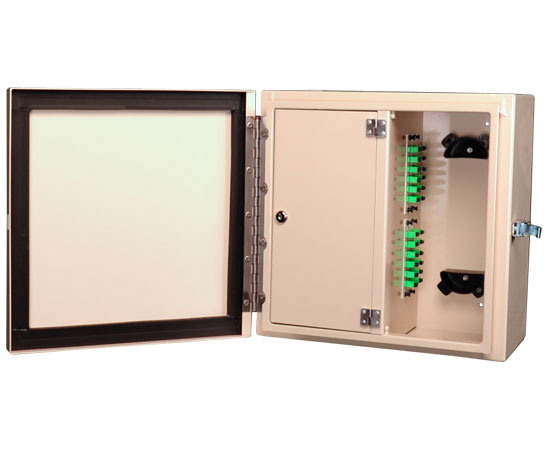

The Network compartment has a removable and lockable internal door with capacity for (4) Splice Trays, cable management, and a cable entry knockout. The Subscriber compartment has capacity for (4) Adapter Panels, cable management, and a cable entry knockout. The outer door is pad-lockable. Enclosure also includes (2) Cable Strain Relief kits, (1) Danger "Laser" Sticker, and blank labels.
Optional Accessories: Pole Kit NPNB-072-051-10 and Mounting kit NPNB-072-105-11 (to make unit NEMA 4 compliant)
- 4 splice tray capacity.
- 4 termination panel capacity.
- Lockable network door for added security.
- NEMA 4 rated—Mounting kit required..
||(4) 24 Fiber Splice Trays (Sold Separately)|
|Panels||(4) Panels (Sold Separately)|
.08" Powder Coated Aluminum
In Non-Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed, are as follows:
NEMA 1 Enclosures
Constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).
NEMA 4 Enclosures
Constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); and that will be undamaged by the external formation of ice on the enclosure.
