Wall Mount Fiber Patch Panel, NEMA 3 Rated, Up to 6 Ports with Splice Block

by OCC
$99.99
SKU: OCO6NS
Various lead times may apply to this product. Please contact us for more details.

Adapter panels NOT included. 6 fiber splice block included.

This fiber wall mount enclosure is only compatible with OCC adapter panel inserts and splice trays. To find out more, give us a call or email us.

We do not offer credits or returns for this item.

Description

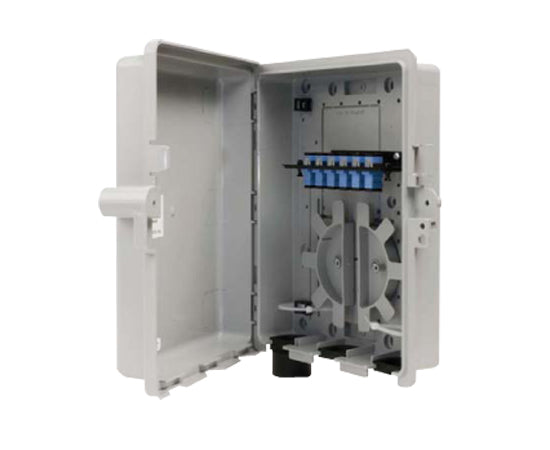

Wall Mount Fiber Patch Panel, NEMA 3 Rated, Holds 1 Adapter Panel and includes 6 Fiber Splice Block, Up to 6 Ports, Gray

OC Series Wall Mount Fiber Patch Panels offer the same modular features of the WTC series with the added outdoor durability for outside plant functionality. The OC series, like all Wall Mount cabinets can be ordered empty or can be easily customized to fit any exact specification. For NEMA 4 requirements, the OCO48 cabinets offer ideal protection from the outdoor elements. For smaller OSP and inside premise applications the new OCO6N and OCO12N are a perfect fit with the additional benefit of being NEMA Type 3 compliant.

Features

Features & Benefits

  • Accommodates snap-in adapter plate or cassette module.
  • Lockable clasp ideal for any padlock.
  • Fiber storage hoops designed to maintain orderly fiber management included.
  • Port identification sheets are included.
  • Mounting hardware included.

Specifications

Specifications

Port Capacity*: 6
Adapter Plates**: 1
Splice Capacity: 6
Splice Trays/Kits: Splice Block
*Port capacity based on standard six-pack adapter plates.
**Adapter plates are sold separately.

Additional Information

NEMA Rating

In Non-Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed, are as follows:

NEMA 3 Enclosures

Constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt and windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); and that will be undamaged by the external formation of ice on the enclosure.
