Wall Mount Fiber Patch Panel, Up to 24 Ports, Includes 1 Splice Tray

SKU: FB23-3969RNI2
Various lead times may apply to this product. Please contact us for more details.
Made in USA
One splice tray is included, but the adapter panels and additional splice tray are sold separately.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3999STP12 splice tray. To find out more, give us a call or email us.


Wall Mount Fiber Patch Panel, Indoor/Outdoor, Holds 2 Adapter Panels and 2 Splice Trays (1 Included), Up to 24 Ports, Gray

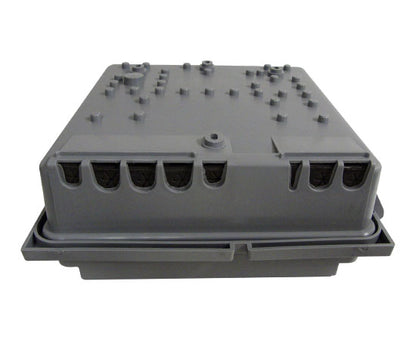

Indoor/Outdoor wall mounted fiber patch panel with multiple back plate options and multiple entry points at bottom of enclosure—5 cable entrances at the bottom right corner that allow drop cable to exit. This wall enclosure can hold two adapter panels and two 12 fiber splice trays.

The enclosure can be locked with either a small padlock or a locking terminator.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.


  • UV Stabilized Plastic.
  • Can be painted with latex paint.
  • Indoor/Outdoor.
  • Includes (1) 12 Fiber Splice Tray.



Splice Trays: (2) 12 Fiber Splice Trays (1) Included
Panels: (2) Panels Sold Separately


Depth: 4.86"
Height: 11.88"
Width: 12.27"
Weight: 4.2 lbs.

Physical Properties

Material: UV Stabilized Plastic
Color: Gray
