Wall Mount Fiber Patch Panel, NEMA 1 Rated, Up to 12 SC Connections, Up to 36 Splices

$286.99
SKU: FB23-4179N4BG
Various lead times may apply to this product. Please contact us for more details.
SC Connectors NOT included. One (1) splice tray included.

This fiber wall mount enclosure is only compatible with our FB10 fiber adapters/couplers and FB25-3995STP12 splice tray. To find out more, give us a call or email us.

Description

Wall Mount Fiber Patch Panel, NEMA 1 Rated, Holds 12 Simplex SC Connections and 3 Splice Trays, Up to 36 Splices, Beige

Compatible with Splice Tray FB25-3995STP12

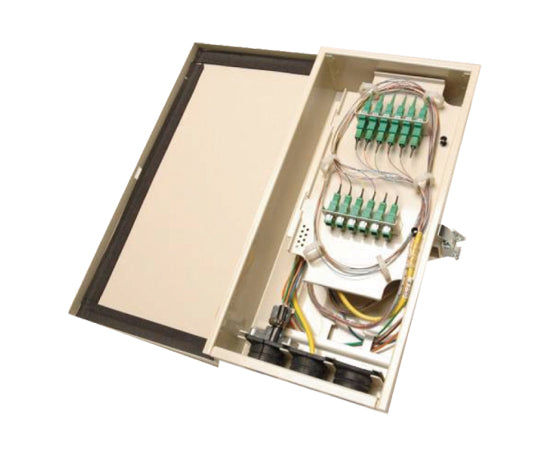

The FB23-4179N4BG is an outdoor rated NEMA 1 wall mount fiber patch panel. The enclosure is designed for environments where durability, security, and weather resistance is required. The enclosure is manufactured out of galvanneal and coated with polyester powder coat paint for corrosion resistance. The enclosure has a single outer door that is pad-lockable, and a removable inner swing out panel that will accept up to 12 SC or SCAPC fiber adapters, and provide for storage of three 12 Fiber Splice Trays. There are 3 non-captive cable entries at the bottom of the enclosure that use grommets to seal the cables.

Features

Wall Mount Cabinet Features:

  • NEMA 1 rated.
  • Lockable and removable door.
  • 2 panel or single splice options.
  • Includes optional termination panel.

Specifications

Capacity

Splice Trays: (3) 12 Fiber Splice Trays Sold Separately
Adapters: (12) SC Simplex Adapters Sold Separately


Outer Dimensions

Depth: 4"
Height: 17.5"
Width: 9"
Weight: 11 lbs


Physical Properties

Color: Beige
Material: 16 Gauge Powder Coated Steel

Additional Information

NEMA Rating

In Non-Hazardous Locations, the specific enclosure types, their applications, and the environmental conditions they are designed to protect against, when completely and properly installed, are as follows:

NEMA 1 Enclosures

Constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).
