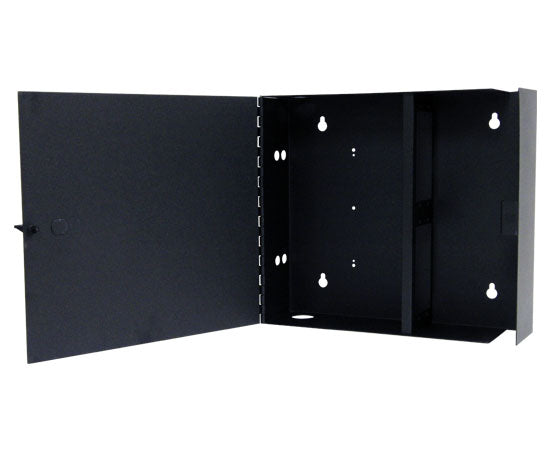

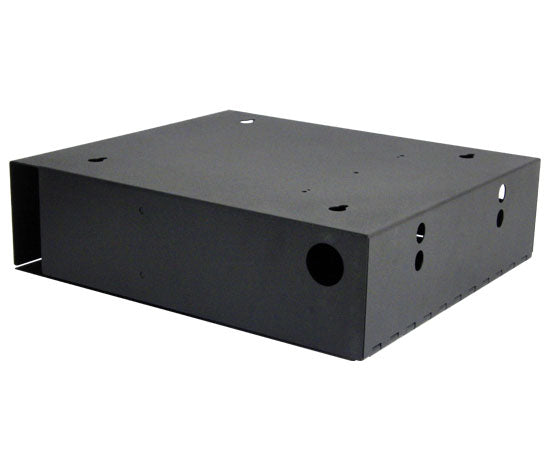

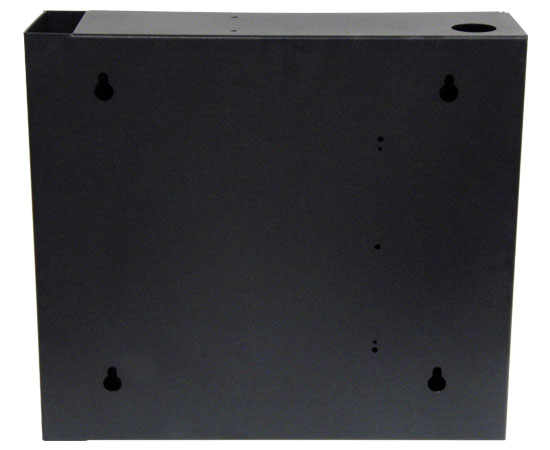

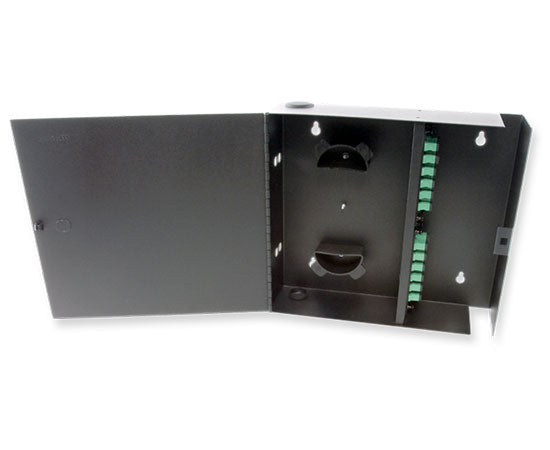

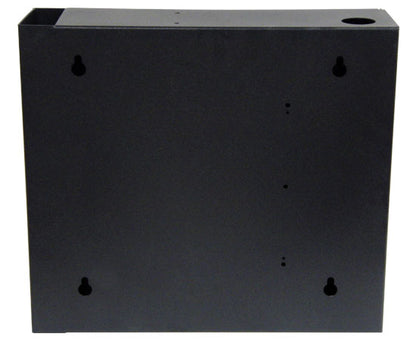

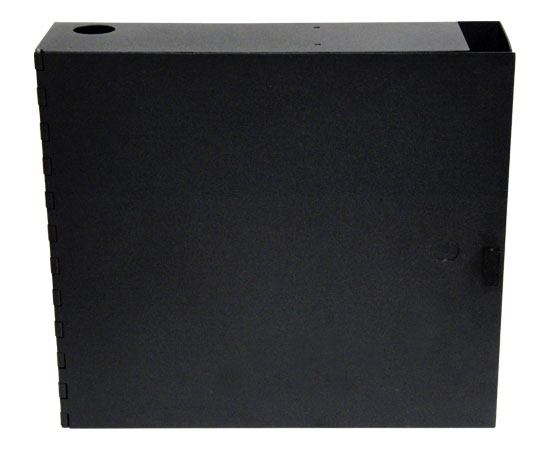

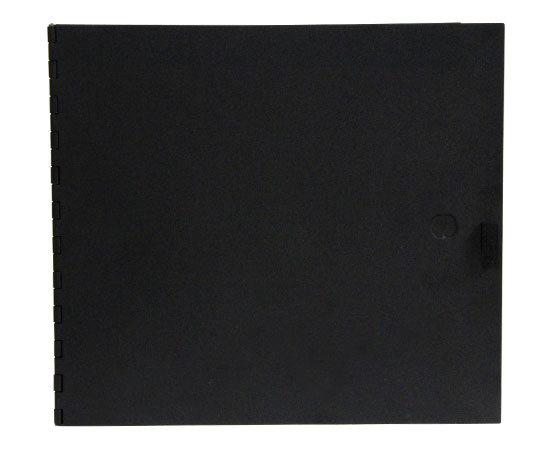

Wall Mount Fiber Patch Panel, Single Door, Up to 48 Ports

$93.11
SKU: FB23-3934W4

Made in USA

Adapter panels and splice trays NOT included.

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice tray. To find out more, give us a call or email us.

Description

Wall Mount Fiber Patch Panel, Single Outer Door, Holds 4 Splice Trays and 4 Adapter Panels, Up to 48 Ports, Matte Black

This wall mount fiber patch panel has a construction grade single outer door unit with 4 termination panel capacity. This fiber housing is designed to provide connectivity and distribution solutions.

This wall mount fiber distribution unit is a construction grade product. Each fiber housing is manufactured with a durable 18 GA steel material and coated with a scratch resistant polyester powder coat finish. Each fiber enclosure is specifically designed for minimal space requirements. All housings support both Patch and Patch/Splice applications. Each enclosure has two compartments separating the Network terminations from the distribution terminations. Units are designed with a single door for improved access.

We also stock the FB36-2787WM4. It includes splice trays and cable management half round spool.

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

Features

  • 4 splice tray capacity.
  • 4 Termination panel capacity.
  • Meets Telcordia specifications for bend radius
  • Can be used in all indoor areas
  • Durable powder coat matte black finish
  • Constructed with durable 18 Gauge Steel
  • Light weight
  • Single access primary door for maximum access to terminated Network fibers and associated splice trays
  • Open patch cord/jumper pathway for maximum flexibility
  • Top and bottom feeder cable entrance with 1" conduit installation capability
  • Optional keyed lock capability

Specifications

Specification

Capacity

Splice Trays (4) 12 Fiber Splice Trays (Sold Separately)
Panels (4) Panels (Sold Separately)

Dimensions

Depth 3.5"
Height 11.5"
Width 13"
Weight 9lbs.

Physical Properties

Color Matte Black
Material 18 Gauge Powder Coated Steel
