Wall Mount Fiber Patch Panel, Up to 24 Ports, Non-Captive Entry

$95.99
SKU: FB23-5778-N324
Style
Made in USA

This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3999STP12 splice tray.

Minimum order quantity may apply.

Description

Wall Mount Fiber Patch Panel, Indoor/Outdoor, Holds 2 Adapter Panels and 2 Splice Trays, Up to 24 Ports, Non-Captive Entry, Gray

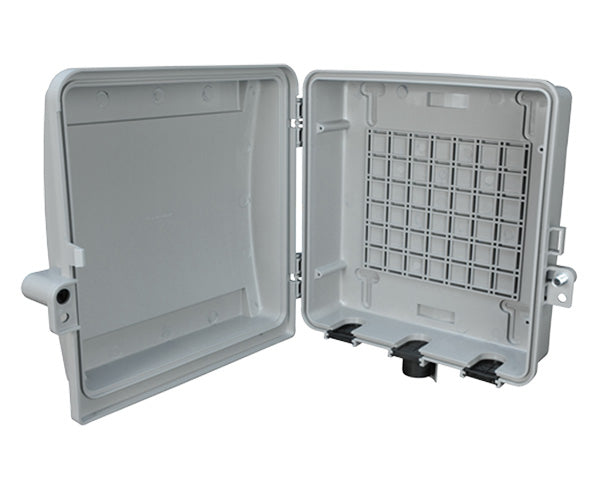

The plastic wall mount fiber patch panel provides the ultimate mounting flexibility with use of the FlexGrid™ mounting system. FlexGrid™ equipped boxes are guaranteed to fit any manufacturers splitter footprint. Four raised mounting blocks allow for a second level mounting plate to be installed above the base level of the fiber housing. Specialized grommets and a main cable tie-down location provide added security along with industry standard locking terminal.

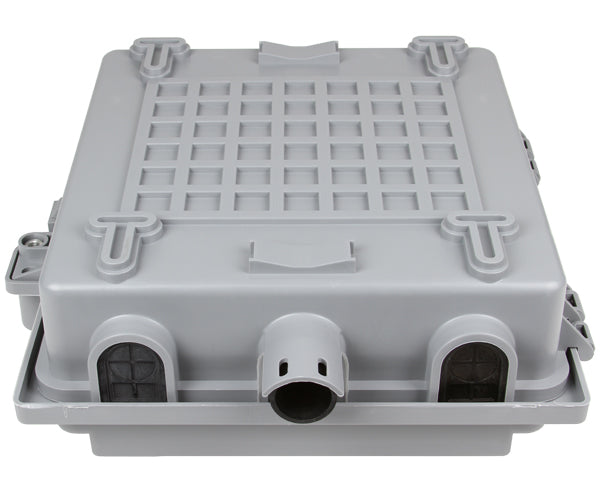

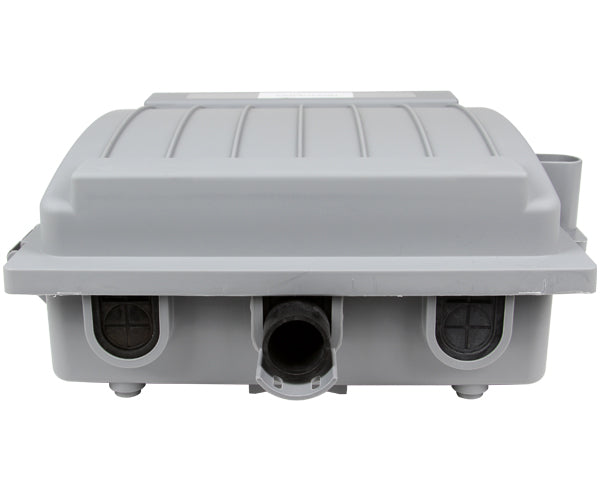

The multiport non-captive entry points at the bottom of the fiber enclosure allow for ease of cable installation into the box. This wall enclosure can hold two adapter panels and two 12 fiber splice trays (one splice tray is included with our Loaded option).

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Features

  • Captive grommets
  • Main cable tie-down
  • FlexGrid™ internal mounting
  • T-shaped mounting slots for various mounting options
  • Raised mounting blocks for mounting plate option
  • FB23-5778-N324 Includes (1) 12 Fiber Splice Tray.

Specifications

Depth 4.9"
Height 12.95"
Width 12.37"
Weight 4.5lbs
Material UV Stabilized plastic
Capacity
  • (2) 12 Fiber Splice Trays only (1) included FB25-3999STP12
  • Panels: (2) Panels Sold Separately
