Description

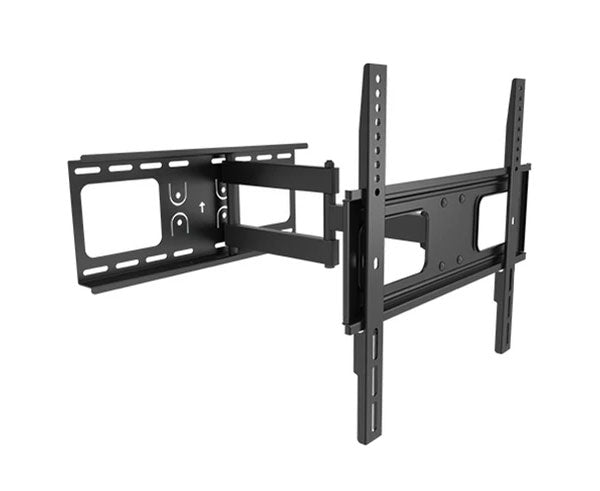

Universal Full Motion Wall Mount for 37” to 70” TVs
Want the best seat in the house? This full-motion wall mounts extend, retract, pan, swivel and tilt to deliver the best viewing angle to every viewer in the room. Post-installation level adjustment allows the TV to “roll” up to 3° clockwise and counterclockwise to ensure it is perfectly level. Adding a TV mount to your living room can make the room look more modern and cleaner. Mounting your TV even allows you to hide away your cables. Create a sleek and updated look by mounting your TV today.
Using normal entertainment centers to rest your TV on can be easy but having kids makes it nerve wrecking. By mounting your TV, you free yourself of the worry that it will fall on anyone.
Mounting your TV can also help with cable management. You can cleanly hide the cables along the mount and run them through the wall with state-of-the-art TV Boxes.
This single arm mount complies with VESA mounting guidelines. It can fit 37” TVs to 70” TVs that are flat panel and supports up to 110 lbs. With full motion, you can change your viewing angle to be exactly where you want. The swiveling arm allows you to point the TV where you stand or sit in the room. The arm also extends 18” from the wall to help position your flat screen precisely where you want. With a built-in level adjustment and mounting hardware included this flat screen mount is easy to install.
Features
Features
- Size: Fits most 37-70" curved and flat panel TVs
- Motion: Full-Motion
- Tilt: -20° / +10°
- Swivel: 90°
- Level Adjustment: +/-3°
- Supports up to: 110 lbs. (50kg)
- Profile to wall: 2.4"-18.7" (62-475mm)
- VESA Compliant: 200x200, 400x200, 300x300, 400x400, 600x400
- Includes mounting hardware
- Warranty: Limited 10 year
Specifications
Specifications
| TV Size | 37” - 70” (94 cm - 178 cm) |
| Weight Capacity | 110 lbs (50 kg) |
| Motion | Full Motion |
| VESA (Mounting Pattern | 200x200, 400x200, 300x300, 400x400, 600x400 |
| Back Plate Dimensions |
18.9” x 8” (480 mm x 204 mm) |
| Tilt Angle | -20° to +10° |
| Swivel | ±90° |
| Rotation | ±3° |
| Profile to Wall | 2.4” - 18.7” (62 mm - 475 mm) |
| TV Mounting Hardware Included | Yes |
| Integrated Cable Management | No |
| Integrated Bubble Level | No |
| Material | Steel |
| Surface Finish | Powder Coating |
| Color | Black |
| Installation | Solid Wall, Double Stud |
| Warranty | Limited 10 Year |
Additional Information
Installation Instructions
To learn more about our home theater cables, mounts and more here is a link to a page containing more information on our premium Home Theater Cables, Mounts, and More.
To learn more about our LCD Mounts here is a link to a page containing more information on our premium LCD Mounts.
What's in the box?
What's in the box?
- Qty 1 - Flat TV Mount Bracket
Hardware Included
- Qty 1 - Wall Plate
- Qty 2 - Adapter Bracket
- Qty 1 - Bubble Level
- Qty 4 - M5x14
- Qty 4 - M6x14
- Qty 4 - M6x30
- Qty 4 - M8x30
- Qty 4 - M8x50
- Qty 6 - D8 Washer
- Qty 8 - Big Spacer
- Qty 8 - Small Spacer
- Qty 6 - ST6.3x55
- Qty 6 - Concrete Anchor
