Wall Mount Plastic Fiber Distribution Unit, Up to 16 Ports, Up to 24 Splices
by Primus Cable
Adapters/Couplers,Splice Trays and Patch Cables are NOT included.
Wall Mounted, Plastic Fiber Distribution Unit , Flip-Up Patch Panel, Fixed Splice Tray, Holds 16 Adapters/Couplers with SC Footprint and 24 Splices

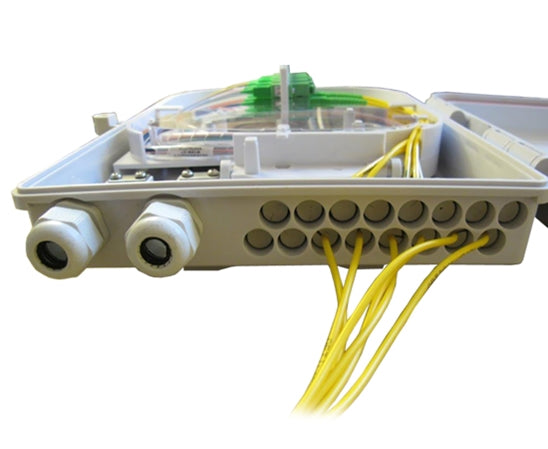

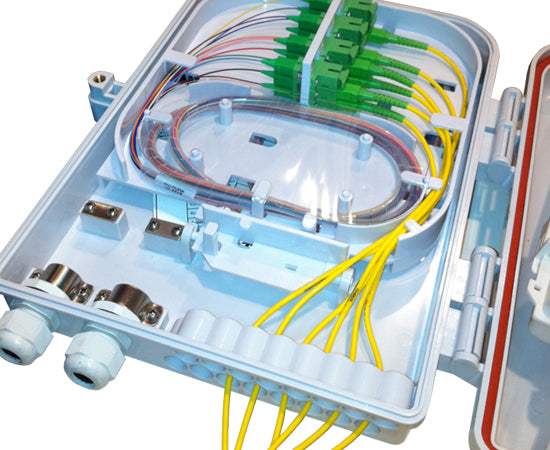

The FB23-4501WM24PL Splitter Terminal box is a rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application. Its multilayer design allows installers to access only the components necessary for initial installation or subscriber turn-up.
It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed. Applications: FTTH, FTTB, FTTC, Telecommunication Network, CATV, Local Area Network.
- Indoor/Outdoor Rated
- Available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter

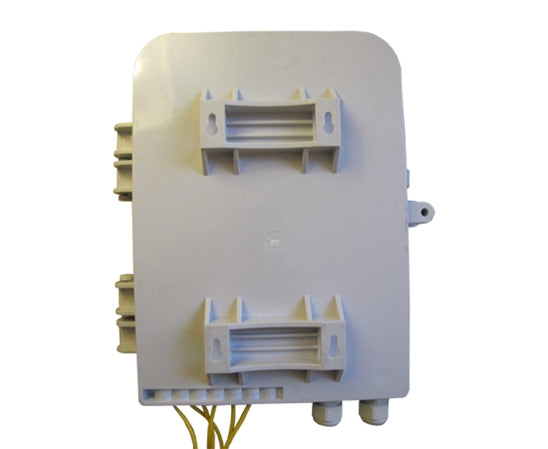

- Suitable for wall-mounting of pole mounting applications
- Maximum of up to 16 pieces of FTTH drop cable or pigtails
- 2 inlet ports and 16 outlet ports
Splices: 24 Splices
Adapters: (16) SC Simplex Sold Separately
Or (16) LC Duplex with SC Simplex Footprint Sold Separately
Weight: 4.5 lbs.
Color: Off White
