FTTH Wall Mount Plastic Fiber Distribution Unit, Up to 8 Ports, Up to 12 Splices

$39.99
SKU: FB23-4849-WM12PL
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Adapters/couplers and patch cables are NOT included.

Description

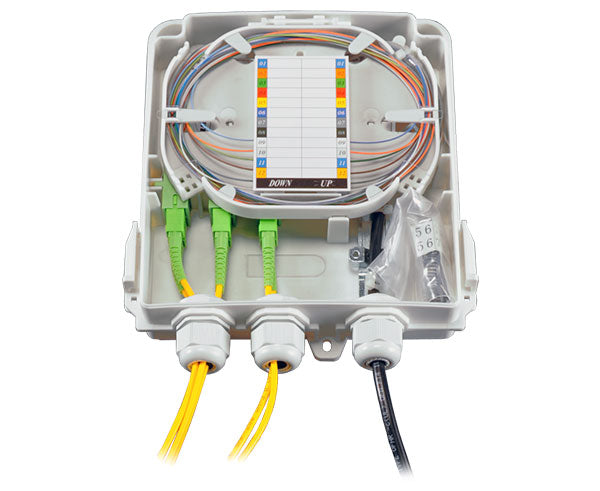

Wall Mounted, Plastic Fiber Distribution Unit

  • Holds 8 Adapters/Couplers with SC Simplex Footprint
  • Up to 12 Splices

The FB23-4849-WM12PL is a new generation product for fiber to the home. This box is light and compact and is specially designed for connecting and protecting fiber cables. Applications: FTTH, FTTB, FTTP, FTTC, Telecommunication Network, CATV, Local Area Network.

Features

  • Suitable for wall-mounting installation
  • Suitable for 8 SC adapters

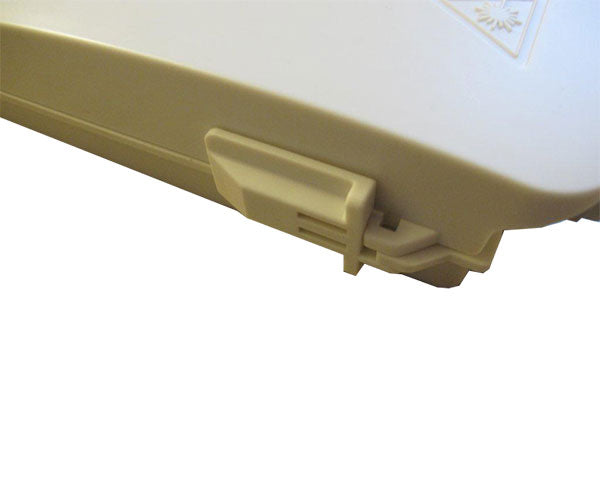

  • Easily to access the box by sliding shackle

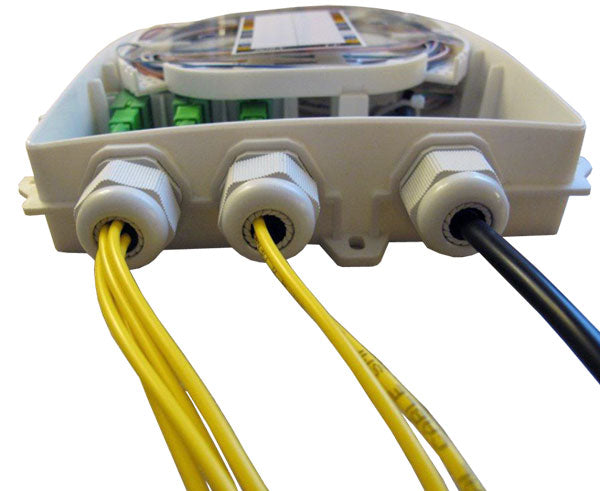

  • Applicable for outdoor cables or indoor soft cables
  • Size: 8.3x6.9x2in (210x175x50mm)
  • The maximum capacity is 12 fibers

Specifications

Capacity

Splices: (12) splices
Adapters: (8) SC Simplex Sold Separately
                  or (8) LC Duplex with SC Simplex Footprint Sold Separately



Dimensions

Depth: 2"
Height: 8.3"
Width: 6.9"



Physical Properties

Material: Plastic
Color: Off White
