Description
Description
APPLICATIONS
- Used as primary insulation for wire and cable splices up to 600 volts
- Used for wire harnessing
- Used for jacketing on high-voltage splices
Features
Features
- Good adhesion and elasticity
- All-weather performance
- Great tensile strength
- Resistant to UV, abrasion, and corrosion
- Flame-retardant
Specifications
Specifications
- Thickness: .007”
- Width: ¾”
- Length: 60’
- Backing: Plasticized polyvinyl chloride (PVC)
- Adhesive material: rubber-based
- Thickness 7 mil
- Adhesion to steel 16 oz/in
- Adhesion to backing 16 oz/in
- Tensile strength 15 lb/in
- Elongation 200%
- Operating temperature 20°F - 176°F
- Dielectric strength 1200 V/mil
- Certification UL/CSA
Additional Information
Additional Information
STORAGE CONDITIONS
Product should be stored in humidity-controlled, dry conditions between 50°F and 73°F (10°C and 23°C). Relative humidity should be less than 65%.
APPLICABLE REGULATORY STANDARDS
- UL Listed; UL Standard 510
- CSA Certified; CSA Standard C22.2
What's in the Box
What’s in the Box

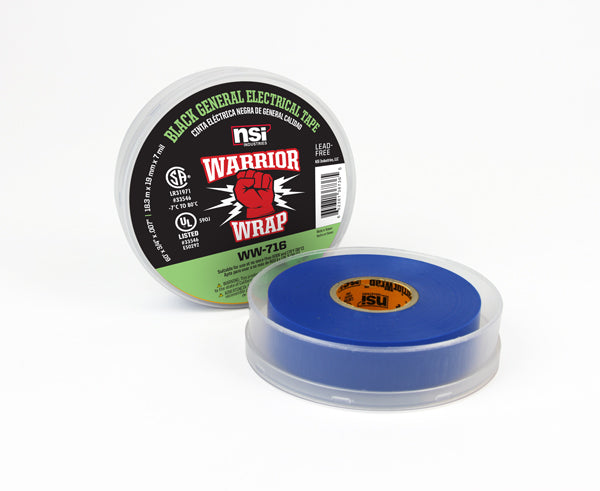

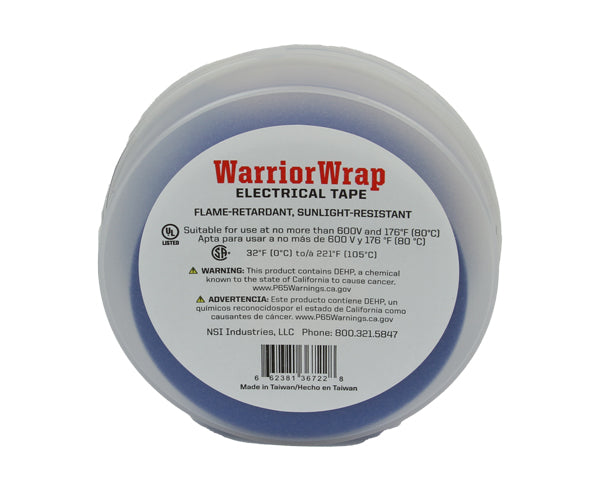

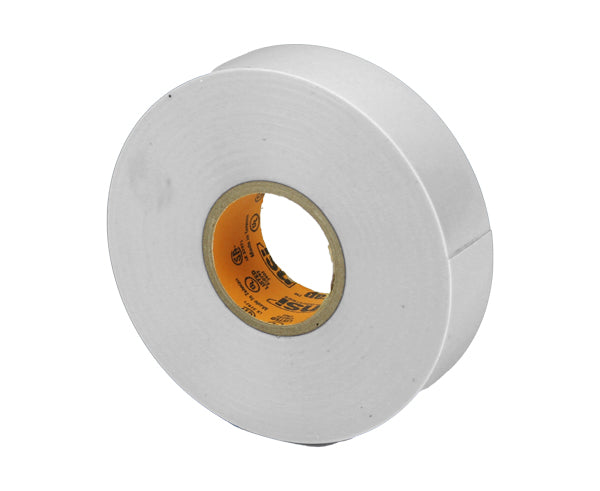

- Qty 1 - Warrior Wrap 7mil General Use Vinyl Electrical Tape, 60FT
