This item is final sale and is not eligible for return, exchange, refund, or order cancellation. Please review product details carefully.
Description
APPLICATIONS
- Used as primary insulation for wire and cable splices up to 600 volts
- Used for wire harnessing
- Used for jacketing on high-voltage splices
Features
Features
- Superior adhesion and elasticity
- Extreme weather performance
- Excellent tensile strength
- Highly resistant to UV, abrasion, and corrosion
- Flame-retardant
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| THICKNESS | .007” |
| WIDTH | ¾” |
| LENGTH | 66’ |
| BACKING | PLASTICIZED POLYVINYL CHLORIDE (PVC) |
| ADHESIVE MATERIAL | RUBBER-BASED |
| THICKNESS (MIL) | 7 MIL |
| ADHESION TO STEEL | 33.3 OZ/IN |
| ADHESION TO BACKING | 33.2 OZ/IN |
| TENSILE STRENGTH | 19.8 LB/IN |
| ELONGATION | 285.9% |
| OPERATING TEMPERATURE | 0°F – 221°F |
| DIELECTRIC STRENGTH | 1289.61 V/MIL |
| CERTIFICATION | |
| UL / CSA | |
Additional Information
STORAGE CONDITIONS
The product should be stored in humidity-controlled, dry conditions between 50°F and 73°F (10°C and 23°C). Relative humidity should be less than 65%.
APPLICABLE REGULATORY STANDARDS
- UL Listed; UL Standard 510
- CSA Certified; CSA Standard C22.2
What's in the Box
What's in the Box

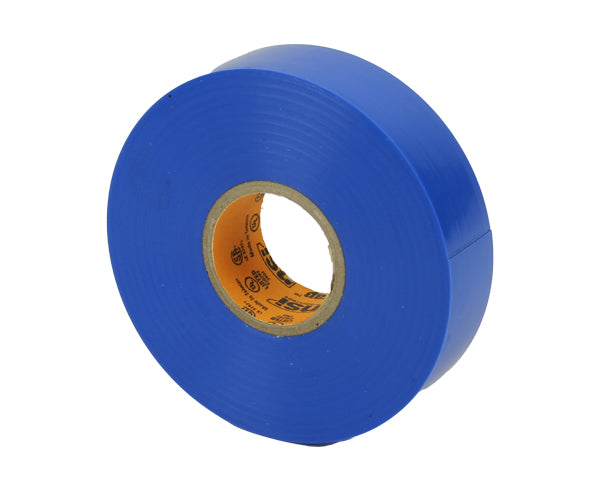

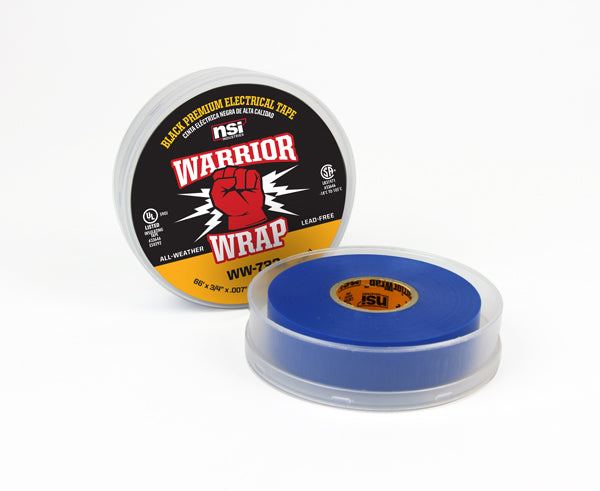

- Qty 1 – Warrior Wrap 7 mil Premium Blue Vinyl Electrical Tape Roll
- Qty 1 – Retail Pack (plastic-wrapped or shrink-wrapped roll)
