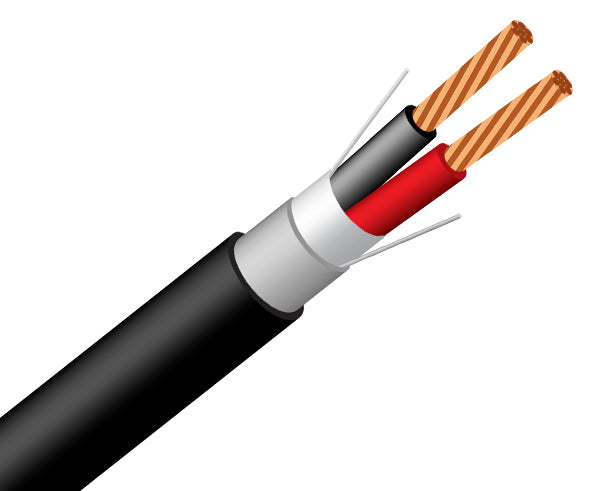

Water-Blocking Communication Cable: Sun-Resistant Direct Burial, CL3/FPL Rated, 18/2 AWG Stranded (7), Shielded, 1000 Ft - Black

$363.38
SKU: WB-3498-182S

Multiple Conductor 600V PLTC/Water Block/Sunlight Resistant CL3/FPL Rated

Made in USA RoHS Compliant ETL Verified logo

Description

Shielded 18/2 Water Block Cable:

Our water-resistant communication cable is a multi-conductor alarm wire suitable for security systems, intercom systems, sound/audio systems, and power-limited controls. This shielded direct burial cable features stranded bare copper conductors, PVC/nylon insulation, water block tape, aluminum polyester foil with a drain wire, and a black PVC jacket. Additionally, it is resistant to sunlight.

Features

Features

  • Low Voltage Process Control Circuits
  • Power-Limited Circuits
  • Power-Limited Fire
  • Security Systems
  • Intercom Systems
  • Sound/Audio Systems
  • Power-Limited Controls
  • Indoor or Outdoor Use

Applications:

  • Shielded Direct Burial
  • Water Block Tape
  • Sun Resistant
  • 18/2 AWG - 7 Strand Bare Copper Conductors
  • PVC/NYLON Insulation
  • 600V PLTC
  • Black PVC Jacket
  • Qty: 1000 Ft
  • Conductor Jacket Color:
    1. Black
    2. Red

Specifications

Specifications

Water Block Cable Multiple Pairs:

Technical Specs:

Conductor: Bare Copper
Insulation: PVC / NYLON
Jacket: PVC
NEC Articles: 725/760
Voltage Rating: 600 Volts
Temp. Rating: -39°C to 90°C Dry / 75°C Wet
Applications: Low Voltage Process Control Circuits | Power-Limited Circuits | Power-Limited Fire Protective
AWG / Cond Strand Outer Jacket Thickness Nominal OD Available Putups
18/2 7 .040 Inches 1.02 mm .310 Inches 7.87 MM 500 ft / 1000 ft

What's in the Box

What's in the Box

  • Security Alarm Cable - Water Block, Sun Resistant Direct Burial, CL3/FPL Rated, 18/2 AWG Stranded (7), Shielded, Black
  • 1000 Ft
