Surface Mount Water Sensor - 2500T/26000T Series

by GRI
$35.20
SKU: 2600T
Loop Type
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

Water Sensor (Under Carpet) with Relay Contact

Undetected water damage, such as that caused by leaking pipes or corroded water heaters, cost homeowners tens of thousands of dollars each year. Such repairs are time consuming and costly to correct. Applications could include computer room sub-floor areas, telephone equipment rooms, bathrooms, laundry rooms, any areas adjacent to a water storage tank or piping. Also evaporative air conditioners, drip pans, overflows and/or drains.

Using no mechanical parts, the GRI Water Sensors are triggered by a moisture bridge across the sensor contacts. The GRI Water Sensors can be installed to detect a layer of water as minute as 1/16 of an inch in depth. mitter, annunciator, etc.

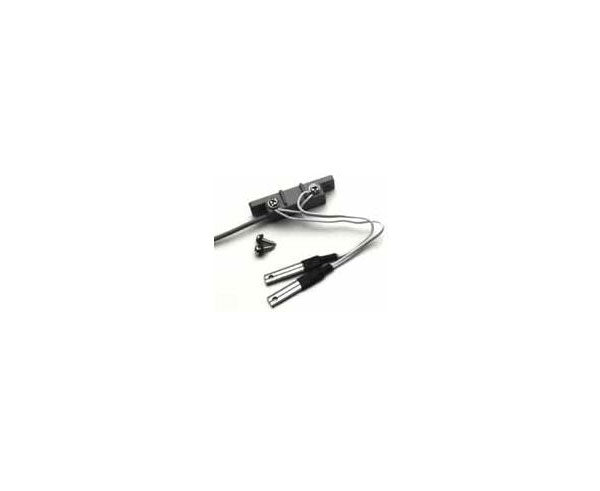

The 2600T combined with the 2600T-P (probe), provides a means of detecting water in difficult to monitor locations, such as under carpets and in drop ceiling panels. This is accomplished by mounting 1 or more 2600T-P’s in various locations around the area to be monitored, then run the probe wires to the terminal screws on the 2600T. The 2600T can then be wired for power as described above for the 2600 Water Sensor. The 2600T includes two 2600T-P probes. (A maximum of ten 2600T-P’s can be connected to each 2600T.) After installation these units should be tested with water and inspected annually. If there is any corrosion or damage the sensor should be replaced.

Using no mechanical parts, the GRI Sensors are triggered by a moisture bridge across the sensor contacts. The GRI Sensor can be installed to detect a layer of liquid as minute as 1/16 of an inch in depth.

Features

  • Will detect any conductive non-flammable liquid (Under Carpet)
  • Ideal anywhere water damage could occur
  • Automatic Reset
  • Available in gray only
  • 6 foot jacketed lead standard
  • Custom Lead Lengths Available
  • Available in 5 VDC, 12 VDC And 24 VDC
  • New 24 Volt AC Water Sensor
  • Made In U.S.A.

Specifications


What's in the Box

  • 1 x Water Sensor
  • 2 x Probes
