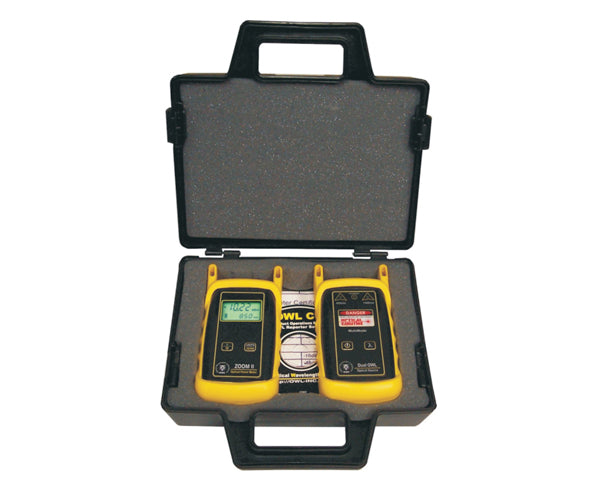

Multimode Fiber Test Kit
The ZOOM II / Dual Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks.
The ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode fiber cables. The 4-digit 7-segment LED display shows power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM II comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.
The Dual is our 850/1300nm NIST traceable multimode light source. Its dual wavelength outputs are temperature-stabilized for accurate measurements.
Features
Features
- Economical option for quick attenuation and loss testing of multimode networks at 850nm and 1300nm
- Easy-to-read 4-digit 7-segment LCD display
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NIST traceable
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| ZOOM II OPTICAL POWER METER | |
| DETECTOR | InGaAs 1mm |
| CALIBRATED WAVELENGTHS | 850nm, 1300, 1310nm, 1550nm |
| MEASUREMENT RANGE | +5 to -60 dBm (standard) |
| ACCURACY¹ | ±0.15 dB |
| LINEARITY¹ | ±0.20 dB |
| RESOLUTION | 0.01 dBm |
| BATTERY LIFE | Up to 250 hours |
| OPERATING TEMPERATURE | 0 to 55°C |
| NIST TRACEABLE | Yes |
| BATTERY CAPACITY DISPLAY | Yes |
| CONNECTOR | 2.5mm Universal |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| 1: OVER RANGE OF 0 TO -45 DBM | |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |
| DUAL MULTIMODE LIGHT SOURCE | |
| LAUNCH METHOD | LED |
| CONNECTOR | ST or SC |
| CENTER WAVELENGTH (850NM) | 850 ±30nm |
| CENTER WAVELENGTH (1300NM) | 1290nm min / 1350nm max |
| SPECTRAL WIDTH (FWHM; 850NM) | 60 nm |
| SPECTRAL WIDTH (FWHM; 1300NM) | 170 nm |
| OUTPUT POWER | -20.0 dBm |
| INITIAL ACCURACY | 0.1 dB |
| FIBER TYPE | Multimode |
| BATTERY LIFE | 40 hours |
| BATTERY CAPACITY DISPLAY | Yes |
| OPERATING TEMPERATURE | 0 to 55°C |
| STORAGE TEMPERATURE | 0 to 75°C |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |
What's In The Box
What's In The Box
- Qty 1 - ZOOM II Optical Power Meter
- Qty 1 - Dual Wavelength (850/1300nm) Multimode Laser Source
- Qty 1 - Protective Carrying Case
- Qty 1 - Product Manuals Packet
- Qty 1 - NIST Certificate
- Qty 2 - 9-volt Batteries
- Qty 2 - Protective Rubber Boots (ST Connectors)
- Qty 2 - Protective Rubber Boots (SC Connectors)
