Description
Includes one (1) power cord and all hardware to mount media converters to chassis.
Description
What This Product Does

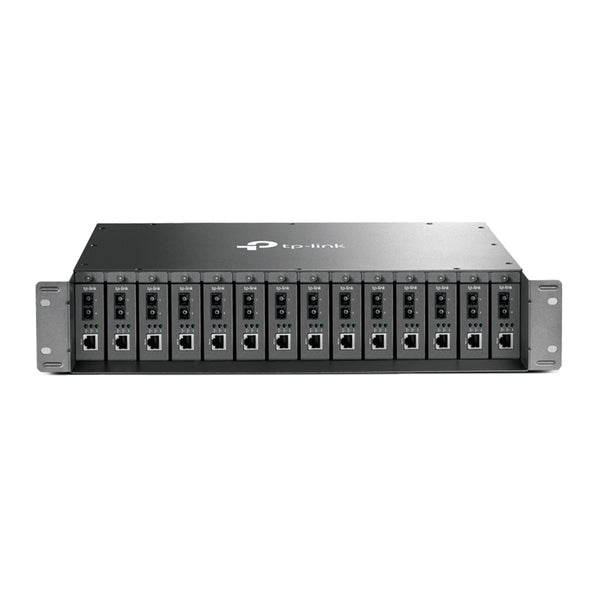

The TL-MC1400 14-Slot Rackmount Chassis is specially designed to accommodate 14 TP-Link‘s Media Converters for central power supply, saving space and power cables. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with MC series Gigabit / Fast Ethernet media converters, TL-MC1400 is the ideal solution for your media conversion network.
Features
Features
- 14 bays to House up to 14 Media Converters
- Optional Redundant Power Supply to Ensure Non-stop Reliable Operation
- Hot-swappable; Easy & Quick Replacement of Converter
- Mounted Two Cooling Fans for Better Ventilation
Specifications
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Fan Quantity | 2 | |
| Power Supply | 100-240 V AC~50/60 Hz | |
| Power Output | 14x9VDC | |
| Dimensions (W x D x H) | 19.0 x 12.2 x 3.4 in (482 x 309 x 86mm) | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% Non-condensing Storage Humidity:5%~90% Non-condensing | |
What's in the Box
- 1 - 14 Port/Slot 2U 19" Rackmount Media Converter Chassis
- 1 - Power Cord
- 14 - Blank Port/Slot Covers with Mounting Screws
- 14 - Media Converter Mounts with Attached Mounting Screws
- 1 - User Manual
