Description

16/4 FPLP Alarm Cable for Smoke Alarms and Detectors

The Shielded Plenum (FPLP) Fire Alarm Cable has four 16 gauge solid bare copper conductors including aluminum mylar shielding over the conductors. It is wrapped with a low smoke PVC red jacket. It is also equipped with a 24 gauge drain wire. The shielding provides protection against unwanted system noise. Footage markings in sequential order on the jacket help with the installation process, as you always know how much cable is remaining.

When lives are on the line you need to buy the highest quality fire alarm cables you can from a source that you can count on. We are a reputable name in the industry and supply only high quality products. Why do you need fire alarm cables? If a fire occurs you depend on the fire alarm system triggering the sprinklers in the building and set off the smoke alarms warning people to evacuating the premises.

Fire Alarm Applications

There are many uses for a fire alarm cable such as smoke alarms, smoke detectors, voice communications, microprocessor controlled systems, pull boxes (fire alarm signals), burglar alarms, and other low voltage applications. Fire alarm circuits control and power applications such as safety functions, elevator capture and shutdown, door release, and damper control.

Fire Alarm Cable Products

We offer a variety of shielded and unshielded Plenum, Non-Plenum and Riser fire alarm cables FPLP and FPLR, ranging from 18 AWG to 12 AWG solid bare copper conductors. These fire cables are flexible for easy installation. With our commitment to quality and dependability our cables are UL, ETL Listed and RoHS Compliant. Plenum rated fire cables means it can be run in the area between floors that is used as duct area or other air space. Plenum refers to the material used in the jacket of the cable burns less than non-plenum cables.

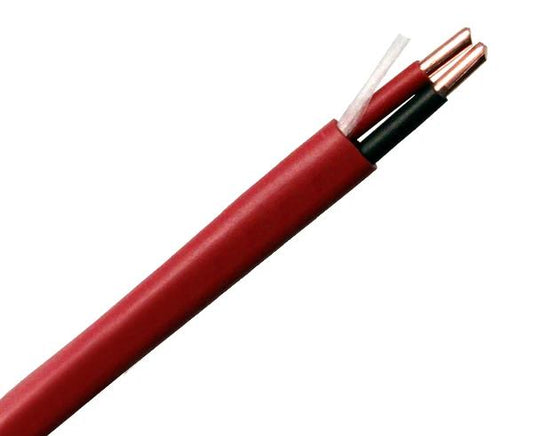

The Plenum (FPLP) Fire Alarm Cable has two 12 gauge solid bare copper conductors. This plenum FPLP fire alarm cable has a low smoke PVC jacket safe for installation through environmental airflow spaces. Sequential footage markings on the jacket help facilitate the installation process, as you always know how much cable is remaining.

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

Features

Features

Low smoke generating FT6 plenum rated PVC jacket
Sequential footage markings on jacket
Aluminum mylar shielding
UL Listed
ETL listed
RoHS Compliant
Voltage rating: 300V
24 gauge drain wire
Temperature rating: 75°C
Made in USA

Applications

Fire alarm wiring
Fire protection
Signals
Monitoring and detection systems
Audio circuits
Notifications circuits
Control circuits
Initiating circuits

Conductor Insulation Colors

Black
Red
Brown
Blue

Specifications

Specifications

Physical Construction
Inner Conductor	Solid Bare Copper
Conductor Size	16 AWG
Insulation	Low Smoke PVC (0.010 in.)
Nominal OD	5.21 mm (0.205 in.)
Outer Jacket thickness	.381mm (0.015in.)
Jacket	Low Smoke PVC
Jacket Color	Red
Number of Strands	SOL
Shielding	Aluminum with Mylar
Drain Wire	24 AWG

Electrical Characteristics
Temperature	75℃
Voltage Rating	300 V
Center Resistance	21.20 (&ohm;/km)
Color Mode	Black Red Brown Blue

Additional Information

Additional Information

To learn more about our Fire Alarm Bulk Cable here is a link to a page containing more information on our premium Fire Alarm Bulk Cable.

To learn more about our CMP Rated Cable here is a link to a page containing more information on our premium CMP Rated Cable.

What's in the Box

What's in the Box

Fire Alarm Cable (FPLP) Plenum Shielded,16/4 AWG Solid Bare Copper Conductors, Red PVC Jacket
Qty - (1) 1000 Ft
