Description
Description

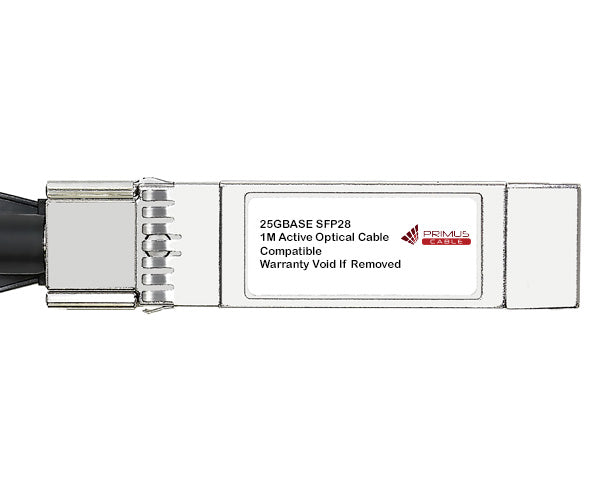

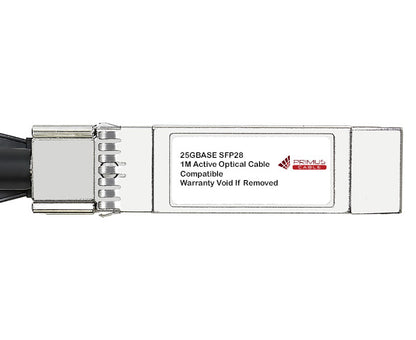

25G SFP28 Active Optical Cable
The product is programmed to be fully compatible and functional. These active optical cables are designed to meet the SFP28 25Gbs SFF-8431 specification. These cables use multimode fiber carrying an 850m nominal wavelength. The active optical SFP28 cable can provide connectivity upto for distances up to 70 meters.
Features
Features
- High Data Rate: Supports up to 25.78 GBd bi-directional data links.
- Hot-Pluggable: Features a hot-pluggable SFP+ footprint for easy installation.
- Extended Reach: Provides connectivity up to 70 meters.
- Integrated CDR: Includes a built-in Clock and Data Recovery (CDR) with shut-off control.
- Digital Diagnostics: Equipped with built-in digital diagnostic functions for monitoring performance.
- Low Power Consumption: Consumes less than 1W of power.
- Operating Temperature Range: Designed to operate within a temperature range of 0°C to 70°C.
Compliance
- Meets MSA SFF-8431
- RoHS Compliant
Applications
- Ideal for 10GBASE Ethernet connections.
- Suitable for Infiniband DDR and SDR applications.
- Supports 8GB Fibre Channel networks.
Specifications
Specifications
| Connector Type | SFP28 to SFP28 |
| Max Data Rate | 25GB |
| Fiber Type | OM3 LSZH (OFNR) Fiber |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 – 25 Gb/s SFP28 Active Optical Cable
