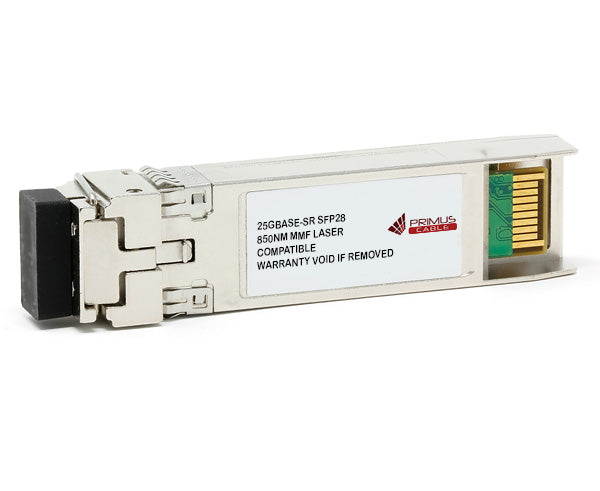

Reliable 25G SFP Module, 850 nm for Multimode Fiber
This SFP28 module is designed to be fully compatible and functional with its brand's own designated switching devices. It adheres to the 25G Ethernet IEEE 802.3by standard and complies with the SFP Multi-Source Agreement (MSA). Designed for use with multimode fiber, it operates at a nominal wavelength of 850 nm, ensuring reliable and efficient performance.
Features
Features
- Up to 25.78 Gbd bi-directional data links
- Hot-pluggable SFP28 footprint
- 850nm VCSEL laser transmitter
- Duplex LC connector
- Built-in digital diagnostic function
- Up to 100km over OM4 multimode fiber
- Single power supply 3.3v
- Max power consumption 1.2W
- Operating temperature ranges from 0°C to 70°C
Specification
Specification
| Form Factor | QSFP28 |
| Max Data Rate | 25Gbs GE |
| Wavelength | 850nm |
| Max Cable Distance | 100M over OM4 MMF, 70M over OM3 MMF, 66m over OM2 MMF, 33m over OM1 MMF |
| Connector | 1 X LC Duplex |
| DOM Support | YES |
| Power Supply | 1v |
| Operational Temperature Range | 0°Cto +70°C |
What's in the Box
What's in the Box
- Qty 1 – 25GBASE‑SR SFP28 Transceiver Module
