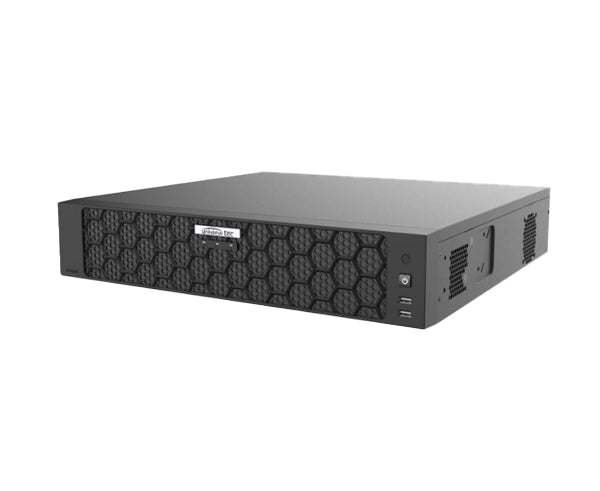

NR324IXPQ - 32ch NVR, 24-PoE, 32MP, 2 x NIC, 2 x HDMI, Intelligent Intrusion Analytics, 4 HDD bays
Elevate your security system with the Uniview 32-channel AI NVR featuring 24 built-in PoE ports and advanced AI capabilities. This powerhouse network video recorder supports stunning 32MP resolution recording with H.265 compression for efficient storage and bandwidth usage. With dual 4K HDMI outputs, concurrent independent displays, and support for up to 48TB of internal storage across 4 SATA drives, this NVR is built for professional surveillance deployments.
What sets this NVR apart is its cutting-edge AI features. Face detection and comparison, vehicle recognition, smart intrusion prevention, and ultra motion detection work seamlessly to enhance your security monitoring. The system supports up to 128 face libraries with 40,000 face pictures total, making it perfect for access control and identification applications. AI AcuSearch capabilities allow you to quickly find human bodies and motor vehicles in recorded footage.
Installation and operation are simple thanks to plug-and-play functionality with automatic device discovery. The 24 built-in PoE ports deliver up to 210W total power, eliminating the need for separate power supplies for your cameras. Network fault-tolerance, load balancing, and multi-access modes ensure reliable operation. Cloud-based firmware upgrades keep your system current, and mobile app support lets you monitor from anywhere.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 32-channel Network Recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- 24 Built-in PoE Ports Delivering Up to 210W Total Power (Max 30W Per Port)
- Supports Recording of up to 32MP Resolution Images
- Dual 4K HDMI Outputs with Independent Display Capability
- Support 2-ch HDMI, 2-ch VGA with Concurrent Independent or Simultaneous Output
- Easy Plug and Play Functionality with Automatic Device Discovery
- Supports 4 SATA HDDs up to 12TB Each for 48TB Total Storage
- RAID 0, 1, 5 Support for Data Protection
- AI Face Detection, Face Comparison, and Vehicle Detection by NVR
- Face Picture Library: Up to 128 Libraries with 40,000 Face Pictures Total
- AI Smart Intrusion Prevention (SIP) and Ultra Motion Detection (UMD)
- AI AcuSearch for Human Body and Motor Vehicle Detection
- Powerful VCA Search: Face Snapshot, Vehicle, Human Body, People Counting, Heat Map
- Temperature Detection: Fire Detection, Smoking Detection, Temperature Measurement
- Network Fault-Tolerance, Load Balance, and Multi-Access Working Modes
- Supports ONVIF Profile Series Compliant Third-Party Cameras
- Cloud Upgrade for NVR and Cameras with Automatic Firmware Detection
- Supported by Uniview Guard Station Client Software and Guard Viewer Mobile Apps
Specifications
Specifications
| Video & Audio Inputs | |
|---|---|
| IP Video Input | 32-ch |
| Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Outgoing Bandwidth | Smart Off：384Mbps Smart On：200Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP; P2P; NTP; DHCP; PPPoE; HTTP; HTTPS; DNS; DDNS; SNMP; SMTP; NFS; RTSP; 802.1x; IPv6; IPv4 |
| Supported Browsers | Windows IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Video & Audio Outputs | |
| HDMI / VGA Output | HDMI: 4K(3840x2160)/60Hz, 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Video Output | Support 2-ch HDMI, 2-ch VGA, HDMI1 and VGA1 simultaneous output, HDMI2 and VGA2 simultaneous output, HDMI1/VGA1 and HDMI2/VGA2 independent output |
| Recording Resolution | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Audio Output | 2-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 16-ch in local |
| Live view display | HDMI1 and VGA1: 1/4/6/8/9/16/25/32; HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Screen | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution |
| Records Capacity | 3 million records for face snapshot; 2 million records for vehicle snapshot; 2 million records for SIP |
| Decoding | |
| Decoding format | H.265, H.264 |
| Live view/Playback | 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Capability | Smart Off：2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30 Smart On：1 x 32MP@30, 3 x 16MP@30, 4 x 12MP@30, 6 x 4K@30, 8 x 6MP@30, 9 x 5MP@30, 12 x 4MP@30, 16 x 3MP@30 |
| Hard Disk Drives | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 12TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| Disk Array Type | RAID 0,1,5 |
| Smart Features | |
| VCA Detection by Camera | Face Detection; Face Comparison; Vehicle Detection; SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area); Ultra Motion Detection(UMD); Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection); People Counting(People Flow Counting, Crowd Density Monitoring); Video Metadata; Traffic Monitoring |
| Smart by NVR | Face detection; Face Comparison; Smart Intrusion Prevention (SIP); Ultra Motion Detection(UMD); AI AcuSearch(Human Body/Motor Vehicle) |
| VCA Search | Face Snapshot Search; Face Comparison Search; Motor Vehicle Search; Non-Motor Vehicle Search; Human Body Search; General Search; People Counting Report; Heat Map; SmartSearch+; AI AcuSearch |
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Face Picture Library | Up to 128 face libraries, with up to 40,000 face pictures in total Flow Counting, Crowd Density Monitoring |
| AI Face Comparison by NVR | 16-ch with face detecting cameras; 4-ch with normal cameras |
| AI Search by Image | Support |
| AI Smart Intrusion Prevention (SIP) by NVR | 8-ch |
| AI Ultra Motion Detection (UMD) by NVR | 16-ch |
| System Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording / Snapshot Abnormal, Array Damaged, Array Degraded |
| External Interface | |
| Network Interface | 2 x RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| POE Interface | 24 x RJ45 10M/100M self-adaptive Ethernet Interface; Max 30W for single port, Max 210W in total |
| Network Working Mode | Muli-access, load balance, network fault-tolerance |
| USB Interface | Front panel: 2 x USB2.0; Rear panel: 2 x USB3.0 |
| RS485 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12v |
| General | |
| Power Supply | AC 100~240V, Power Consumption ≤ 50W (without HDD)) |
| Working Environment | Temperature -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Rack Ears | Not Included |
| Dimensions (W × D × H) | 442mm × 432mm × 86mm (17.4"×17.0"×3.4") |
| Weight ( without HDD ) | ≤ 5.5Kg (12.1lb) |
| Certifications | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Additional Information
Additional Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
What's in the Box
What's in the Box
- Qty 1 - Uniview 32-Channel AI NVR with 24 Built-in PoE Ports
- Qty 1 - Power Adapter
- Qty 1 - Network Cable
- Qty 1 - USB Mouse
- Qty 1 - User Manual or Installation Guide
- Qty 1 - Protective Packaging (box or bag)
