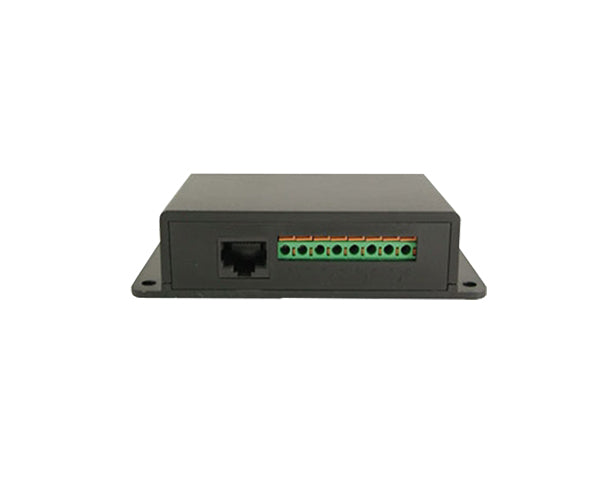

4 Channel Passive Video Transceiver
The 4 Channel Passive Video Transceiver enables cost-effective CCTV video transmission over Ethernet cable. Its integrated balun allows for the transmission of various video formats and audio signals via CAT5/5E/6 cable. Avoiding impedance variations between 75 Ohm CCTV video and 100 Ohm Ethernet transmission, this unit preserves full motion color or monochrome data during transmission. Capable of transmitting color video up to 1,500 meters and black and white up to 2,400 meters, it also features built-in alarm sensor, transient protection, ground lifting, and voltage mitigation. This passive device operates without requiring external power.
Features
Features
- Transmit CCTV Video Over CAT5/5E/6 Ethernet Cable
- Color Range of 1,500 Meters
- Black and White Signal Range of 2,400 Meters
- Accommodates VGA, RGB, YPbPr. YCbCr, S-Video, Composite Video, and Audio
- Integrated with Alarm Sensor
- Three Position Range Switch for Gain Select on Transmitter
- Five Position Distance Range Switch on Receiver
- Built-in Transient Protection and Ground Lifting
- Avoids Damage from Voltage Spikes
Specifications
Specifications
Video Receiver Specifications | |
|---|---|
| Video Input / Output | BNC - F type Connector |
| Video Input Signal | 1V p-p, 75 Ohms |
| Twisted Pair Cable | Cat5 UTP 4 Pair Cable |
| DC Input | DC 12V |
| Transmission Distance | 1,500m COLOR - 2,400m B/W |
What's in the Box
What's in the Box
- (1) - 4 Channel Passive Video Transceiver
