Description
Description

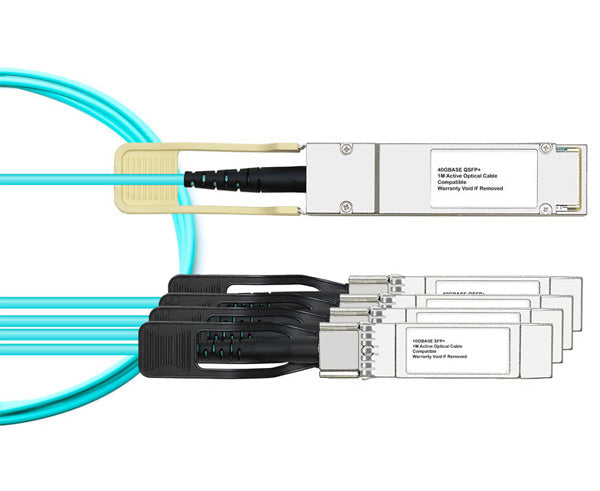

40G QSFP+ to 4x SFP+ Active Optical Cable
The product's direct-attach optical cables are based on the 10G and 40G Ethernet IEEE 802.3ae standard, support 4 lanes of 10Gbs (40Gbs composite), and are programmed to be fully compatible and functional with its brand's own designated switching devices. These cables use multimode fiber carrying a 850nm nominal wavelength. The active optical QSFP+ cable is a lightweight with a small diameter.
Features
Features
- 4 independent duplex 11.2 Gbps channels.
- Hot-Pluggable QSFP+ footprint
- Up to 100 meters
- AC-coupled inputs and outputs
- QSFP+ less than 1.5W power consumption
- SFP+ less than 1W power consumption
- Wide Operating temperature range of 0°C to +70°C
Compliance
- QSFP+ MSA
- SFP+ MSA
- RoHS Compliant
Applications
- Ideal for 10GBASE and 40GBase Ethernet connections.
- Suitable for Infiniband DDR and SDR applications.
- Supports 8GB Fibre Channel networks.
Specifications
Specifications
| Connector 1 | QSFP+ |
| Connector 2 | 4 x SFP |
| Max Data Rate | 25GB |
| Fiber Type | OM3 LSZH (OFNR) Fiber |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 – 40 Gb/s QSFP+ to 4×10 Gb/s SFP+ Active Optical Breakout Cable (with QSFP+ and SFP+ latching plugs)
