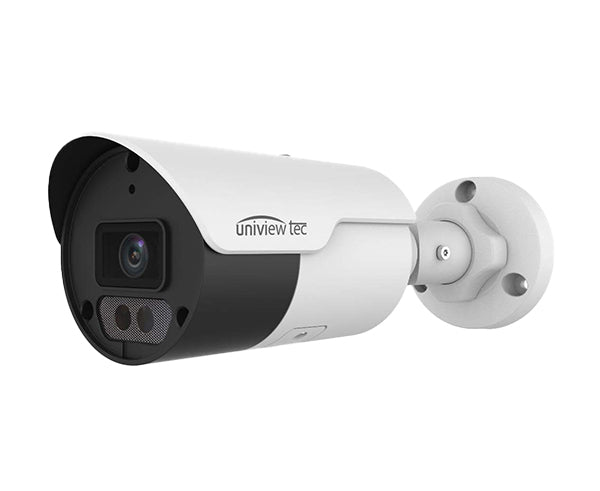

The Uniview Tec 8MP Easy Star Bullet Camera delivers superior surveillance with ultra-high color imaging, even in extreme low-light conditions down to 0.005 Lux, thanks to its Easy Star illumination technology. Featuring crisp 4K resolution, Smart IR LEDs for up to 164 feet of night vision, and advanced WDR for balanced lighting, this camera ensures clear footage in any environment. H.265 compression optimizes bandwidth and storage, while intelligent intrusion prevention minimizes false alarms by focusing on humans and vehicles. With PoE and 12VDC power options, a built-in microphone, local storage support up to 512GB, and durable IP67 weather resistance, it’s a reliable choice for both indoor and outdoor security. Seamlessly integrates with Uniview Tec Guard Station Software and mobile apps for iPhone and Android.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
Easy Star illumination technology ensures ultra-high color image up to 0.005 Lux (F1.6)
Exceptional Video Quality with 8MP (3840 x 2160) Resolution
Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
Powerful, Smart IR LED Lights for Nighttime Operation up to 164 Feet
ONVIF Profile S Compliant
TRUE Day/Night and WDR functionality for all Lighting Conditions
Dual Streams, Built-in mic, Digital Defog, Smart IR, and 3D DNR
Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
Built-in Micro-SD Card Slot enables local storage up to 512GB
3-Way Axis, IP67 Weather Resistant
Supported by Uniview tec Guard Station Software as well as Guard Live and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
CAMERA SPECIFICATIONS
Max Resolution
8MP
Sensor
1/2.8" CMOS
Minimum Illumination
Color: 0.005 lux (F1.6, AGC ON); 0 Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment Angle
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N
>52dB
WDR
120dB
LENS & FIELD OF VIEW
Focal Length
2.8mm
Field of View
H: 98.7°, V: 53.9°, D: 103.6°
DORI DISTANCE
Detect
86.9m (285.1ft)
Observe
34.8m (114.0ft)
Recognize
17.4m (57.0ft)
Identify
8.7m (28.5ft)
VIDEO & COMPRESSION
Video Compression
H.265, H.264, MJPEG
Frame Rate
Main: 8MP @ 20fps, Sub: 1080P @ 30fps
Video Bit Rate
128 Kbps ~ 16 Mbps
Video Stream
Dual Streams
AUDIO & STORAGE
Audio Compression
G.711U, G.711A
Storage
Micro SD up to 512 GB, Network Storage (NAS, ANR)
POWER & ENVIRONMENT
Power
DC 12V±25%, PoE, Max 6.9W
Operating Environment
-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH
Protection
IP67
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
