Description

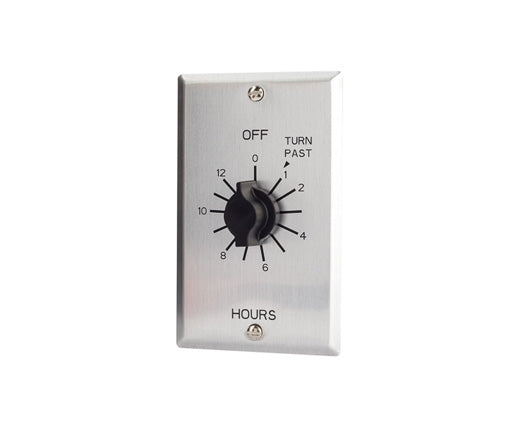

Commercial Auto OFF Springwound In-Wall Timer
Primus Cables Commercial style auto off springwound in-wall timers can be used for self-storage, ventilating fans, HVAC, whirlpools, motor and pumps.
Features
Features
- Variable Timing: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model.
- Hold Feature: Some models have position for constant ON.
- Easy-Set: No adjustments. Just wire and go!
- Easy Wiring: No neutral required. Great for retrofit!
- Switch Type: SPDT "2 in 1" contacts wire as SPST also, except C460M and C412H are DPST. Can wire normally on and countdown while off.
- Color: Metal-brushed aluminum.
- Wall Plate: Includes real metal wall plate with screw mounting, to add extra security for commercial applications.
- Caution: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc.).
Specifications
Specifications
- Input Voltage: 125/250/277VAC, 50/60Hz
- Terminal Range: #12AWG.
- Operating Temperature: 32 °F to +122 °F (0 °C to +50 °C).
| Part# | Hold Feature |
| NPNB-C412H | No Hold |
| NPNB-C460M | No Hold |
| NPNB-C502H | No Hold |
| NPNB-C506H | No Hold |
| NPNB-C512H | No Hold |
| NPNB-C512HH | With Hold |
| NPNB-C515M | No Hold |
| NPNB-C530M | No Hold |
| NPNB-C560M | No Hold |
| NPNB-C560MH | With Hold |
What's In The Box
What's In The Box
- Qty 1 - Commercial Auto OFF Springwound In-Wall Timer
