Humidity Sensor - H8800 Series

SKU: H8800R
Vendor
GRI
Regular price
$262.96
Sale price
$262.96
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
With Remote Probe
On Board Sensor

Description

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

Humidity Sensor

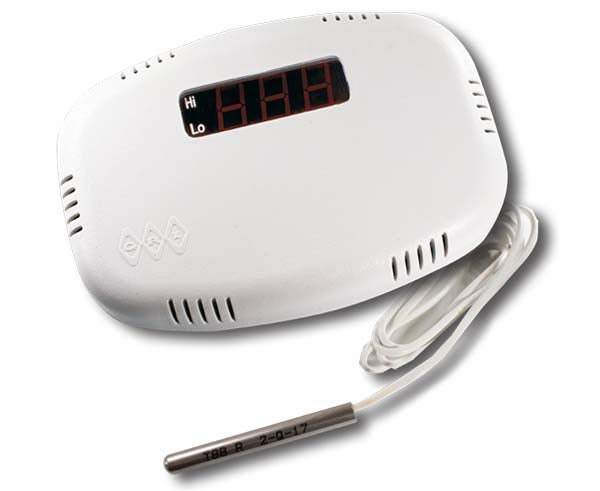

The Humidity Sensor is a single sensor programmable humidity monitoring security device. Unlike it’s 1st cousin, the T8800, used for temperature sensing, the H8800 has one sensor to detect and report relative humidity. The single humidity sensor is housed in the appliance (H8800) or it can be ordered with a remote probe (H8800R). The memory in the H8800 is non-volatile.

Connection

Connect DC power to terminals 1 (+) and 2 (-). Observe polarity. WARNING. If you are using a power supply other than the RTD/12 (GRI PN# 8065), be certain that the power is regulated. The use of unapproved power supplies will void the warranty.

There are two (2) jumpers in the H8800. JP1 is used to direct programming to the high/low limit humidity thresholds. JP1 has multiple pins for the jumper during set up. With the center pin used as the center of a clock, place the jumper at 12 o’clock to adjust the High Limit. Place the jumper at 6 o’clock to adjust the Low Limit. Placing the jumper at the 9 o’clock position is for standard operating of the device. The 3 o’clock position is NOT used in the field.

R18 - Low Limit adjustment.

R20 - High Limit adjustment.

Features

Features

  • Low Cost
  • Non-Volatile Memory
  • Single Sensor or a Remote Probe up to 500’
  • Min - Max Temperature Range No Probe - 10ºF to 176ºF
  • Min - Max Temperature Range With Probe - 40ºF to 185ºF
  • Operates with 7.5 VDC minimum to 15 VDC maximum
  • Made In U.S.A.

Specifications

Specifications


Installation Instructions

Installation Instructions

To open the H8800, insert a flat blade screwdriver between the cover and the back plate and twist the screwdriver to open the H8800. Mount the H8800 in the required location using the provided screws. Four holes have been pre-drilled on the back mounting plate for installation convenience. There also is a mounting pattern template provided with the printed instructions. Route wires to the device as necessary from behind the H8800. REMEMBER!!! It is important to avoid lights, motors, ballast transformers, fans and electromagnetic devices when routing and pulling wires to this device.
