Description

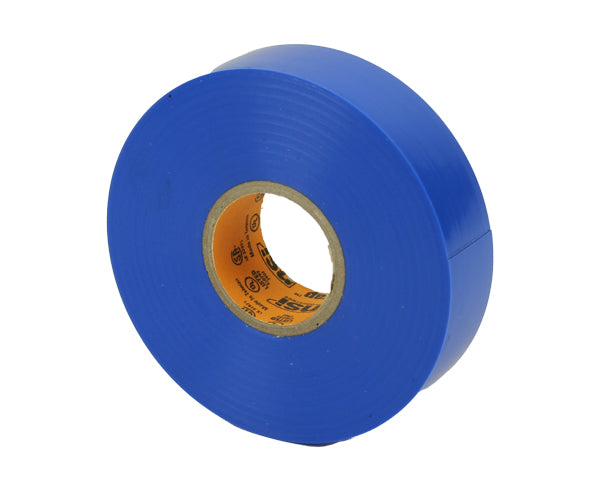

Warrior Wrap 7mil Select Vinyl Electrical Tape
Applications
- Used as primary insulation for wire and cable splices up to 600 volts
- Used for wire harnessing
- Used for jacketing on high voltage splices
Features
Features
- Excellent adhesion and elasticity
- All-weather performance
- High tensile strength
- Resistant to UV, abrasion, and corrosion
- Flame-retardant
Specifications
Specifications
- Thickness: .007”
- Width: ¾”
- Length: 60’
- Backing: Plasticized polyvinylchloride (PVC)
- Adhesive material: rubber-based
- Thickness 7 mil
- Adhesion to steel 22 oz/in
- Adhesion to backing 22 oz/in
- Tensile strength 17 lb/in
- Elongation 200%
- Operating temperature 20°F - 176°F
- Dielectric strength 1200 V/mil
- Certification UL
Additional Features
Storage Conditions
Product should be stored in humidity-controlled, dry conditions between 50°F and 73°F (10°C and 23°C). Relative humidity should be less than 65%.
Applicable Regulatory Standards
- UL Listed; UL Standard 510
