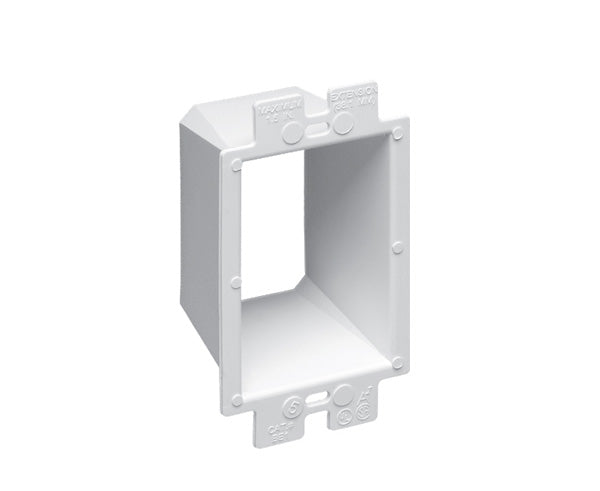

Drywall Mounting Bracket Box Extender
Our Drywall Mounting Box Extenders set back metal or non-metallic electrical boxes up to 1-1/2 inches. This product works with most steel and non-metallic outlet boxes, providing a level, fully supported wiring device that's flush with the wall surface. In steel boxes, they prevent arcing and shorting by creating a barrier between the box and device screws.
Features
Features
- Allows the contractor to comply with 2014 NEC Article 314.20
- Levels and supports the wiring device where the box is set back from the wall surface (adjusts up to a 1-1/2" box extension)
- Works in handy boxes and 4™ square electrical boxes with plaster rings for single switches or receptacle
- Functions with all standard devices, switches, and GFCIs
- Manufactured from 105™C continuous use 94V0 rated flame retardant plastic for safer installations (2 Hour Fire Rating)
Specifications
Specifications
| Part Number | Description | Dim A | Dim B | Dim C |
|---|---|---|---|---|
| BE1 | 1 Gang/White | 5.5 | 13.25 | 3.5 |
| BE2 | 2 Gang/White | 7.875 | 10.875 | 7.375 |
| BE3 | 3 Gang/White | 4.0625 | 10 | 6.0625 |
| BE4 | 4 Gang/White | 7.875 | 10.875 | 7.375 |
Installation Instructions:
What’s In The Box
What’s In The Box
- Qty 1 - Drywall Mounting Box Extenders
