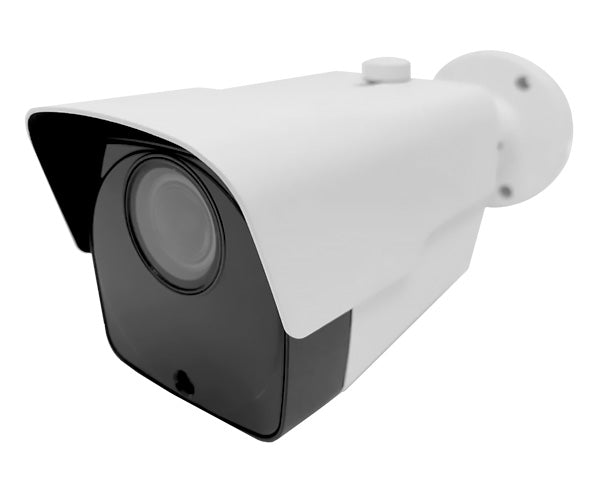

5MP Security Camera, Facial Recognition, High Definition Varifocal Lens IR
H.265 5MP Security Camera, 2.8-12mm Motorized Lens Varifocal IP66 IR Bullet Camera, PoE, 12VDC, BNC Output, SD Card Slot, Audio In/Out, Alarm In/Out, IR Up to 200ft, iPac AI Enabled with Facial Recognition System, NDAA Compliant.
Features
Features
- Image Sensor: 1/3" Progressive Scan CMOS
- Shutter: 1/5 ~ 1/20000s
- Lens: 2.8 – 12mm
- System Compatibility: ONVIF 2.4, RTSP
- Security: Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering
Specifications
Specifications
| Mechanical specifications | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | 0.01Lux @(F1.2,AGC ON), 0.028Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/5 s – 1/20,000 s |
| Lens Type | 2.8 – 12mm |
| Lens Mount | M12 / M14 |
| Day and Night | IR Cut Filter with Auto Switch |
| WDR | Wide Dynamic Range |
| Digital Noise Reduction | 2D / 3D DNR |
| Compression | |
|---|---|
| Video Compression | H.265 / H.264 / MJPEG ? H.265+ / H.264+ |
| Image Resolution | Up to 5MP (2560 X 1920) |
| Video Bit Rate | 256K-8M |
| Image | |
|---|---|
| Frame Rate | 5MP (2560 X 1920) @ 20fps, 4MP (2592 X 1520) @ 20fps, 3MP (2048 x 1536) @ 30fps, 1080P (1920 x 1080) @ 30fps, 720P (1280 x 720) @ 30fps - 960H (1280 x 960), Substream @ 30 fps, D1 (704 x 480) - VGA (640 x 480) - QVGA (320 x 240) @30 fps, Mobilestream @ 10 fps, QVGA (320 X 240) - @1-30 fps, (1920 x 1080) @30fps |
| Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness, and adjustable browser |
| Day and Night Switch | Auto / Schedule / Triggered by Alarm In |
| Interface | |
|---|---|
| System Compatibility | ONVIF 2.4, RTSP |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | Up to 100 ft. |
| POE | Built-In POE |
| Security | Flash-Prevention, Dual Stream, Heartbeat, Mirror, Password Protection, Privacy Mask, IP Address Filtering |
| Video Analytics | Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection; Cross and People Counting; Camera obstruction; Region of interest. DEEP LEARNING: Face Detection / Face Recognition / Human detection / Vehicle detection |
| Electrical | |
|---|---|
| Power Supply | 12 VDC ± 10%, POE (802.3af) |
| Power Consumption | Max. 5 W (Max. 7W with IR cut filter on) |
| Operating Temp. | -22 °F - 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
|---|---|
| Dimensions | 9.3" x 2.9" x 4" |
| Net Weight | 1.43 lbs. |
| Weather-Rating | IP67 Rated |
What’s In The Box
What’s In The Box
- Qty 1 - Facial Recognition 5MP High Definition Varifocal Lens IR
