Description
Description

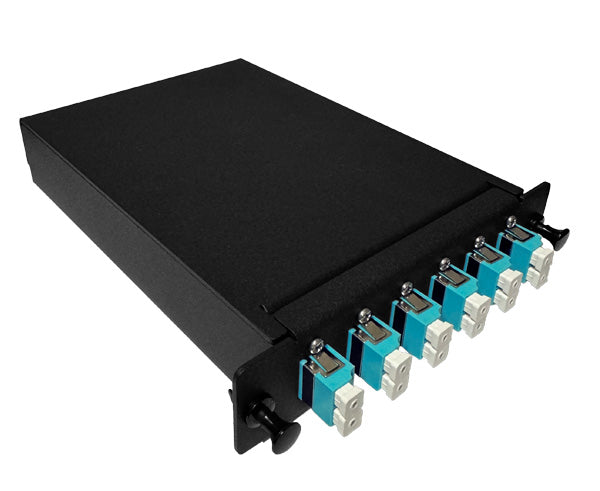

Fully loaded fiber cassette with 12 LC/UPC Multimode OM4 connections, integrated patch and splice capabilities, adapter plate, and pigtails, designed for LGX compatibility.
Applications:
- Data Centers
- Server Connectivity
- Link Aggregation
- Fiber Optic Network Infrastructure
Features
Features
- Easy installation
- Small size
- LGX Compatible
- Push pin locking
- Easy to remove the cover and splice the fiber
- Preterminated Pigtails
Specifications
Specifications
Width: 5.12" (130mm)
Height: 1.18" (30mm)
Depth: 6.06" (154mm)
| Fiber Splice Cassette | |||
| SKU | FB36-6153R3 | FB36-6260R6 | FB36-6386R12 |
| Unit Size | 1U | 2U | 4U |
| Dimension | 1.75” x 17” x 14” | 3.50” x 17” x 14” | 6.93” x 17” x 14” |
| Panel Material | 16 Gauge Steel | 16 Gauge Steel | 16 Gauge SPCC Steel |
| Panel Capacity | 3 LGX Adaptor Panels | 6 LGX Adaptor Panels | 12 LGX Adaptor Panels |
| Max. Fiber Count | 72 Fibers | 144 Fibers | 288 Fibers |
| Accessibility | Slide out tray | Slide out tray | Slide out tray |
| Integrated Cable Management | ✓ | ✓ | ✓ |
| Slack Management Spool | — | ✓ | ✓ |
| Pre-Termination Option | ✓ | ✓ | ✓ |
| Compatible With | FB43-1541-12FLS FB43-1540-12FLM4 | FB43-1541-12FLS FB43-1540-12FLM4 | FB43-1541-12FLS FB43-1540-12FLM4 |
What's in the box
What's in the box
- Qty 1 - Fiber Cassette Patch & Splice, Adapter Plate & Pigtails, Fully Loaded
- Qty 1 -Fiber Optic Protective Sleeves
