Fiber Optic Patch Cable, ST-ST, 10 Gig Multimode 50/125 OM3, Duplex

SKU: FB3-4322-ST/ST-1M
Vendor
Primus Cable
Regular price
$9.56
Sale price
$9.56
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more
1 Meter
2 Meter
3 Meter
5 Meter
7 Meter
10 Meter
15 Meter

Description

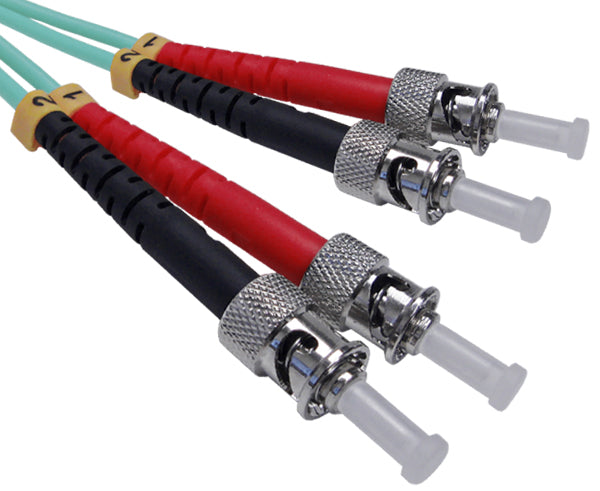

Fiber Patch Cable 10 Gig Multimode 50/125 OM3 Duplex with ST-ST Connectors

These high speed 10 gig multimode 50/125µm duplex fiber optic patch cables are terminated with ST fiber optic connectors on both ends (ST-ST). Straight Tip ("ST") connectors utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.

Our extensive range of fiber patch cables are terminated with state-of-the-art connectors, which are available in any combination of ST, SC, FC, and LC with PC, UPC or APC polish types to meet your standard or custom configurations. Our fiber jumpers have been geometrically inspected with interferometers and tested with automated insertion loss and reflection test equipment to ensure exceptional performance.

Features

Features

  • 10G Multimode, 50/125 OM3
  • Duplex fiber
  • PC polish type
  • Twist-on and twist-off ST connector for easy installation.
  • UL Listed in Canada and the US; RoHS Compliant
  • Available in custom lengths and colors™call for more info.

Specifications

Specifications

Additional Information

Additional Information

Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.

Your patch cable selection is important to the type of fiber optic network you are working on. Some are ideal for single mode, while others might be the right for a Multimode installation. Another factor to consider is polish type when using single mode cables.

Connector Type Abbreviations:

SC - a snap-in style connector. Known for its excellent performance. Referred to as Subscriber Connectors, Square Connectors or Standard Connectors.

ST - a very popular choice connector for Multimode networks. Also referred to as Straight Tip connectors, they utilize a bayonet-style coupling type, enabling a simple twist-on and twist-off installation.

FC - was at one time the most popular single mode connector type, but is now typically being replaced by SC and LC connectors. Also known as Ferrule Connectors, they utilize a screw-on coupling type to be used in high-vibration environments and are commonly used for datacom, telecom, measurement equipment and single-mode lasers.

LC - a small form factor connector—measuring half the size of an SC connector. This is a popular choice for single mode cables. Also referred to as Lucent Connectors, Little Connectors or Local Connectors, these snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

Polish Type Abbreviations:

Note: The polish type affects the amount of back reflection, also known as reflectance.

PC - Physical Contact. Polished to create a slight dome at the end of the ferrule that helps to maximize the signal being transmitted.

UPC - Ultra Physical Contact. More extensive polishing than the PC type, a greater dome shape is created that further help to maximize the signal being transmitted.

APC - Angled Physical Contact. Polished at an angle rather than a dome shape. This is the most efficient polish type.
