RG6 Coaxial Cable, CATV Direct Burial Quad Shielded, 18 AWG CCS, 60% AL Braid + Foil / 40% AL Braid + Foil, 1000ft, Black

SKU: CC-3032BK-6QD
Vendor
Primus Cable
Regular price
$119.00
Sale price
$119.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more

Description

RG6 Quad Shield DB Coax Cable with 18AWG CCS Conductor for Outdoor Applications

Our RG6 Coaxial Cable is frequently employed in the installation of satellite, digital CATV, and HDTV television networking due to its higher level of shielding for optimal signal retention. Distinguished by a denser jacket and a thicker conductor compared to RG59, the RG6 coaxial cable facilitates data transfer at twice the speed. We supply RG6 dual shield and quad shield cable to maximize signal retention resulting in sharper and clearer digital images. The RG6 Coaxial Cable is designed with a 75-ohm impedance and is sweep-tested at 3GHz.

This cable is compatible with our CN3-1594-59 BNC RG59 and CN2-7887-RG6 F-Type RG6 Connectors.

Applications

Coaxial Cable is used to transmit radio frequency energy. The advantage of coaxial is that the electromagnetic field carrying the signal occurs only in the space between the inner and outer conductors. With that said, it allows the cable to be installed next to metal objects without power loss. Coaxial Cable also provides protection of the signal from external electromagnetic interference. Coaxial Cables connects radio transmitters and receivers to their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. This makes RG6 cable an ideal solution for coax cable for internet usage.

Product Quality

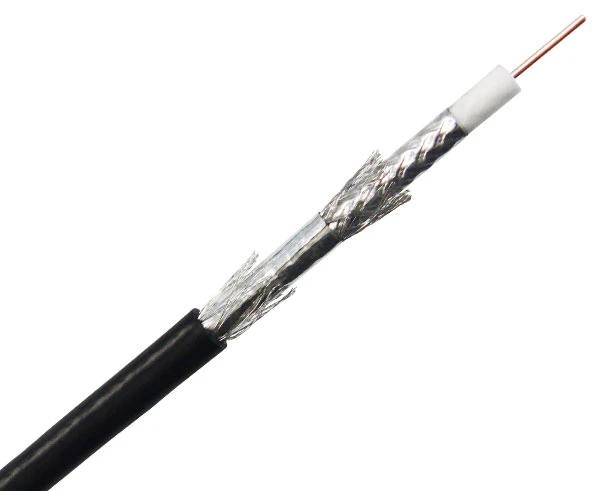

Our high-quality RG6 CATV Quad Shield Direct Burial Coaxial Cable consists of an 18 AWG solid Copper Clad Steel (CCS) inner conductor that transmits the signal. It is wrapped in dielectric polyethylene insulation. This RG6 coaxial cable comes with 100% Foil + 60% aluminum wire braided shield / 100% Foil + 40% aluminum wire braided shield. This is covered with a flame-rated PE jacket (CM).

Where to use Plenum Coaxial Cable

Our RG6 Direct Burial Coaxial Cable is made for outdoor Cable Television (CATV), audio/video networking applications, digital HDTV applications, CATV, outdoor and direct burial TV antennas, and digital satellite installations. The cable's jacket is designated CL2 for outdoor coaxial cable used for networking projects like outdoor CCTV systems require cable with adequate jacketing and insulation to handle moisture and sun exposure. The RG6 Coaxial Cable tops out at 75 ohms and does not keep a high Gigahertz.

Features

Features

  • High-Grade RG6/U Coaxial Cable
  • Suitable for Digital HDTV/Satellite, CATV,
    Outdoor/Direct Burial TV Antennas, and Audio/Video
  • Sweep- Tested to 3.0 GHz.
  • 75 Ohm
  • 18 AWG Solid Copper Clad Steel Conductor
  • 100% AL Foil + 60% AL Wire Braid
    100% AL Foil + 40% AL Wire Braid
  • Quad Shielded
  • Polyethylene (PE) & UV Resistant Outer Jacket
  • UL-Listed
  • Supplied 1,000' on Wooden Spool, Black

Specifications


Specifications

Physical Characteristics

Conductor Size 18 AWG
Conductor Material Solid Copper Clad Steel (CCS)
Dielectric Material Foam
Quad Shielding 100% Bonded Aluminum Foil +
60% Aluminum Wire Braiding
Aluminum Foil +
40% Aluminum Wire Braiding
Outer Jacket Material PE & UV Resistance

Electrical Characteristics

Nominal Impedance 75 Ohm
Nominal Velocity of Propagation 83%
Nominal Capacitance 16.2 Pf/ft
Nominal Conductor DC Resistance DCR @ 20°C 102 Ohms/km
Maximum Operating Voltage-UL 350 VRMS

Mechanical Characteristics

Storage Temperature Range N/A
Installation Temperature Range N/A
Operating Temperature Range -30°C to +60°C
Maximum Recommended Pulling Tension 110lbs.

Additional Information

Additional Information


To learn more about our RG6 Bulk Outdoor Coaxial Cable here is a link to a page containing more information on our premium Outdoor Cable.

What's in the Box

What's in the Box

  • RG6 Direct Burial Quad Shielded Coaxial Cable, 18 AWG CCS, 60%/40% AL Braid
  • 1,000' on Wooden Spool, Black
