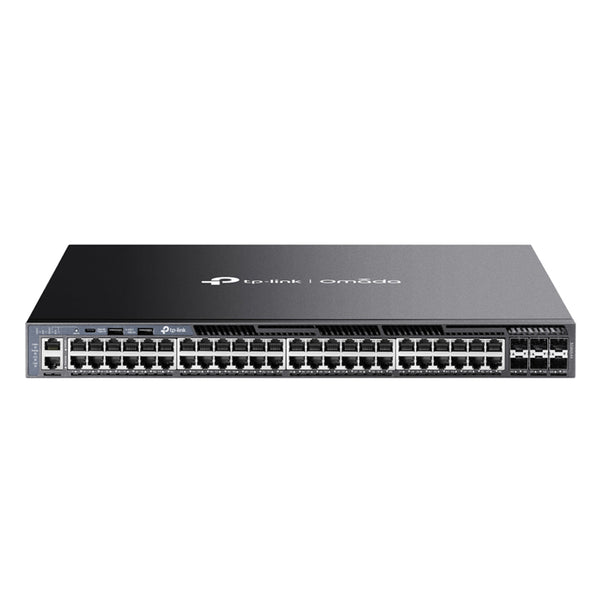

Omada 48-Port Gigabit Stackable L3 Managed Switch with 6 10G Slots
What This Product Does.
Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 8 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 8 Capacities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.
Features
Features
- 48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking up to 8 units for built-in redundancy and performance**
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Specifications
Specifications
| HARDWARE FEATURES | ||
|---|---|---|
| Interface | • 48× 10/100/1000 Mbps RJ45 Ports • 6× 10G SFP+ Slots • 2× USB 2.0 Ports • 1× RJ45 Console Port • 1× USB Type-C Console Port • 1× RJ45 Management Port | |
| Fan Quantity | Four Internal Fixed Fans | |
| Power Supply | Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz) | |
| Dimensions (W x D x H) | 17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm) | |
| Mounting | Rack Mountable | |
| Max Power Consumption | 39.8 W (220 V/50 Hz) | |
| Max Heat Dissipation | 135.81 BTU/hr (220 V/50 Hz) | |
| PERFORMANCE | ||
|---|---|---|
| Switching Capacity | 216 Gbps per Unit | |
| Stacking | • Stacking Number: 8 • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) • Stack Bandwidth: Up to 120 Gbps (6 stack ports) | |
| Packet Forwarding Rate | 160.7 Mpps | |
| MAC Address Table | 32 K | |
| Packet Buffer Memory | 3 MB | |
| Jumbo Frame | 9 KB | |
| GENERAL | ||
|---|---|---|
| Package Contents | • SG6654X Switch • 2× Power Cords • RJ45 Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. | |
| Environment | • Operating Temperature: -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters • Storage Temperature: -40 °C to 70℃ (-40℉ to 158℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing | |
What's In The Box
What's In The Box
- SG6654X Switch
- 2× Power Cords
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
