Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-LC/APC | FLC-1007
SKU: FLC-1007
Vendor
Jonard Tools
Regular price
$262.95
Sale price
$262.95
Regular price
$0
SaleSold out
Unit price
Quantity must be 1 or more
Description
Description

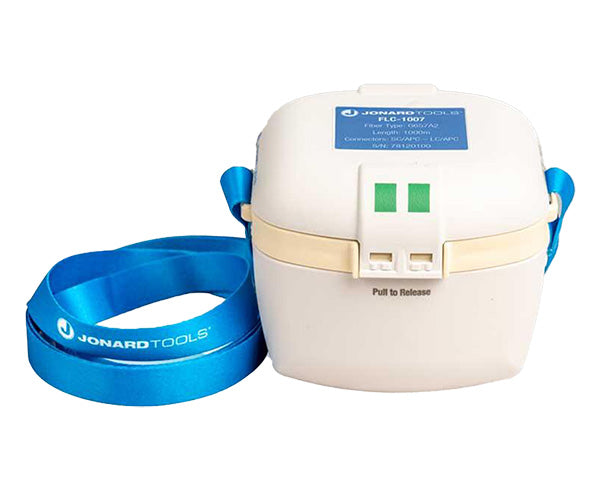

Singlemode Fiber Optic Launch Cable, 1000 m, SC/APC-LC/APC
Designed with unique compact housing and 1000 meters of fiber, this launch cable is perfect for eliminating dead zones in reflectometric tests using an OTDR.
Features
Features
Compact housing and shoulder strap make this perfect for on-the-go use
6.56 ft (2 m) long pigtails are terminated with an SC/APC connector on one side and an LC/APC connector on the other side for versatility
Polishing types are color coded for quick and easy identification of the launch cable
Convenient magnet on bottom of housing allows for quick and easy mounting to fiber racks
3281 ft (1000 m) length of fiber is perfect for most OTDR testing applications
Specifications
Specifications
PRODUCT SPECIFICATIONS
Cable Length
3280.24 ft (1000 m)
Connector Types
SC/UPC, LC/APC
Input/Output Length
4.9 ft (1.5 m)
Max Insertion Loss @ 1310 nm
≤ 0.35 dB/km
Max Insertion Loss @ 1550 nm
≤ 0.22 dB/km
Max Insertion Loss @ 800 nm
≤ 2.50 dB/km
Max Insertion Loss @ 1300 nm
≤ 0.70 dB/km
SM Connector Insertion Loss
≤ 0.1 dB
MM Connector Insertion Loss
≤ 0.15 dB
Return Loss
RL ≥ 65 dB (APC); RL ≥ 55 dB (UPC)
Fiber Type
G657A2
Dimensions
4.25 in x 4.15 in x 3.4 in (10.8 cm x 10.54 cm x 8.64 cm)
