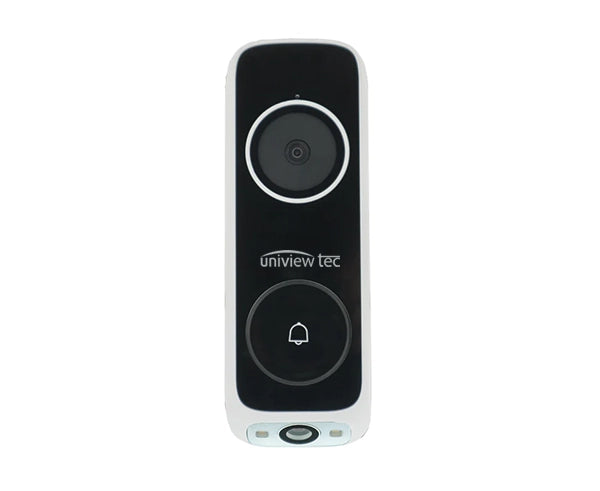

Uniview Tec 3MP + 2MP Dual-Lens Video Doorbell
This professional dual-lens video doorbell delivers exceptional surveillance coverage with advanced AI capabilities and flexible connectivity options. Featuring a premium 3MP main camera with 116° horizontal field of view and 2MP sub camera with 96.8° horizontal coverage, this doorbell provides comprehensive visitor monitoring from head to package level. The powerful H.265 compression dramatically reduces bandwidth and storage requirements while maintaining exceptional video quality at 2048 x 1536 and 1920 x 1080 resolutions. Advanced AI features including human body detection, package detection, and motion detection provide intelligent security analysis. With dual illumination including IR LED for nighttime operation up to 16 feet and white lights up to 6.5 feet, dual-band Wi-Fi connectivity, Sub-1G support for up to 3 wireless chimes, and IP65 weatherproof protection, this video doorbell offers an ideal solution for professional residential and commercial installations requiring comprehensive visitor monitoring with intelligent detection capabilities.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 3MP, 2048 x 1536 and 2MP, 1920 x 1080 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- IR LED for 0 Lux Nighttime Operation up to 16 Feet, White Lights up to 6.5 Feet
- Supports Wi-Fi and Bluetooth; ONVIF Profile S Compliant
- Dual Camera, Dual Video Streams, Built-in mic and Speaker
- Wireless (optional accessory) and mechanical chime support
- Motion Detection, Human Body Detection, and Package Detection
- 12VAC to 24VAC Power and 240mAH Battery, Built-in 8GB eMMC storage
- IP65 Weather Resistant Housing with anti-tamper button
- Supported by uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications
Specifications
| Camera | |
|---|---|
| Resolution -- main camera | 3 MP |
| Resolution -- sub camera | 2 MP |
| FOV -- main camera | Horizontal: 116°; Vertical: 82.5°; Diagonal: 131° |
| FOV -- sub camera | Horizontal: 96.8°; Vertical: 52.6°; Diagonal: 109.9° |
| WDR | DWDR; 80dB Main Camera; 58dB Sub Camera |
| Power Kits | |
| power kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
| Charge temperature | 0 °C to 45 °C |
| Alarm Event | |
| Motion detection alarm | Support |
| UMD alarm | Supports human body detection alarm |
| Package detection alarm | Support |
| Wi-Fi | |
| Operating frequency band | 2.4 GHz and 5G Hz |
| BLE function | Compatible, integrated BLE, supports network connection via Bluetooth |
| Antenna type | Built-in omnidirectional antenna |
| WLAN | 802.11 b/g/n/ax |
| Encryption | WPA-PSK/WPA2-PSK/WPA3-personal |
| Bluetooth | Support, integrated in Wi-Fi chip |
| Sub-1G | |
| SUB-1G | Supported, for chime connection, Max. 3 wireless chimes or 1 mechanical chime |
| Interface | |
| Anti-tamper button | Support |
| Built-in Mic | Support |
| Built-in speaker | Support |
| Audio | 128Kbps bit rate; 8K Sampling Rate; G711, MP3,PCM Compression |
| Illuminator | |
| Illumination scheme | IR + white light |
| Illumination distance | IR: 5 meters; White light: 2 meters |
| Network | |
| Protocols | IPv4; ARP; TCP; UDP; DHCP; RTP; RTSP; DNS; NTP; HTTP; HTTPS; SSL/TLS; 802.1x |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T) |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| Client | Guard Live, Guard Viewer, Guard Station |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| General | |
| Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
| Weight | Net weight: 142g; Gross weight: 295g |
| Power consumption | 10W |
| Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
| Button | One call button |
| Power source | Contact: AC 12 V to 24 V; 1 Amp Required |
| Operating temperature | -30 °C to 60 °C |
| Certification | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1) |
| Protection | IP65 (IEC 60529) |
Additional Information
Additional Information
Additional Product Information
This professional dual-lens video doorbell features exceptional 3MP main camera and 2MP sub camera providing comprehensive coverage from head to package level with H.265 compression for efficient bandwidth usage. The advanced AI capabilities including human body detection and package detection combined with dual illumination ensure reliable visitor monitoring day and night. With dual-band Wi-Fi, Sub-1G support for multiple chimes, and IP65 weatherproof protection, this video doorbell is ideal for professional installations requiring comprehensive intelligent visitor monitoring with flexible connectivity options.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 3MP + 2MP Dual-Lens Video Doorbell (IPDB324X)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
