Description
This product is intended to be purchased by installers only
Description
Description

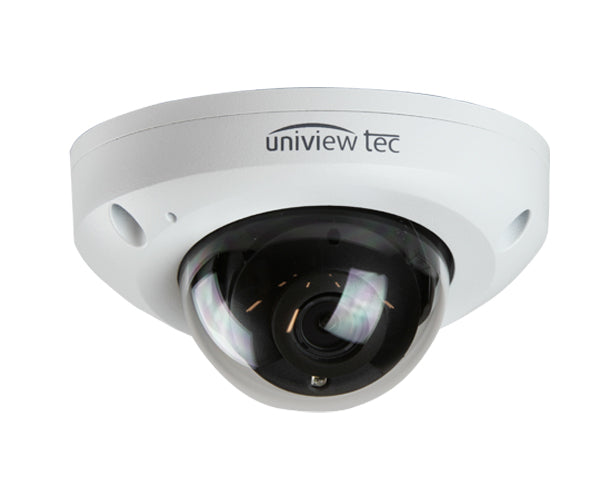

Uniview Tec 4MP LightHunter WDR IR Low Profile Vandal Dome Camera
This professional 4MP low profile vandal dome camera delivers exceptional surveillance performance with LightHunter technology for superior low-light imaging. Featuring a high-performance 1/3" CMOS sensor with F1.6 iris and 2.8mm fixed lens, this camera provides clear imaging down to 0.003 lux with wide 101.1° horizontal coverage. The powerful 120dB WDR and 30m IR illumination ensure optimal image quality in challenging lighting conditions, while advanced Smart Intrusion Prevention with cross-line, intrusion, and enter/leave area detection provides intelligent security analysis. With ultra-compact low profile design at only 61mm height, robust IP67/IK10 construction, and cable-free installation capability, this vandal-resistant dome camera offers an ideal balance of performance, durability, and discreet mounting for professional indoor and outdoor surveillance installations requiring reliable security monitoring with minimal visual impact.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- LightHunter Technology for ultra-high quality color video images in low light applications
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
- 2.8mm fixed lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Corridor View, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- Triple Video Streams and ONVIF Profile S Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics
- 3-Axis adjustments; Optional Mounts; PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- IP66 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
- Supported by uniview tec Guard Station Software and Guard Viewer Mobile App's for iPhone and Android Devices
Specifications
Specifications
| Camera | |
|---|---|
| Sensor | 1/3", progressive scan , 4 megapixel, CMOS |
| Lens | 2.8mm @ F1.6 |
| Angle of View (H x V) | 101.1° x 55.3° |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 30m (98ft) IR range |
| Video | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main: 4MP (2688 x 1520) @ 30fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 x 576) @ 30fps |
| Image Enhancement | |
| HLC, BLC, 9:16 Corridor, Defog | Supported |
| OSD, Privacy Mask, Motion Detection & ROI | Up to 8 areas |
| Smart Features | |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Storage & Network | |
| Local Storage | Micro-SD, up to 256GB |
| Network Storage | Automatic Network Replenishment (ANR) |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, T, G), API |
| Audio | |
| Audio I/O & Compression | 1 / 1, w/ built-in Mic; G.711 Compression |
| General | |
| Power | 12VDC +/-25%, PoE (IEEE802.3 af); Power consumption: Max 6W |
| Dimensions (Ø x H) & Weight | Φ110 x 61 mm (Ø4.3" x 2.4"); 0.37kg (0.82lb) |
| Operating Temperature & Humidity | -30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing) |
Additional Information
Additional Information
Compatible Accessories
This vandal dome camera is compatible with the following accessories
Additional Product Information
This professional low profile vandal dome camera features LightHunter technology for exceptional low-light performance down to 0.003 lux with 120dB WDR capabilities. The ultra-compact design at only 61mm height with cable-free installation provides discreet mounting while maintaining superior IP67/IK10 protection. Enhanced with Smart Intrusion Prevention including cross-line, intrusion, and enter/leave area detection, this camera delivers intelligent security monitoring with minimal visual impact for demanding professional installations.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4MP LightHunter Low Profile Vandal Dome Camera (IPVLP428X)
- Qty 1 – Mounting bracket and hardware
- Qty 1 – Waterproof connector
- Qty 1 – Reset tool
- Qty 1 – Quick Start Guide
- Qty 1 – Warranty card or document
