Uniview Tec - 4MP, WDR, AI, IR, VANDAL DOME

SKU: IPV4ES28X
Uniview
$369.00
$369.00
$0
Sold out
Quantity must be 1 or more

Description

This product is intended to be purchased by installers only

Description

Description

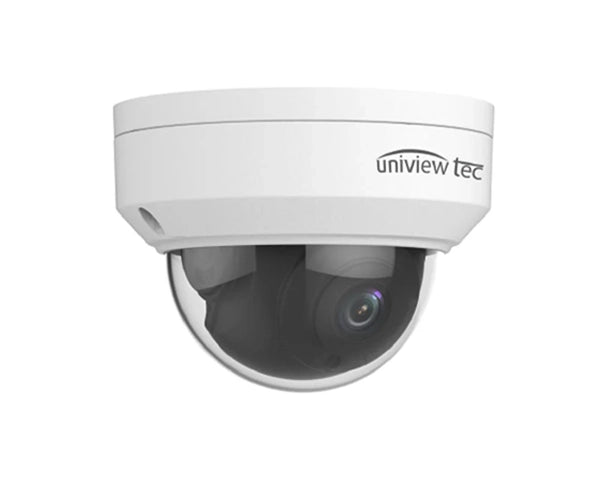

Uniview Tec 4MP Easy Star WDR AI IR Vandal Dome Camera

This professional 4MP vandal dome camera delivers exceptional surveillance performance with Easy Star technology and advanced AI capabilities for cost-effective security monitoring. Featuring a high-performance 1/3" CMOS sensor with F1.6 iris and 2.8mm fixed lens, this camera provides clear imaging down to 0.003 lux with wide 97.0° horizontal coverage. The powerful 120dB WDR and 30m IR illumination ensure optimal image quality in challenging lighting conditions, while advanced AI features including human body detection for cross line and intrusion monitoring provide intelligent security analysis. With compact vandal-resistant design at Φ111 × 83mm and lightweight construction at only 0.35kg, this IP67/IK10-rated dome camera offers an ideal balance of performance, durability, and affordability for professional indoor and outdoor surveillance installations requiring reliable vandal-resistant security monitoring.

Features

Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Easy Star Illumination technology ensures color image up to 0.003 Lux (F1.6, AGC ON)
  • Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0 Lux Nighttime Operation up to 131 Feet
  • 2.8mm Fixed Lens; ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Dual Video Streams, Built-in mic, Digital Defog and 3D DNR
  • Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 256GB
  • 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Housing
  • Supported by uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App's for iPhone and Android Devices

Specifications

Specifications

Camera
Max Resolution 4MP
Sensor 1/3" CMOS
Minimum Illumination Color: 0.003 lux ( F1.6, AGC ON); 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
S/N >52dB
WDR 120dB
Lens
Focal Length 2.8 mm
Iris Type Fixed
Iris F1.6
Field of View (H) 97.0°
Field of View (V) 52.2°
Field of View (D) 107.5°
DORI Analysis
DORI Distance(Lens) 2.8mm
DORI Distance(Detect) 63.0m(206.7ft)
DORI Distance(Observe) 25.2m(82.7ft)
DORI Distance(Recognize) 12.6m(41.3ft)
DORI Distance(Identify) 6.3m(20.7ft)
Illuminator
Supplemental Light IR
Illumination Distance(IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video
Video Compression H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main: 4MP (2688*1520) @25fps; 4MP (2560*1440) @25fps; 3MP (2304*1296) @30fps; 1080P (1920*1080) @30fps; 720P (1280*720) @30fps
Sub: 720P (1280*720) @30fps; D1 (720*576) @30fps; 640*360 @30fps
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD, Privacy Mask Up to 4
ROI Up to 8
Video Stream Dual Streams
Image Enhancement
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise
HLC Support
BLC Support
Defog Digital Defog
Events & Detection
Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
Audio
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Sampling Rate 8 KHz
Built-in Mic Support
Storage & Network
Edge Storage Micro SD, up to 256 GB
Network Storage ANR; NAS (NFS)
Network 1 x RJ45 10M/100M Base-TX Ethernet
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client Guard Live, Guard Viewer, Guard Station
Certifications
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection IK10 (IEC 62262), IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Interface Ø 5.5 mm coaxial power plug
Dimensions Φ111 x 83mm (Φ4.4" x 3.3")
Weight 0.35kg (0.77lb)
Material Metal + Plastic
Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support

Additional Information

Additional Information

Compatible Accessories

This vandal dome camera is compatible with the following accessories

Additional Product Information

This efficient 4MP vandal dome camera features Easy Star technology for cost-effective surveillance monitoring with excellent low-light performance down to 0.003 lux. The advanced human body detection with cross line and intrusion monitoring provides intelligent security analysis while maintaining exceptional image quality with 120dB WDR capabilities. The compact vandal-resistant design at only Φ111 × 83mm with lightweight 0.35kg construction makes this camera ideal for professional indoor and outdoor installations requiring reliable vandal-resistant security monitoring at an affordable price point.

What's in the Box

What's in the Box

  • Qty 1 – Uniview Tec 4MP Easy Star WDR AI IR Vandal Dome Camera (IPV4ES28X)
  • Qty 1 – Mounting bracket and hardware
  • Qty 1 – Waterproof connector
  • Qty 1 – Reset tool
  • Qty 1 – Quick Start Guide
  • Qty 1 – Warranty card or document
