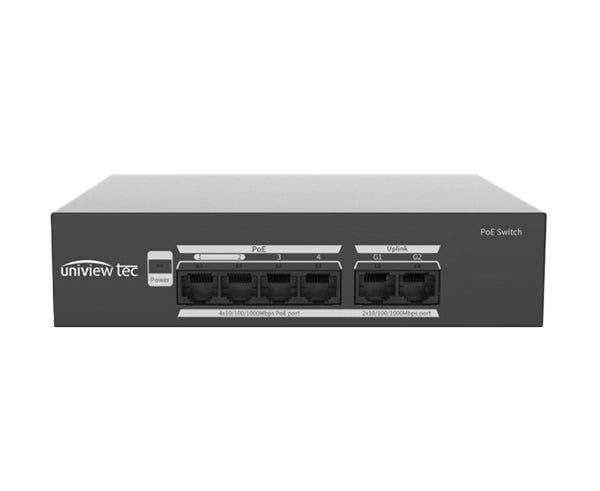

NSW042GPX - Cloud Managed, 4-port Gigabit PoE switch, 2-Gigabit network ports, 65W PoE maximum power, extend mod
This 4-port Gigabit PoE switch delivers enterprise-grade network performance with cloud management capabilities. Featuring 4 × 1000Mbps PoE ports and 2 × 1000Mbps network ports, this compact switch provides up to 65W of total PoE power with 30W maximum per port. The switch supports IEEE 802.3af/at standards and offers advanced features including VLAN support, port isolation, loop detection, and comprehensive network management through intuitive software. With its robust design and extend mode functionality, this switch is perfect for expanding network infrastructure in commercial and enterprise environments.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- 4 × 1000Mbps PoE ports (RJ45) + 2 × 1000Mbps network ports (RJ45)
- Maximum PoE Power: 65W total capacity with 30W maximum per port
- IEEE 802.3af/at compliant for universal PoE device compatibility
- 12Gbps switching capacity with 8.92Mpps forwarding performance
- Cloud management with intuitive software interface
- VLAN support - allows up to 6 VLANs with IDs from 1 to 4094
- Advanced security features including port isolation and loop detection
- Link aggregation support - up to two groups with four ports each
- Port mirroring capabilities for network monitoring (N:1)
- Auto-negotiation working modes with full/half duplex support
- Static MAC address support (up to 32 entries)
- Comprehensive device management including firmware upgrade and configuration backup
- Compact design: 169 x 132 x 40mm (6.6 × 5.2 × 1.5")
Specifications
Specifications
| PoE Network Switch | |
|---|---|
| Ports | 4 × 1000Mbps PoE ports (RJ45) 2 × 1000Mbps ports (RJ45) |
| Standards | IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at |
| Switching Capacity | 12Gbps |
| Forwarding Performance | 8.92Mpps |
| Packet Buffer | 1Mbit |
| MAC | 2K |
| Dimensions (W x D x H) | 169 x 132 x 40mm; (6.6 × 5.2 × 1.5") |
| Weight | 0.71 kg (2.2lb) |
| Input Voltage | AC: 100-240V, 50/60Hz |
| Maximum Power | 68W |
| Maximum PoE Power | Max capacity: 65W ; Max capacity for single port: 30W |
| Operating Temperature | 0° ~ 40°C (32° ~ 104°F); 10% ~ 90% non-condensing |
| Storage Temperature | -40° ~ 70°C (104° ~ 158°F); 5% ~ 90% non-condensing |
| Software Specification | |
| Ethernet | Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports two link aggregation groups (up to four ports) |
| VLAN | allows up to 6 VLANs with IDs from 1 to 4094 |
| MAC | Support static MAC, up to 32. |
| POE | Allows to view PoE status and enable/disable PoE power supply in the APP |
| Security | Supports port isolation and loop detection |
| Maintenance | Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software |
| System | Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name |
Additional Information
Additional Information
Compatible Accessories
This PoE switch is compatible with the following accessories
Additional Product Information
This cloud-managed PoE switch supports extend mode functionality for enhanced network reach and flexibility. The device includes comprehensive management software for easy configuration and monitoring of network performance.
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec Cloud Managed 4-port Gigabit PoE Switch (NSW042GPX)
- Qty 1 – Power adapter
- Qty 1 – AC power cable
- Qty 1 – Quick Start Guide / Installation manual
- Qty 1 – Warranty card or document
- Qty 1 – Mounting hardware and brackets
