CAT5E Outdoor Bulk Ethernet Cable, Shielded Solid Copper CMR/CMX, 24 AWG 1000FT

ETL ListedRoHS Compliant ISO 9001
NOTE: 1000ft lengths are only available in a black Jacket color. 250ft & 500ft lengths are considered to be custom length cuts and can not be returned and/or refunded.


CAT5E Bulk Ethernet Cable Shielded

Our Shielded Indoor/Outdoor CAT5E UV Resistant Cable is well-suited for your outdoor voice, data, video and security networking applications. Some common applications for this type of cable include retrofitting installations which rely on exterior cable runs that are exposed to heat or sunlight. This cable is ideal for extending cable runs from the point of entry to the interior of the premise to the specified device(s). Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

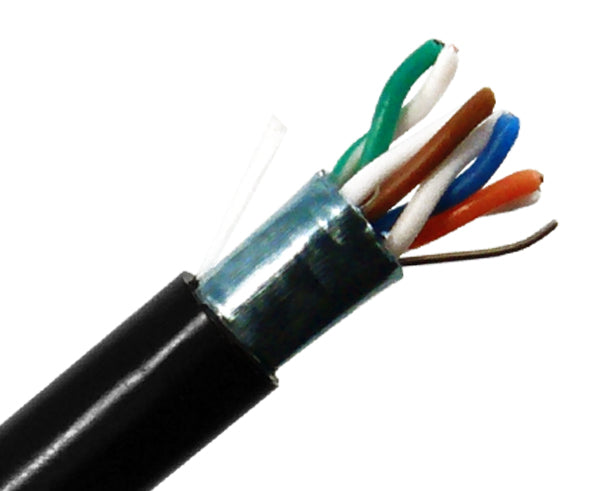

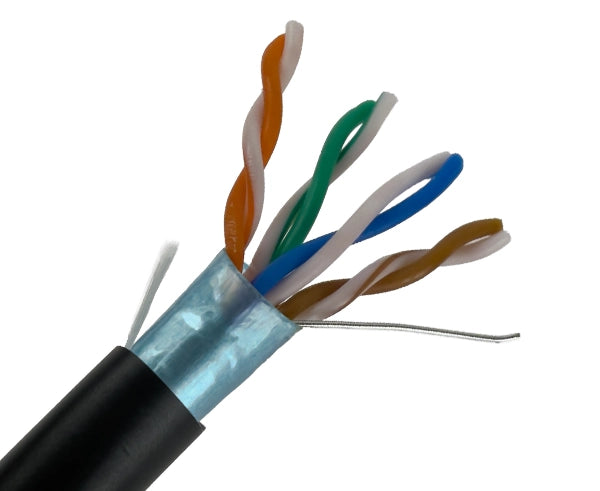

This Shielded Indoor/Outdoor, CAT5E, UV Resistant Cable features 8 conductors (4-Pairs) of solid bare copper with a high density polyethylene (HDPE) insulation and a CMX/CMR UV resistant PVC Jacket. Our Shielded Category 5E, CMX/CMR, Indoor/Outdoor, UV Resistant Cable is designed for indoor and outdoor LAN applications and is resistant to cracking after UV exposure, making it the perfect solution for installation runs that require the cable to be exposed to the elements. Additionally, this cable has a tinned copper drain wire which grounds the electricity after it has been terminated. This drain wire is required on all shielded cable in order to prevent signal loss, cross-talk, and other performance issues. This cable contains the same UV-blocking compounds as our direct burial cable and features a black jacket to prevent critical sunlight damage to the cable. Our Shielded CAT5E Indoor/Outdoor Cable is also tested up to speeds of 350MHz.

In our commitment to delivering high-quality bulk Ethernet cables, our cables meet and/or exceeds CAT5E ANSI/TIA-568.2-D standards. Additionally, our Shielded CAT 5E Indoor/Outdoor Cable is manufactured to meet current CAT5E guidelines and is verified by outside standards organizations such as: c(ETL)us as well as being RoHS Compliant. Additionally, all cables contain a cable ID alphanumeric code imprint on the jacket every two ft.

Technical Diagram

CAT5E Outdoor/Riser CMX/CMR Shielded Cable Diagram

Cat 5E Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP
General (CM) General (CM) General (CM) Outdoor (CMX) Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP)

Cat 6 Bulk Cable Options

Stranded Copper UTP Stranded Copper F/UTP Solid Copper UTP Solid Copper F/UTP Solid Copper S/FTP
General (CM) General (CM) General (CM) Outdoor (CMX) 24AWG Riser (CMR) 23AWG Riser (CMR) Plenum (CMP) Outdoor (CMX) Riser (CMR) Plenum (CMP) General (CM)
Container and Trucking Quotes
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email to get a shipping quote.



  • High-Performance Data Communications Cable
  • This Cable Is CAT5E Outdoor CABLE UV Rated for Outdoor Use
  • Suitable For 350MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Designed For Indoor/Outdoor Installations UV Jacket (CMX/CMR) (UV)
  • Category-5E Shielded Twisted Pair (FTP) Riser Cable
  • 4-Pair Easily Identified Color Striped Pairs
  • 24 AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds ANSI/TIA-568.2-D
  • ETL Listed
  • RoHS Compliant
  • Sequential Length Markings on Jacket
  • Supplied in a 1000' Pull Box with large payouts



Additional Information

Additional Information

Solid Wire: also called solid-core or single-strand wire, consists of one piece of metal wire. Stranded wire is composed of a bundle of small-gauge wires to make a larger conductor and more flexible than solid wire. Solid wire is generally used for in-wall wiring where there is little need for flexibility in the wire.

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Cable Accessories Options

Our CAT5E Indoor/Outdoor Shielded Ethernet Cables are compatible with our:

What’s In The Box

What’s In The Box

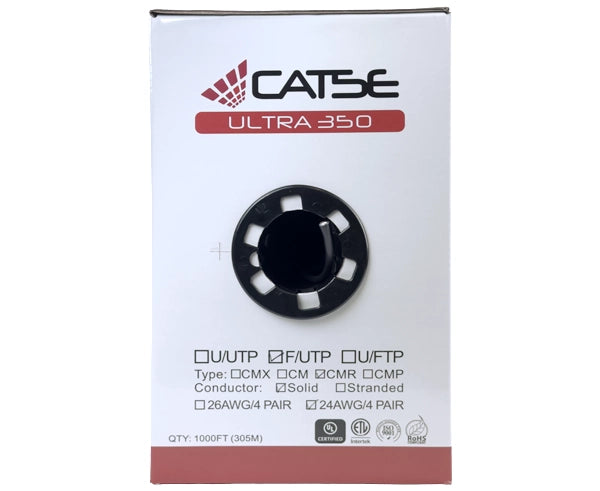

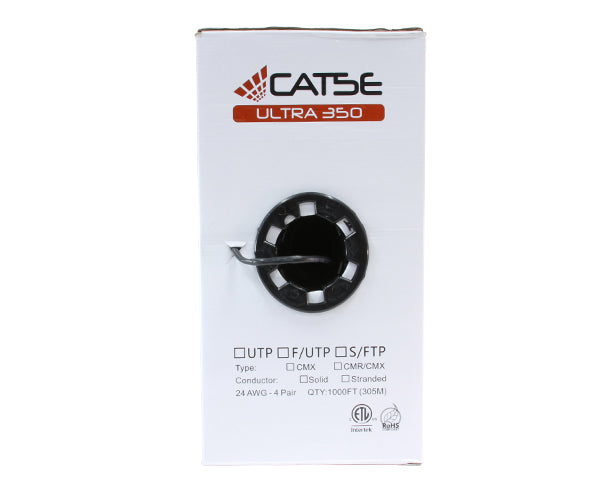

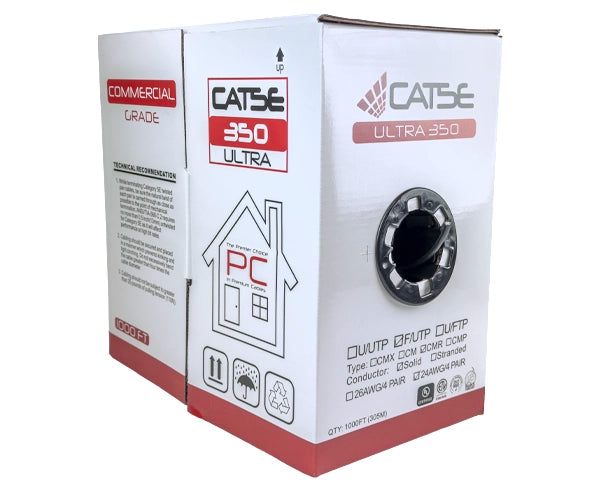

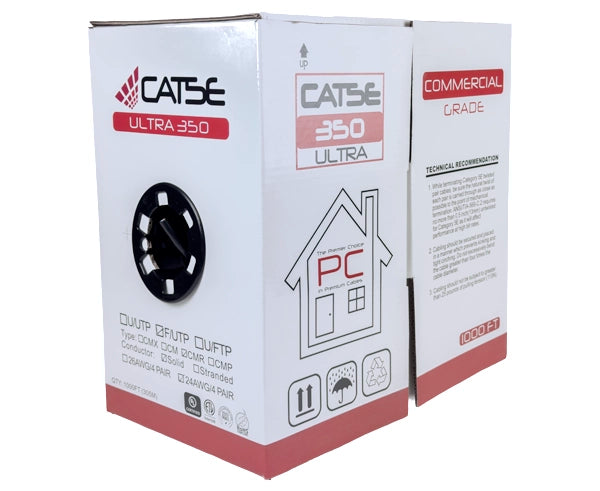

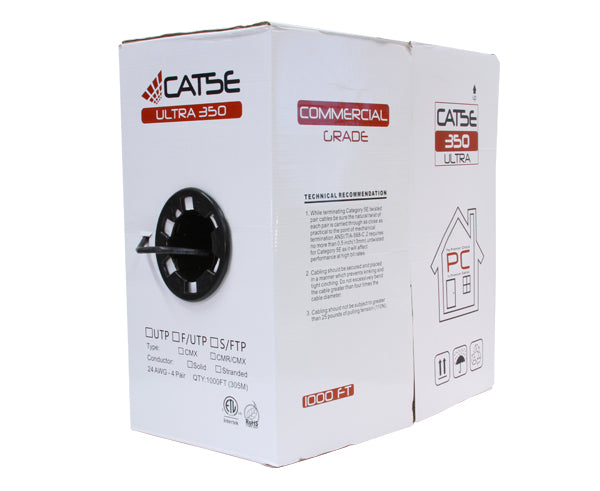

  • Shielded CAT5E Indoor/Outdoor Ethernet Riser Cable, Black Jacket, 1000ft In A Pull Box
