Data Center Network Prep & Install Kit

Description

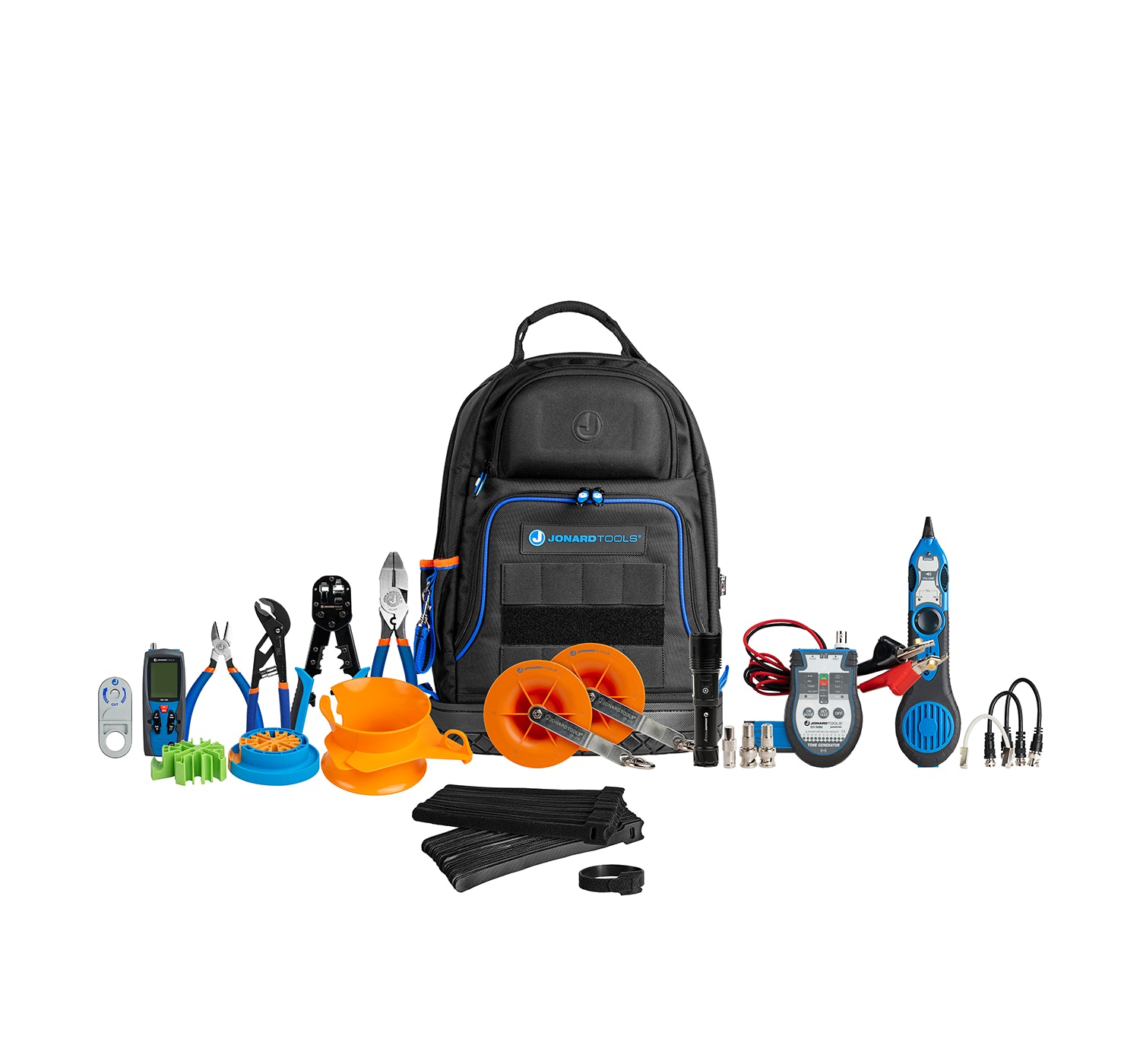

Data Center Network Prep & Install Kit

These comprehensive network prep and installation kit built for data center technicians handling structured cabling work in data center types including traditional set ups like edge & enterprise, hyperscales, colocations.

This kit covers every stage of a network cabling installation, from pulling cable through conduit, raised floors, and drop ceilings to stripping, terminating, dressing, and tracing completed runs across dense patch panels and overhead trays. Reusable hook and loop cable ties keep bundles organized and reconfigurable as the environment grows and changes, and a rugged technician backpack keeps everything field-ready across large data hall deployments and multi-floor infrastructure builds.

Built for technicians working at pace through every stage of a copper network cabling installation, from pulling and stripping through termination, organization, and tracing, the TK-DC05 eliminates the need to source tools separately across large data hall deployments and multi-floor infrastructure builds.

Features

Features

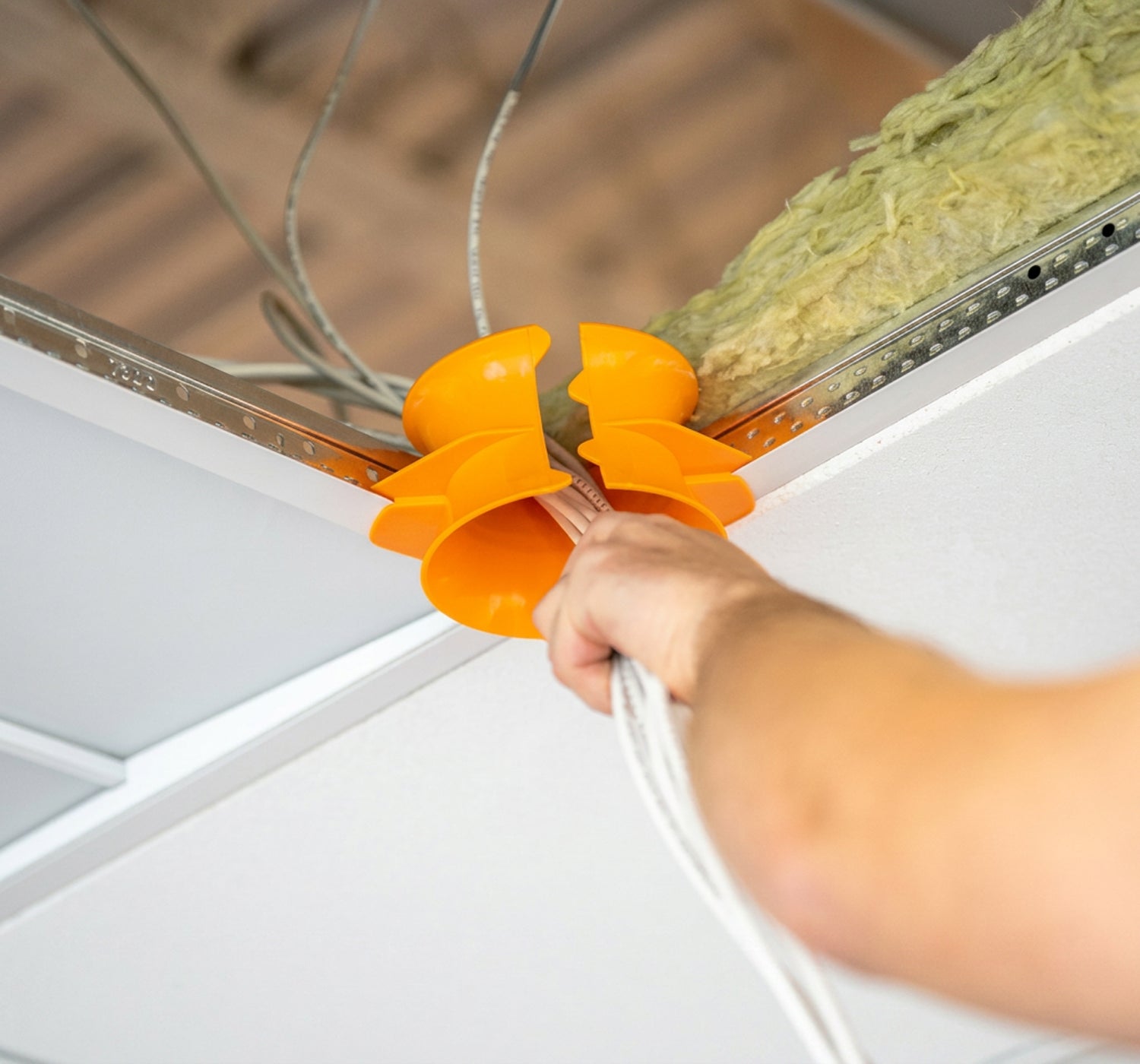

• Pull low-voltage network, COAX, and electrical cable with CP-475 through conduit, raised floors, and overhead trays in data center environments, with surface protection for safe routing with CPF-215 through drop ceilings in server rooms and colocation facilities. Use the JIC-685 lineman plier for additional support needed with fishtape.

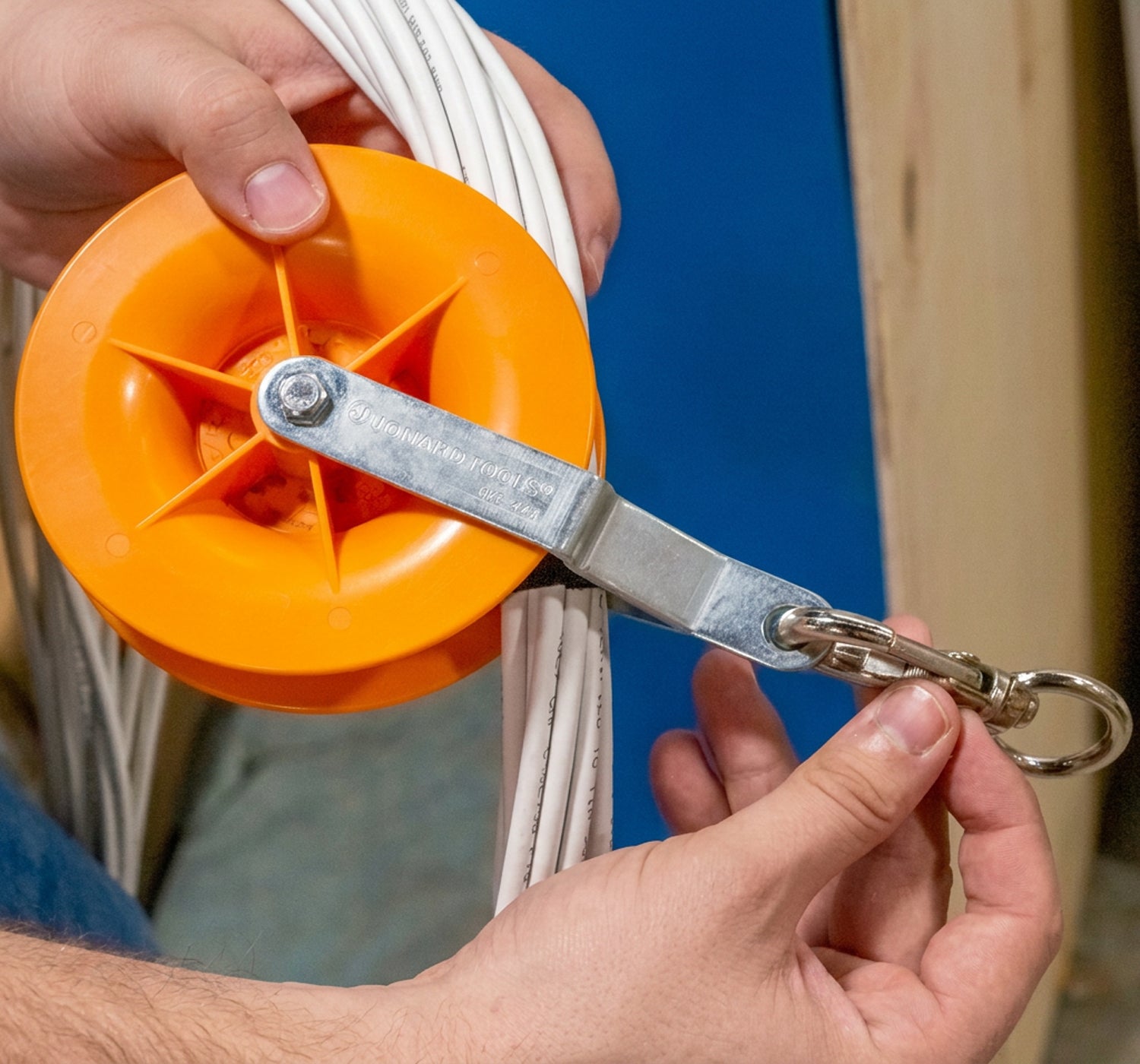

• Pull parallel cable runs with CCB-2534 and organize with CTS-812/100 into clean, evenly spaced bundles at patch panels and switch terminations , producing structured cabling layouts that are faster to trace and easier to maintain across the life of the installation.

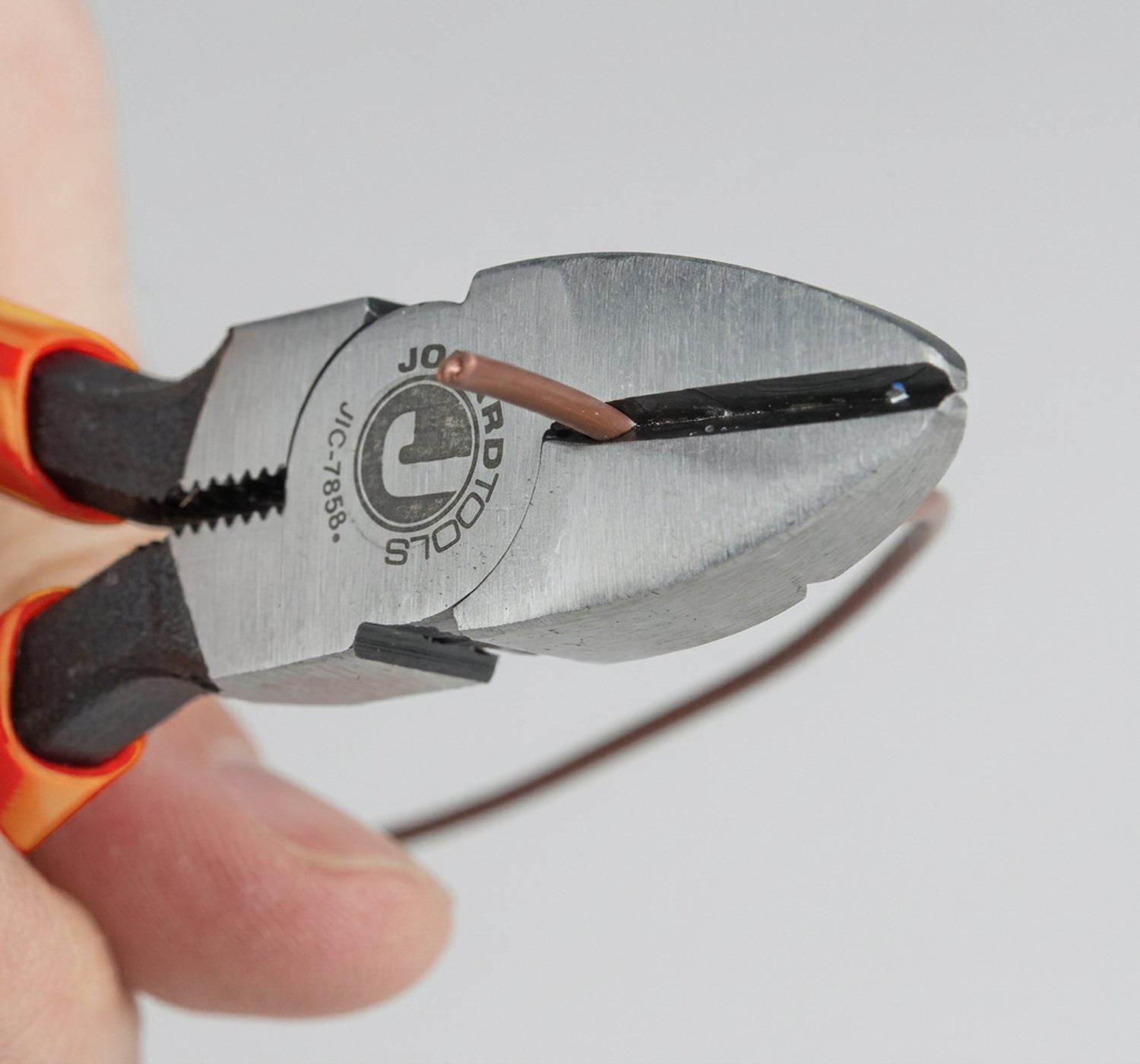

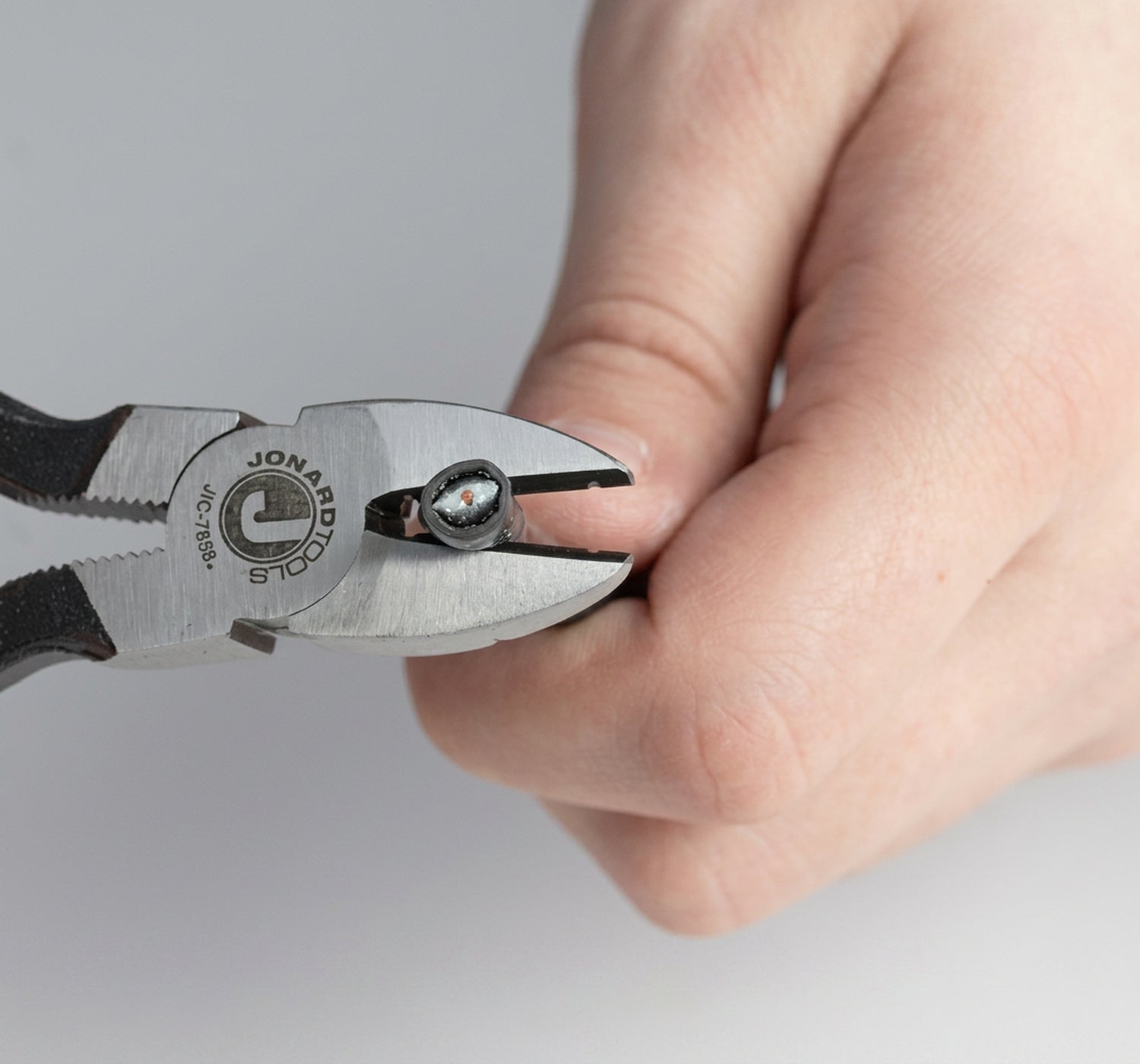

• CST-1i strips cable jackets up to CAT 8 cleanly before termination, protecting conductor integrity. JIC-7858 provides 2 additional stripping capabilities in addition to flush cuts for cable ties.

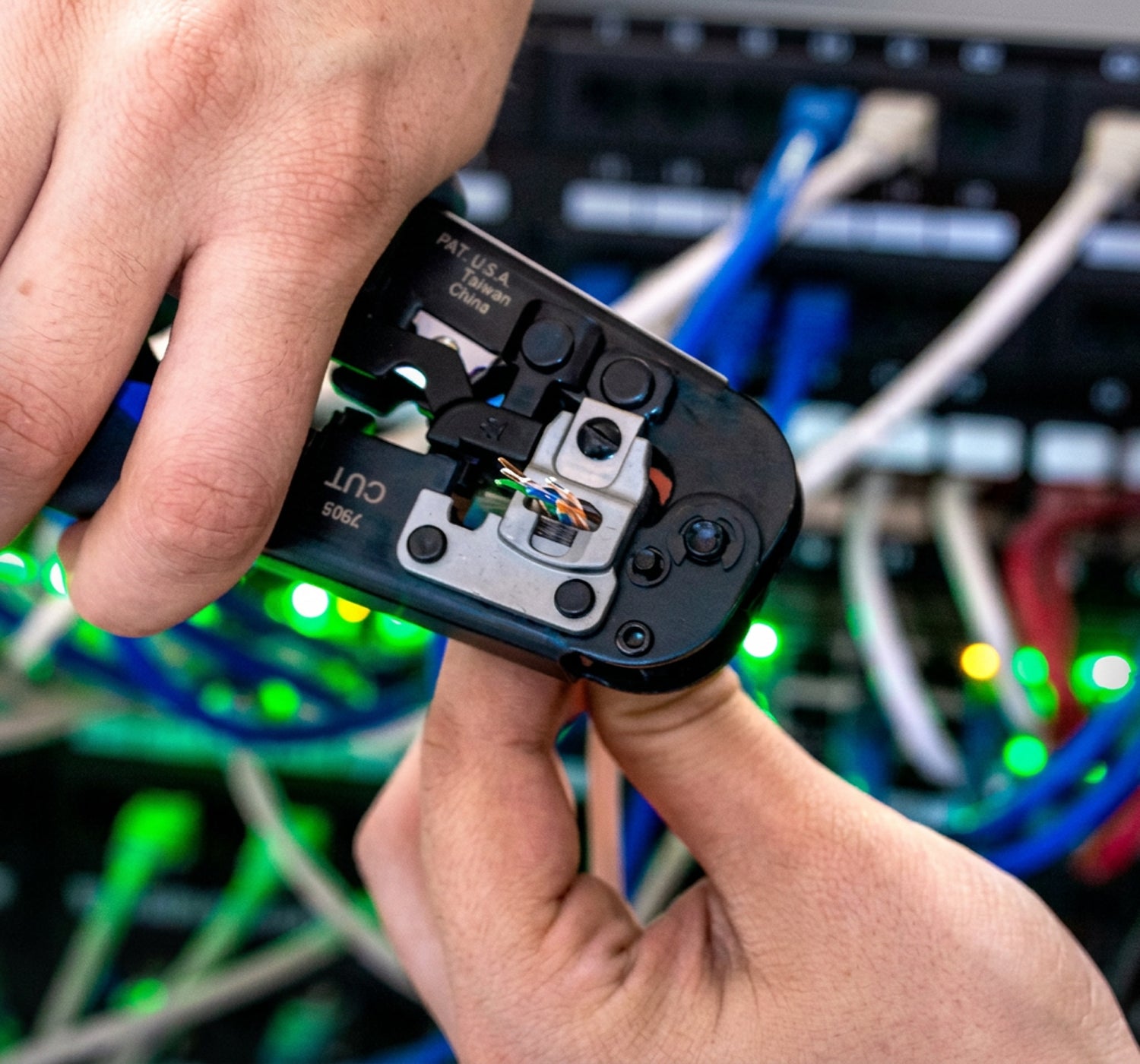

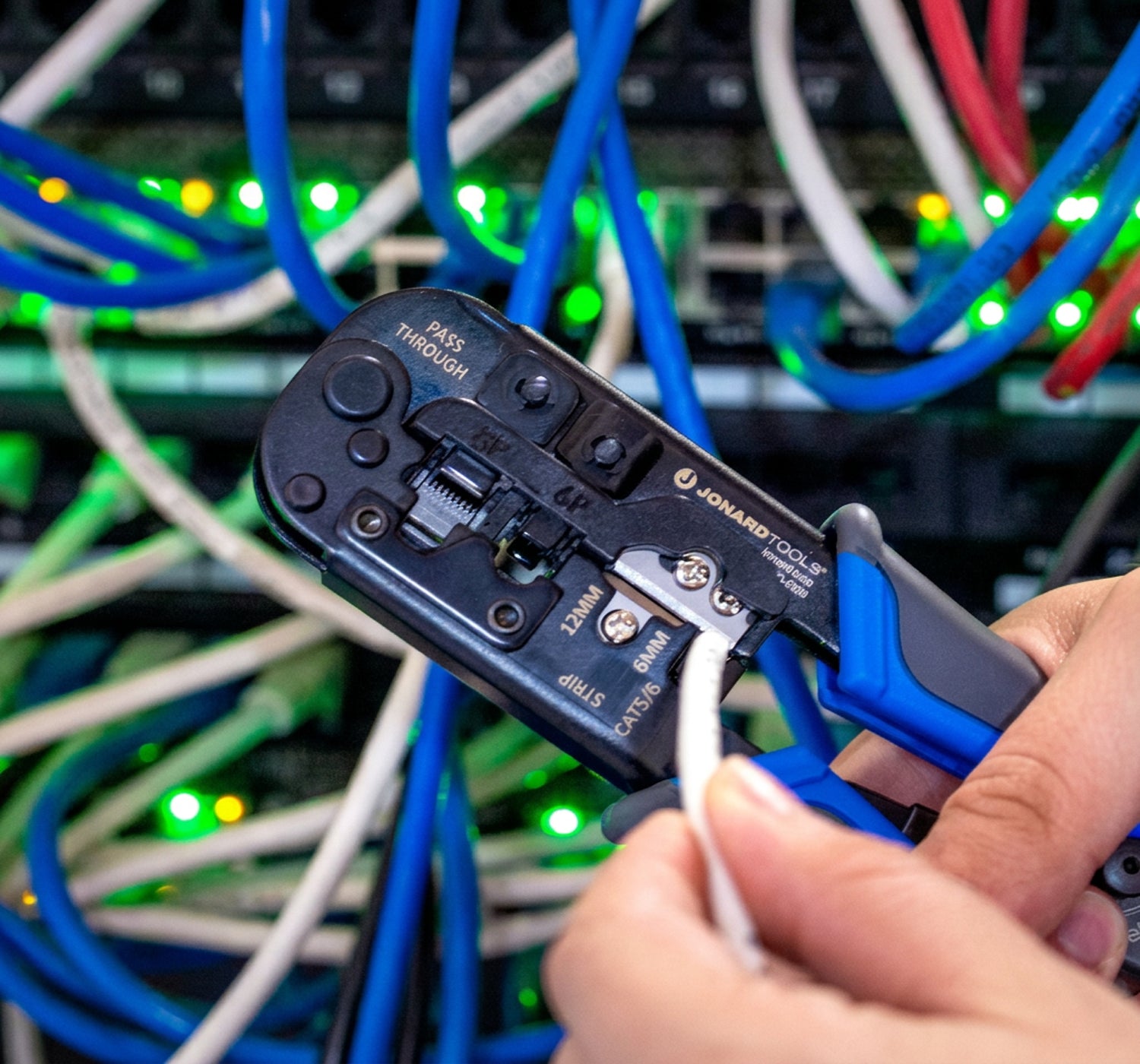

• Trim and crimp RJ45 connectors on cables up to CAT 7 in a single pass with UC-4511, delivering consistent crimp quality across management cabling, console runs, and structured cabling installations throughout the data center.

• Trace and identify unlabeled cable runs with the CM-100 cable mapper, then use the TETP-901 tone and probe kit to pinpoint the exact cable at the panel or termination point, eliminating guesswork across crowded overhead trays, raised floors, and dense patch panels.

• Stay safe and productive during rack work with SOL-F1 rechargeable lighting for low-light aisles and BP-100 heavy-duty backpack for organization and quick access.


Optional Add-Ons

• CC-2721 - Steel Cable Caddy for 16" X 20" Wire Spools

• CC-2721WS - Steel Cable Caddy, 21" Wide with Wheels & Strap

• CC-2726 - Steel Cable Caddy, 26" Wide

• CC-2726WS - Steel Cable Caddy with Wheels & Pull Strap, 26" Wide

• CC-5442 - Double Decker Steel Cable Caddy, 21" Wide

• CRD-10 - Cable Reel Dispenser, 10" Diameter

• JIC-22035 - Spudger, Yellow Plastic

• MF-25/10 - Magtime Magnetic Cable Holder, 10 pcs

• MF-25/25 - Magtime Magnetic Cable Holder, 25 pcs

• PoE-1 - POE & Cable Testing Tool

• RJ45-5100 - RJ45 Cat5/5e Pass-Through Connectors, 100 Pcs

• RJ45-525 - RJ45 Cat5/5e Connectors, 25 pcs

• RJ45-550 - RJ45 Cat5/5e Pass-Through Connectors, 50 Pcs

• RJ45-6100 - RJ45 Cat6 Pass-Through Connectors, 100 Pcs

• RJ45-625 - RJ45 Cat6 Connectors, 25 pcs

• RJ45-650 - RJ45 Cat6 Pass-Through Connectors, 50 Pcs

• RJ456A-SC - Shielded RJ45 Connector with Crimp Tail for Cat6A Cable, Pack of 100

• RJ456AUS-100 - Unshielded RJ45 Pass-through Connector for CAT6A Cable, Pack of 100

• TDR-100 - Network Cable Tester and TDR

• UC-4511 - RJ45 & RJ11/12 Mod Pass-through Crimper with Tail Crimping Slots

• PLKJ-1 - Keystone Jack Plier

• PLCR-8 - Keystone Jack and Field Termination Crimper

Specifications

Spec Sheet

What's in the Box

What’s in the Box

• Qty 1 - Data Center Operations & Maintenance Kit
