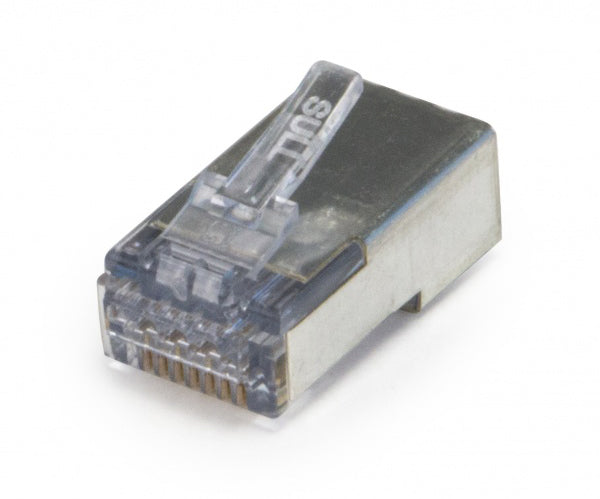

CAT6/A ezEX 44 Shielded RJ45 Connector - OD Under 7.75mm

Description

Former Part Number: CN1-6759-Z6S

Choose the Right RJ45 Connector

The American Made ezEX™44 Shielded RJ45 Connector for CAT6 & CAT6A Cable provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.039-0.044." It's designed to handle larger-sized conductors while maintaining the simplicity of the EZ™ pass-through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one-piece design, and no bars or liners are required. Compatible with both solid and stranded 24 - 22 AWG cable.

Standard RJ45 Issues

The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.

What Makes ezEX Different?

ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.

Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.

ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.

Looking For RJ45 Accessories?

Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimper, and we've got 'em.

The EXO Crimp Frame with EXO-EX Die is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.
