Former Part Number: CN1-6241-Z6
Description
Description
Choose the Right RJ45 Connector

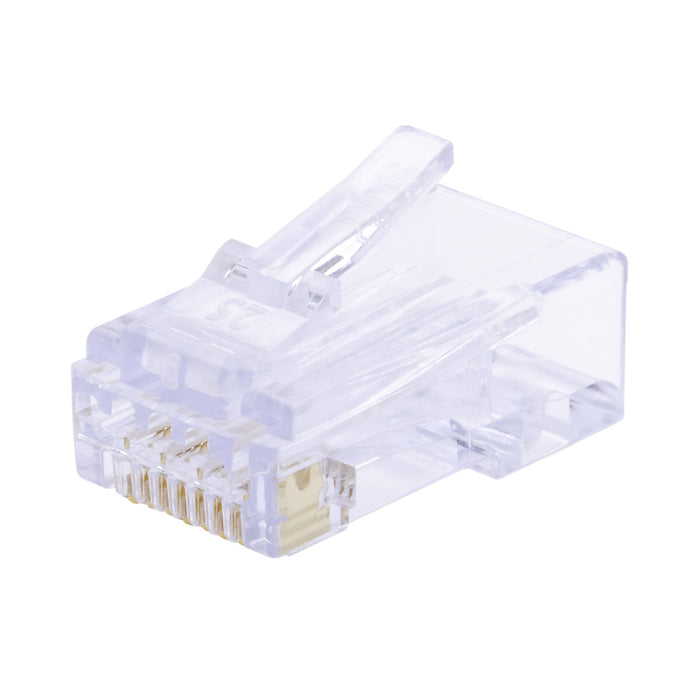

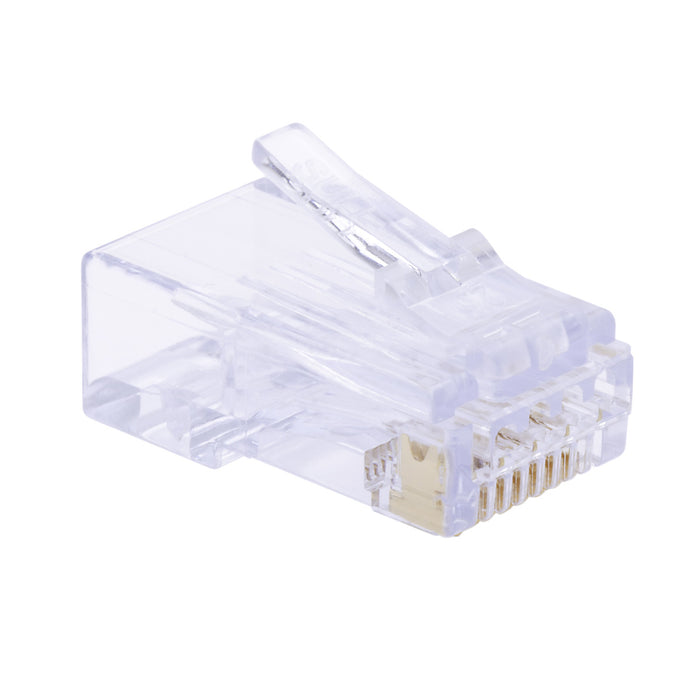

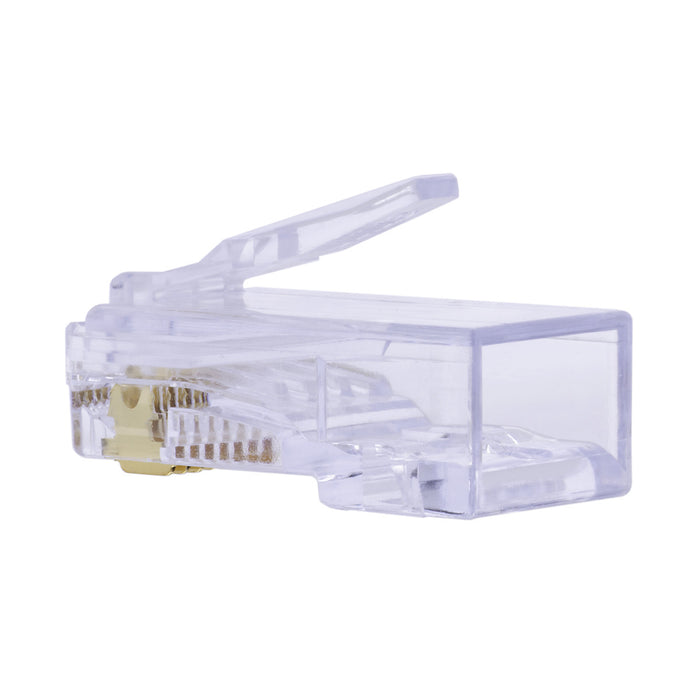

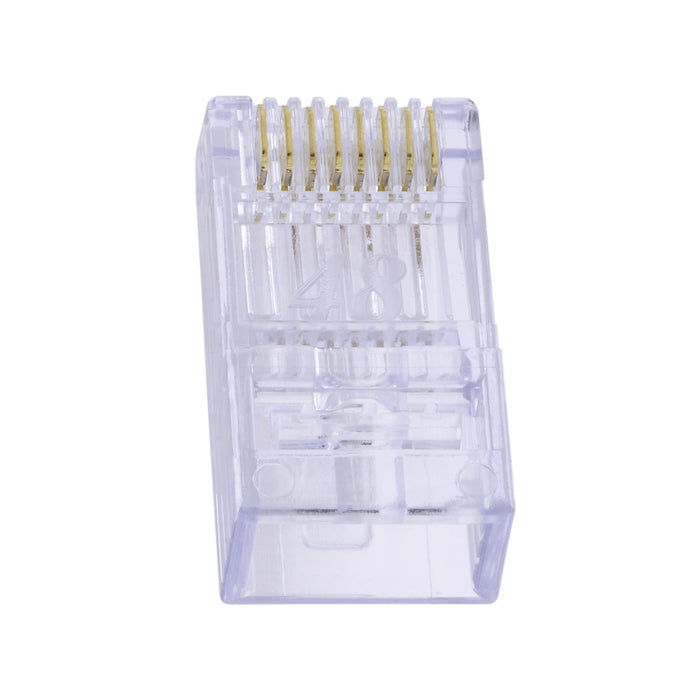

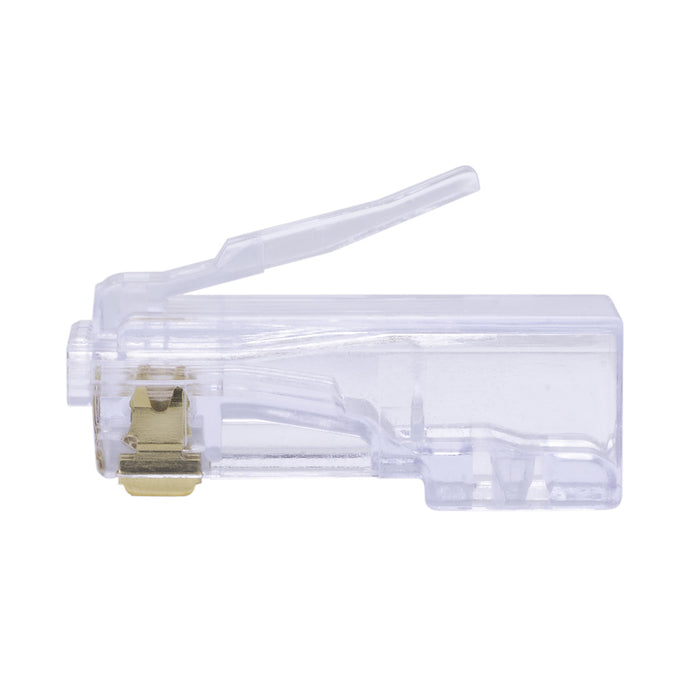

The ezEX™48 RJ45 Connector for CAT6, CAT6A Cable provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.043-0.048." It's designed to handle larger-sized conductors while maintaining the simplicity of the EZ™ pass-through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one-piece design, and no bars or liners are required. Compatible with both solid and stranded conductor cable. These ezEX™48 RJ45 Connectors for CAT6, CAT6A Cable are compatible with our C6CMXF-2044BK CAT6 Direct Burial Gel Filled Ethernet Cable.

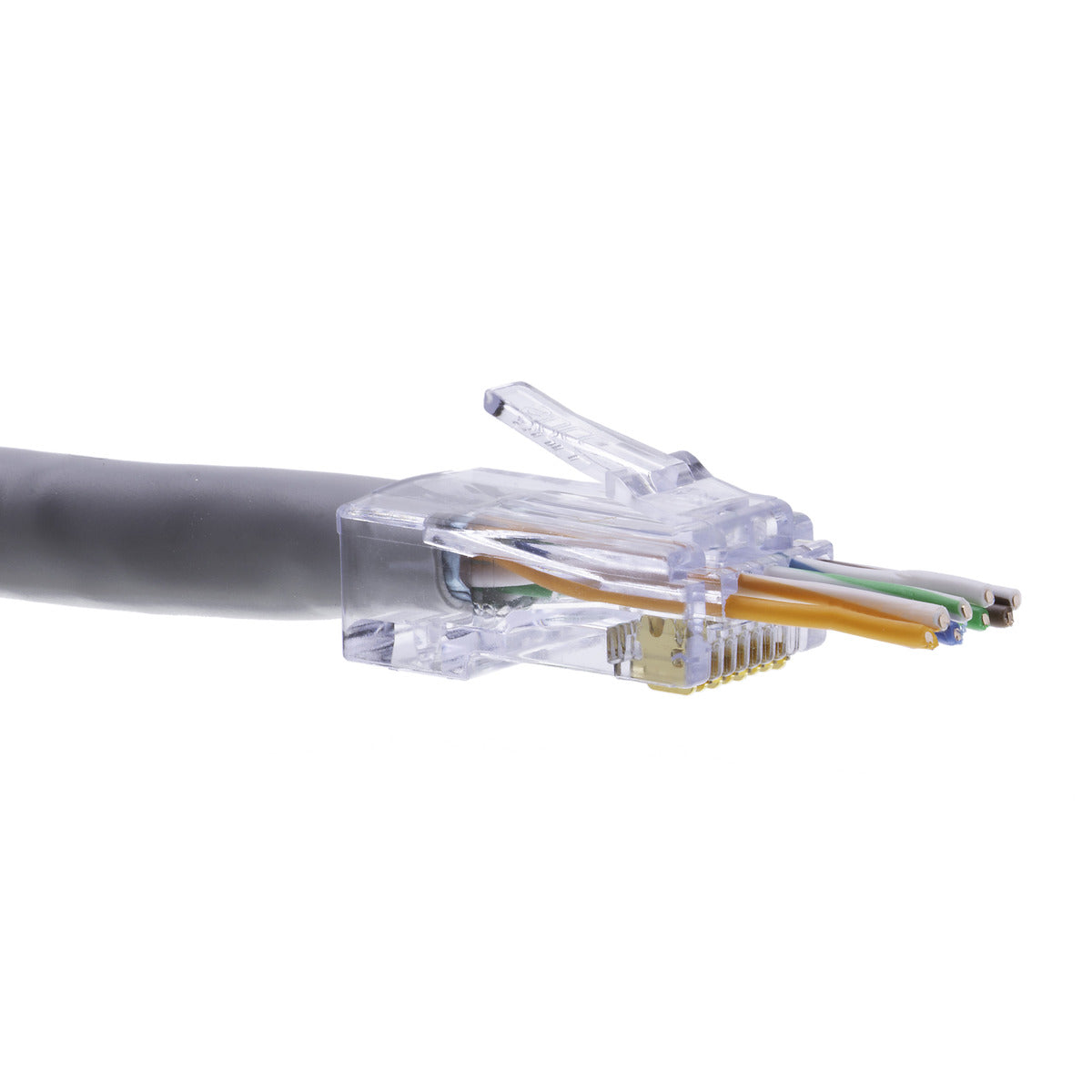

The CAT6/A ezEX48 RJ45 Connector is engineered for cables with an outer diameter under 7.75mm, ensuring reliable terminations and superior electrical performance. The connector’s unique design allows for improved conductor alignment, making it easier to verify wiring order before crimping.
Available Options:
• Single Connector – perfect for quick tests or small repairs
• 50 Pack – ideal for medium-sized installations
• 100 Pack – best value for large projects or bulk use
These connectors are compatible with ezEX crimp tools, providing a secure, professional-quality termination for Cat6A and Cat6 cables.
Standard RJ45 Issues
The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.
What Makes ezEX Different?
ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.
Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.
ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimper, and we've got 'em.
The EXO Crimp Frame with EXO-EX Die is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.
Features
Features
- For CAT6 and CAT6A Ethernet Cable with Insulation Diameter Ranging from .043-.048", 1.09mm - 1.21mm
- Available in Single, 50 Pack, and 100 Pack

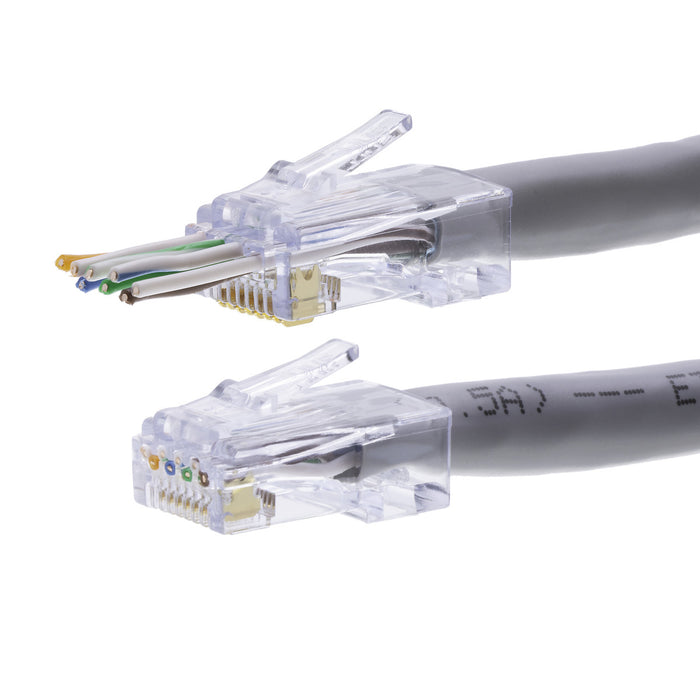

- Pass Through Design for Easy Verification of Wiring Sequence
- One-piece Design - no Bars or Liners Required
- 50 Micro-inch Gold Plated Contacts
- Works with 24 - 22 AWG Cable
- Rated for up to 10 Gigabit Performance
- Works with Solid and Stranded Cable
- RoHS, UL, TIA, TAA, & FCC Compliant
Specifications
Specifications
Additional Information
Additional Information
EZ-RJ45 vs ezEX-RJ45 Comparison
What’s In The Box
What’s In The Box
- Qty 1 - ezEX™48 RJ45 Connector for CAT6, CAT6A Cable (50 Pack and/or 100 Pack)
