Former Part Number: CN1-6240-Z6
Choose the Right RJ45 Connector

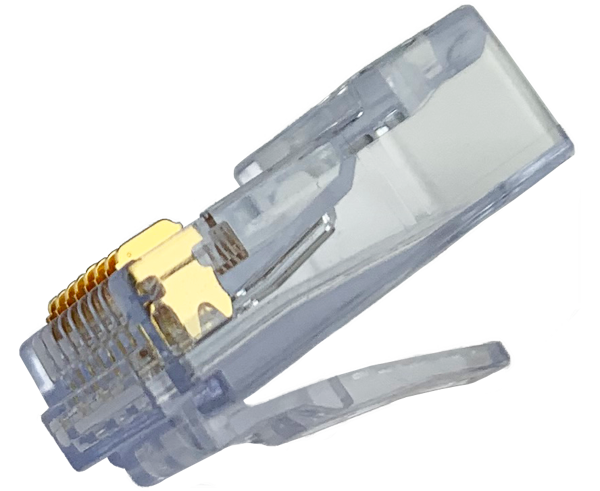

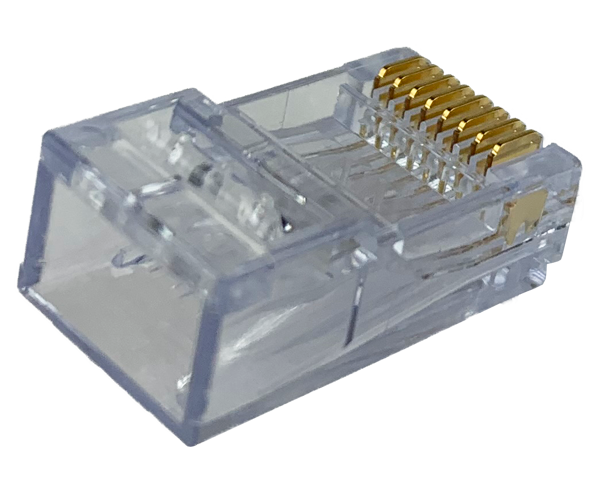

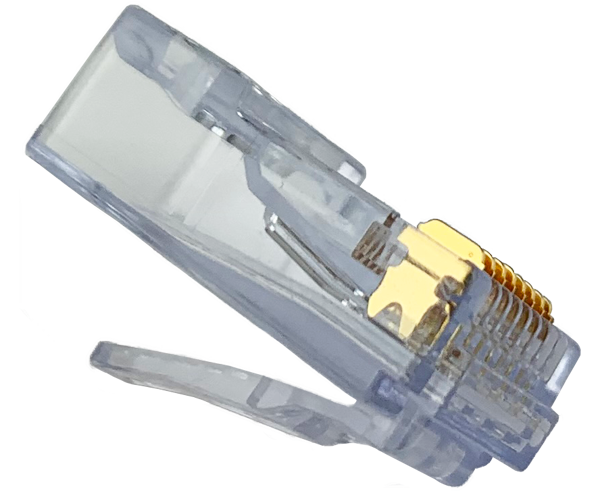

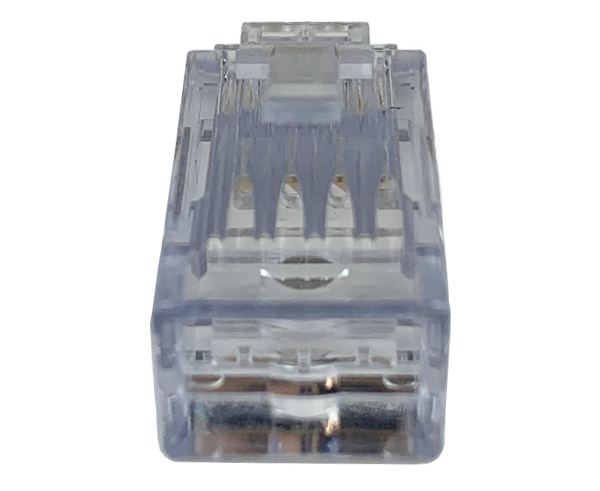

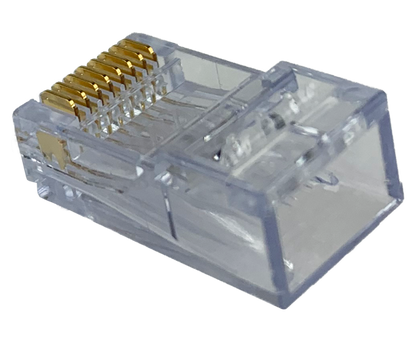

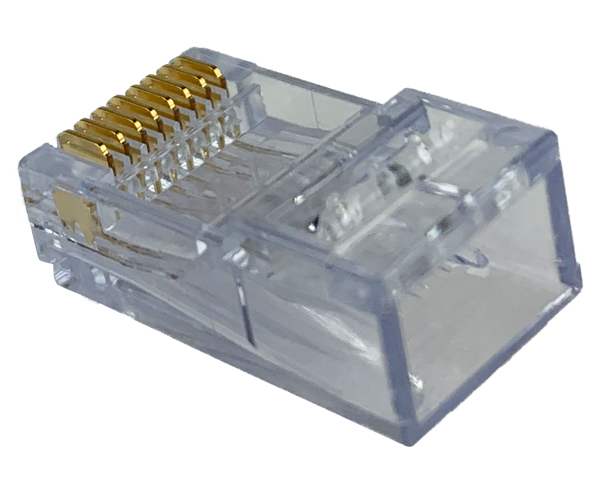

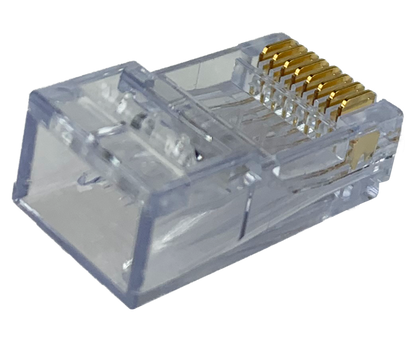

The ezEX™44 RJ45 Connectors for CAT6/A cable provides an option for terminating larger diameter twisted pair cables with insulation diameter sizes ranging from 0.041-0.044." It's designed to handle larger-sized conductors while maintaining the simplicity of the EZ™ pass-through design. This facilitates verification of wiring sequence before terminating. It has a high/low staggered design to accommodate larger diameter conductors while maximizing performance. It has a one-piece design, and no bars or liners are required. Compatible with both solid and stranded cable. These ezEX™44 RJ45 Connectors are compatible with our C6CMXUM-1918 Outdoor CAT6 Ethernet Cable.
The CAT6/A ezEX44 RJ45 Connector is designed for cables with an outer diameter under 7.75mm and conductor insulation diameters between 0.041”–0.044”. This connector provides reliable, high-performance terminations for CAT5e, Cat6A and Cat6 cables.
The ezEX44 connector features a pass-through design, allowing conductors to extend through the front of the connector for easy verification before crimping—ensuring faster, more accurate terminations.
Available Options:
• Single Connector – great for quick fixes or testing
• 50 Pack – ideal for medium-sized network installs
• 100 Pack – perfect for bulk or professional use
Compatible with ezEX crimp tools, these connectors deliver superior conductivity and strain relief for dependable network performance.
Standard RJ45 Issues
The most common issue with traditional pass-through connectors is the incomplete trimming of conductors, leading to voltage shorts & crosstalk. This gets worse as your crimp tool's blade dulls with use.
What Makes ezEX Different?
ezEX-RJ45 connectors feature a molded load bar ensuring conductors are completely trimmed off during the crimping process.
Additionally, ezEX-RJ45 connectors feature a patented hi-lo staggered wire path, reducing near-end crosstalk and allowing for larger diameter conductors.
ezEX-RJ45 connectors are available in a variety of constructions, accommodating both shielded and unshielded cable up to 0.290" diameter & 24- 22AWG conductor sizes.
Looking For RJ45 Accessories?
Please consider us for any of your other networking needs. We've got bulk cable, many styles of keystone jacks, and other items. Keep in mind, you're going to need a crimper, and we've got 'em.
The EXO Crimp Frame with EXO-EX Die is the original, patented RJ45 crimp system featuring a swappable cassette for either ezEX-RJ45 or EZ-RJ45 pass-through connectors.
Features
Features
- For CAT6/A Ethernet Cable with Insulation Diameter Ranging from .041-.044", 1.0mm - 1.12mm
- Pass Through Design for Easy Verification of Wiring Sequence
- Available in Single, 50 Pack, and 100 Pack
- One-piece Design - no Bars or Liners Required
- Rated for up to 10 Gigabit Performance
- 5e/6/6A compliant
- Works with Solid and Stranded Cable
- Transparent Housing for Easy Conductor Alignment
- 8 Pins and 8 Conductors (8p8c)
- PoE and PoE+ Capable
- RoHS and UL Compliant
Specifications
Specifications
Additional Information
Additional Information
| Product Videos | |
|---|---|
THE NEW EZEX-RJ45 TERMINATION SYSTEM |
HOW TO CRIMP EZEX-RJ45 CONNECTORS |
What’s In The Box
What’s In The Box
- Qty 1 - CAT5e/6/6A ezEX™ 44 RJ45 Connector (Individual, 50 Pack or 100 Pack)
