Description

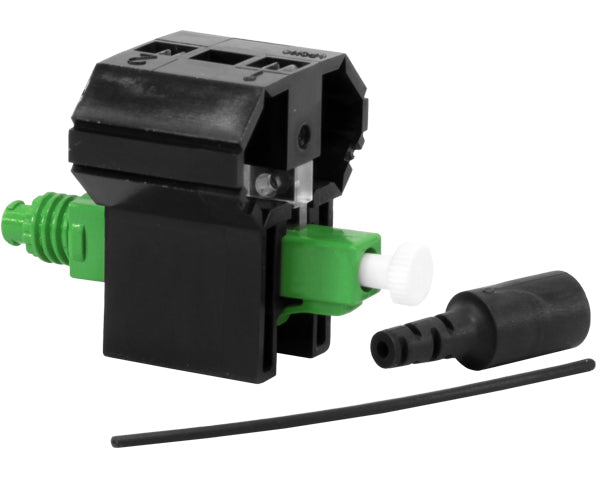

Fiber Optic FAST Connector, Pre-Polished APC
FASTConnect™ field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub, and a proprietary index-matching gel combine to offer an immediate low-loss termination to either single mode or multimode optical fibers.
FASTConnect™ connectors are compatible with 250um and 900um optical fibers, as well as 900um, 2mm, and 3mm cordage. All primary fiber types are supported, and each connector is color-coded per industry-standard requirements to aid in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFL to provide a "pass/fail" signal once physical contact is achieved.
900um boots are included and we also offer 2mm fiber boots and 3mm fiber boots that are sold separately.
Features
Features
- Pre-stubbed, factory-polished ferrule
- No epoxy required
- Precision mechanical alignment ensures low-loss
- Fiber can be reseated
- 900um boot provided with each connector. 2mm and 3mm boots are also available separately.
- VFI can be used to confirm fiber is installed properly
- Meets TIA/EIA 568A performance requirements
- Meets TIA/EIA 604 (focus) connector interface requirements
Applications
- Premise environments
- Connections at the desk for LAN environments
- Patch panels
- Direct equipment termination
- Fiber to the Subscriber (FTTx) applications
- Repair and replacement requirements
- Equipment test leads
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| INSERTION LOSS | |
| SINGLE-MODE - UPC | AVERAGE: 0.2 DB, MAXIMUM: 0.5 DB |
| SINGLE-MODE - APC | AVERAGE: 0.3 DB, MAXIMUM: 0.6 DB |
| MULTIMODE - PC | AVERAGE: 0.1 DB, MAXIMUM: 0.5 DB |
| RETURN LOSS AT ROOM TEMPERATURE | |
| SINGLE-MODE - UPC | AVERAGE: -55 DB, MAXIMUM: -45 DB |
| SINGLE-MODE - APC | AVERAGE: -55 DB, MAXIMUM: -50 DB |
| MULTIMODE | AVERAGE: -25 DB, MAXIMUM: -20 DB |
| OPERATING TEMPERATURE | -40°C TO +75°C |
Additional Information
| Product Videos | |
|---|---|
FAST CONNECTOR LC 900UM INSTALLATION |
What's in the Box
What’s in the Box
- Qty 6 - LC Pre-Polished APC Fast Connectors, 9/125 Single Mode
- Qty 6 - Connector boots
- Qty 6 - Strength members and positioning parts for assembly
- Qty 6 - Dust caps
- Qty 1 - Instruction Manual
