Fiber Termination Module, CT-X, Splitter

Call for Pricing
SKU: FB24-####-CTX-SPL
Various lead times may apply to this product. Please contact us for more details.
Made in USA

This fiber adapter panel insert is only compatible with our FB23 Signature Series fiber patch panels.


Description

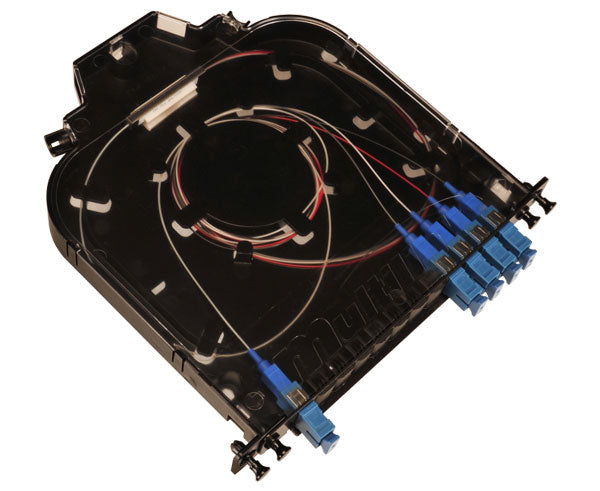

Fiber Termination Module, CT-X, Splitter

The CT-X is a versatile platform to fulfill your fiber infrastructure requirements. The core of the design is the base module that accommodates patching, splicing, splitters, or plug-and-play connections. All connections to the CT-X, including the adapter panel, are non captive, allowing greater flexibility during splicing, installation, and future changes.

All back connections to the base are bidirectional, allowing fiber to enter from either left or right build outs, or both. The CT-X base is available in three colors, multiple adapter panels, and a clear cover for quick viewing of fiber layout.

Features

  • Forward or Reverse Swell Latches
  • Ample Fiber Management
  • Direct Wall Mounting
  • Detachable Metal Bulkhead

Specifications

Depth: 8" Inches
Height: 0.8" Inches
Width: 8.6" Inches
Material: Plastic with clear plastic lid
Operating Wavelength: 1260~1362, 1480~1600


1x4

Insertion Loss: ≤7.4 dB
Return Loss: ≥55 dB
Directivity: ≥55 dB


1x8

Insertion Loss: ≤10.3 dB
Return Loss: ≥55 dB
Directivity: ≥55 dB


1x16

Insertion Loss: ≤13.8 dB
Return Loss: ≥55 dB
Directivity: ≥55 dB
