Description

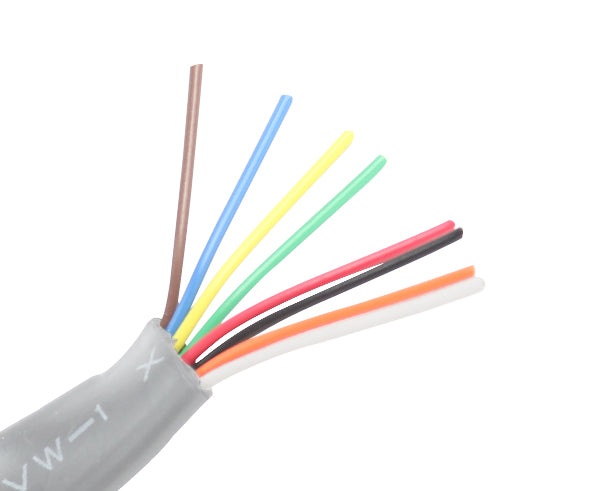

Flat Modular Cable, 26 AWG - 8 Conductors, 1000'
Flat modular telco cable with silver PVC jacket comes on a 1000' spool. Designed for low-speed data, telephone, or VoIP networks. Our telephone wire is easy to strip and crimp, so building your RJ11, RJ12, or RJ45 telephone or modem cables goes quickly and smoothly.
Features
Features
- Flat Modular Cable 1000'
- Bare Copper Conductor
- Silver-PVC Jacket
- 150 Volt Rating
- Designed for Telephone and VoIP Applications
- 26 AWG
- 8 Conductors
- AWM Styled Design
- VW-1 Rated
Specifications
LC1-8C
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PHYSICAL CHARACTERISTICS | |
| Tensile Strength | 10.3 Mpa |
| Elongation | Unaged: 100% min |
| Heat Shock Test | No Cracking |
| Cold Bend Test | No Cracking |
| Deformation Test | Max 50% |
| Flame Test | Pass FT2 |
| ELECTRICAL CHARACTERISTICS | |
| Rating | Temp 60ºC; Voltage 150V |
| Dielectric-Withstand Test | 500V |
| Spark Test | 1500V |
| JACKET | |
| Nominal Thickness | 0.51mm |
| Min. Thickness | 0.41mm |
| Material | PVC |
| OD (mm) | 2.50±0.10 × 9.00±0.30 |
| Colors | Black or Silver |
Additional Information
To learn more about our Telco Products, here is a link to a page containing more information on our premium Telco Products.
What's In The Box
What's In The Box

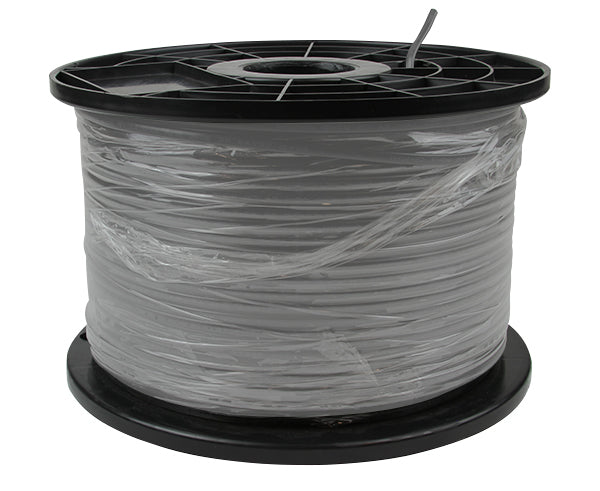

- Qty 1 - 1000ft Reel of Flat Modular Cable
