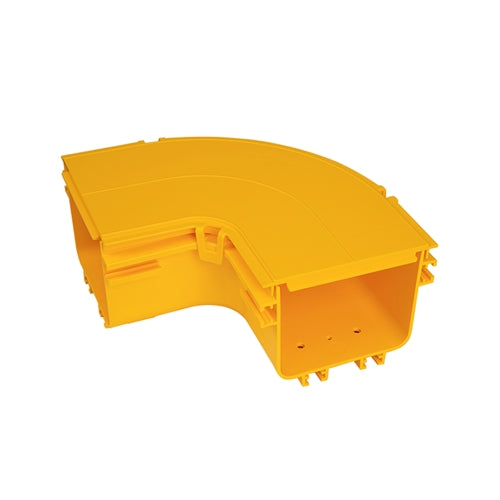

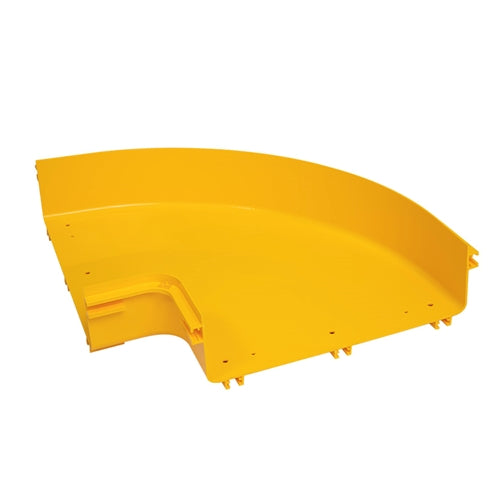

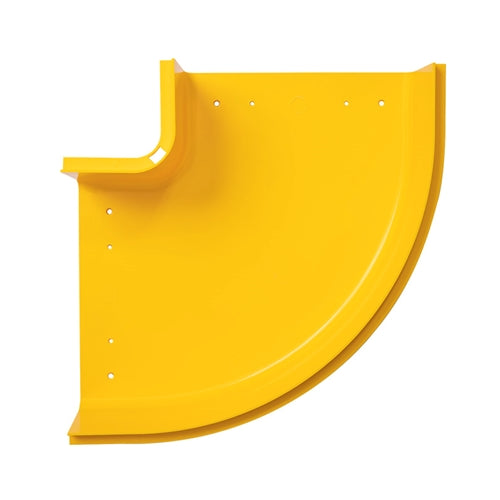

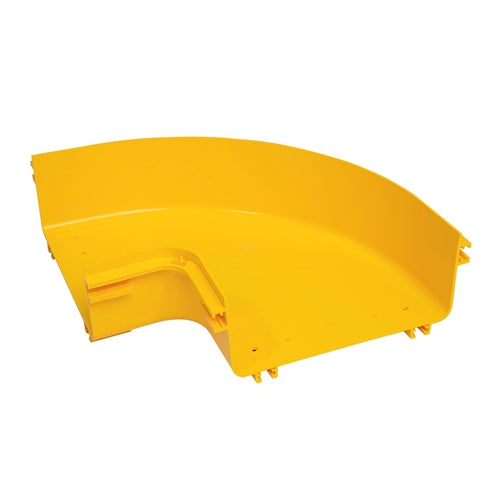

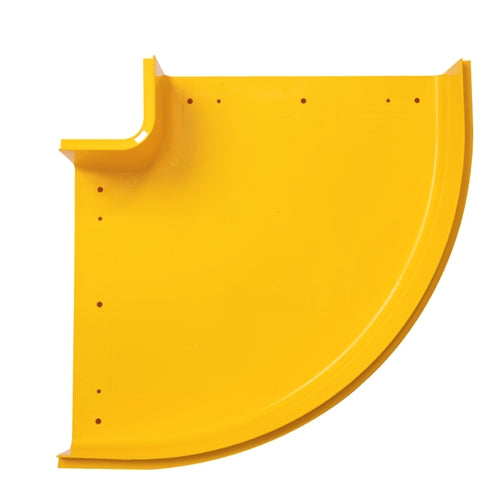

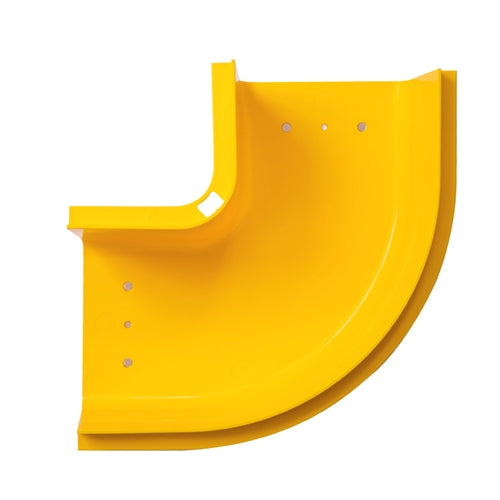

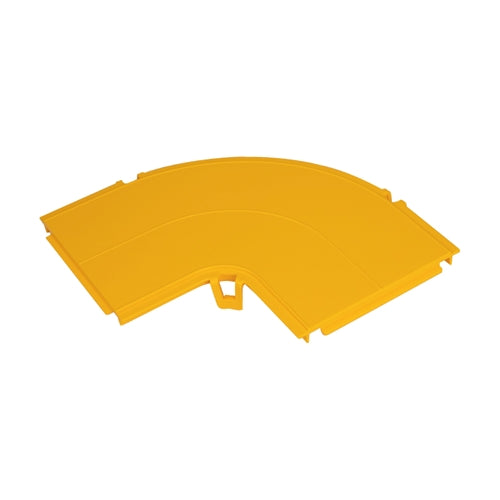

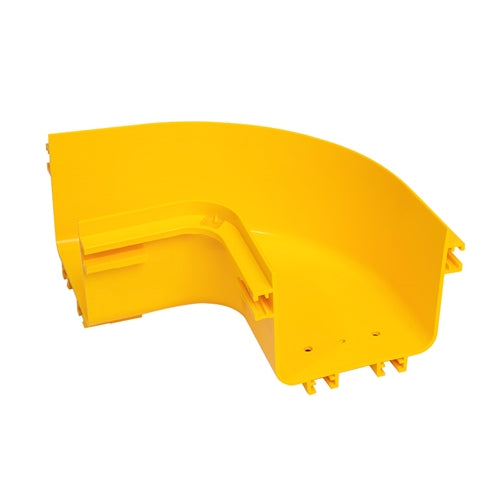

5” - 15" Horizontal 90° Elbow - Fiber Cable Tray Channel
Straight channel sections support and carry cables horizontally throughout a fiber cable routing system. Available in 6.5ft lengths, channels can be cut to size and connected to additional straight sections or transitional fittings such as elbow, tees, and crosses.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires couplers for connection (sold separately)
- Snap-on cover available (sold separately)
Specifications
| Document | Description | Download |
|---|---|---|
| Spec Sheet | Product overview and specifications | Download Spec Sheet |
| 5" Tech Drawing | Technical drawing for 5" Horizontal 90° Elbow model | Download 5" CM-T5-4760-HE Drawing |
| 10" Tech Drawing | Technical drawing for 10" Horizontal 90° Elbow model | Download 10" VCT-240HE91 Drawing |
| 15" Tech Drawing | Technical drawing for 15" Horizontal 90° Elbow model | Download 15" VCT-360HE91 Drawing |
