Description

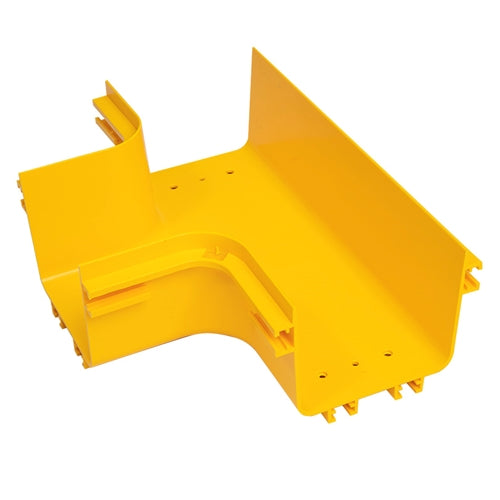

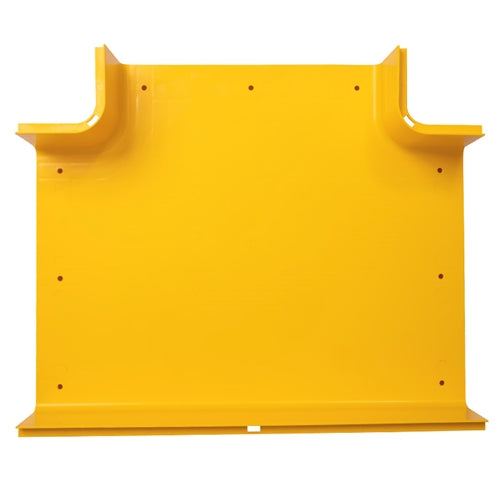

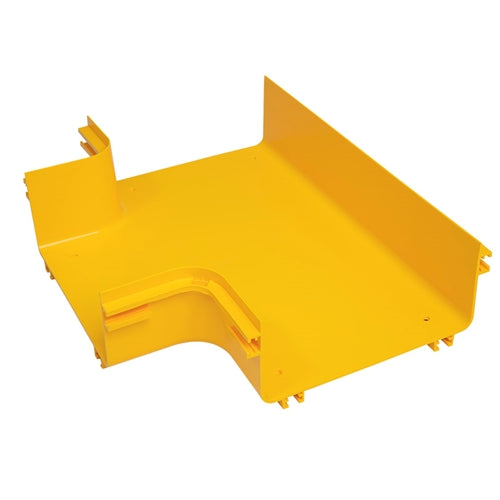

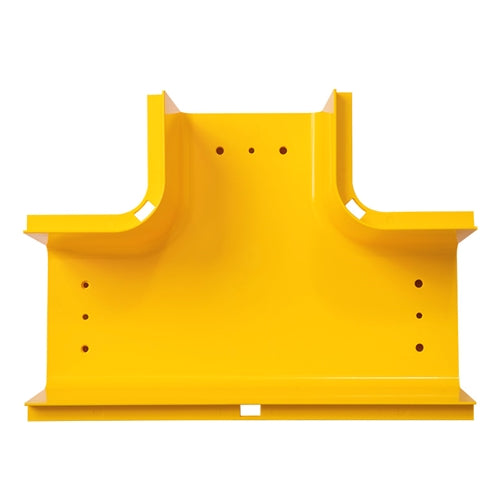

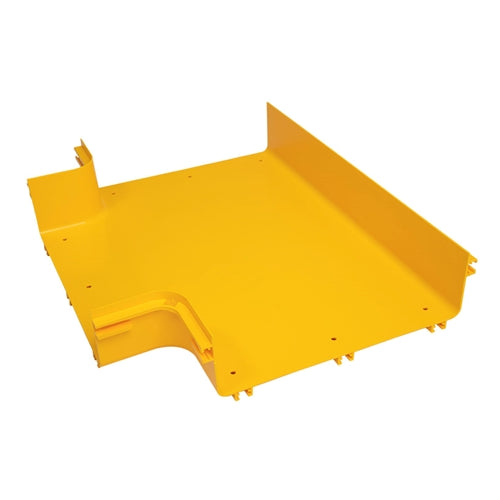

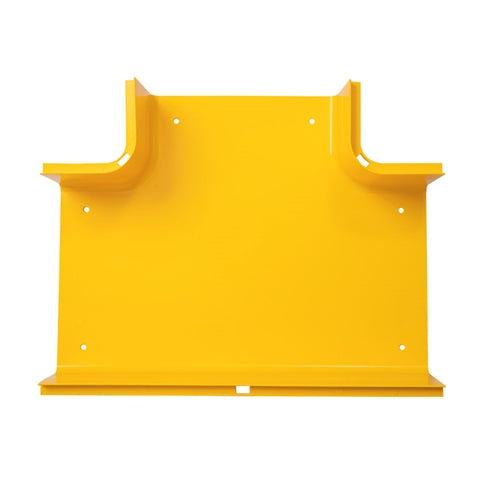

5” - 15" Horizontal Tee - Fiber Cable Tray Channel
Horizontal tees connect to three 5" - 15" straight channel sections or other transitional fittings to create a horizontal branch or provide a 90 degree vertical drop in a fiber routing system.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires couplers for connection (sold separately)

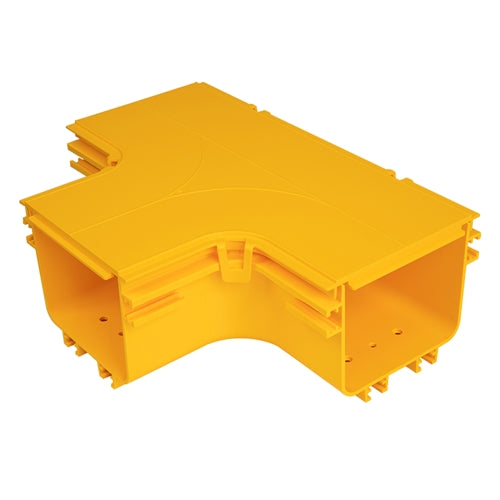

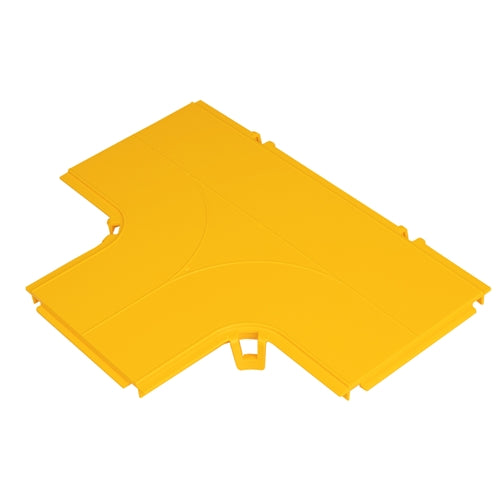

- Snap-on cover available (sold separately)
- UL listed
Specification
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| FIBER CABLE TRAY CHANNEL | 5” HORIZONTAL TEE | 10” HORIZONTAL TEE | 15” HORIZONTAL TEE |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | ||
| COLOR | YELLOW | ||
| DIMENSIONS (L X W X H) | 13.9” X 10.1” X 4.6” | 18.7” X 14.8” X 4.6” | 23.2” X 19.4” X 4.6” |
| WEIGHT | 1.61 LBS | 2.65 LBS | 3.72 LBS |
| INCLUDED COMPONENT | COVER FOR 5" (SOLD SEPARATELY) | COVER FOR 10" (SOLD SEPARATELY) | COVER FOR 15" (SOLD SEPARATELY) |
| HARDWARE | (2) 5" COUPLERS FOR CONNECTION (SOLD SEPARATELY) | (2) 10" COUPLERS FOR CONNECTION (SOLD SEPARATELY) | (2) 15" COUPLERS FOR CONNECTION (SOLD SEPARATELY) |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | ||
| SELLING UNIT | 1 PIECE | ||
Additional Information
| INSTALLATION ANIMATION | |
|---|---|
 |
What's in the Box
What's in the Box
-
Qty 1 - Horizontal Tee, 5", 10", 15" - Fiber Cable Tray Channel
