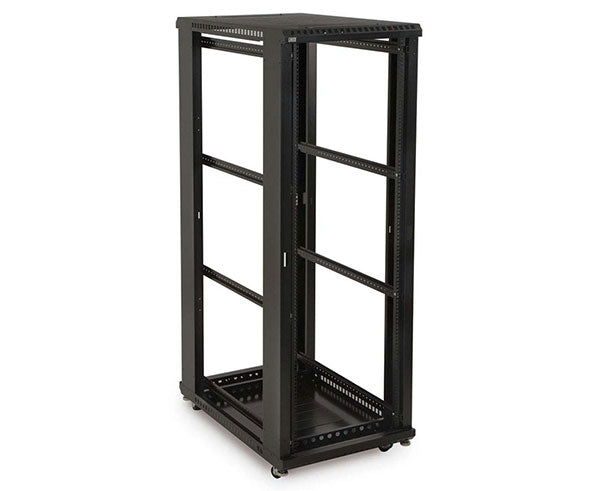

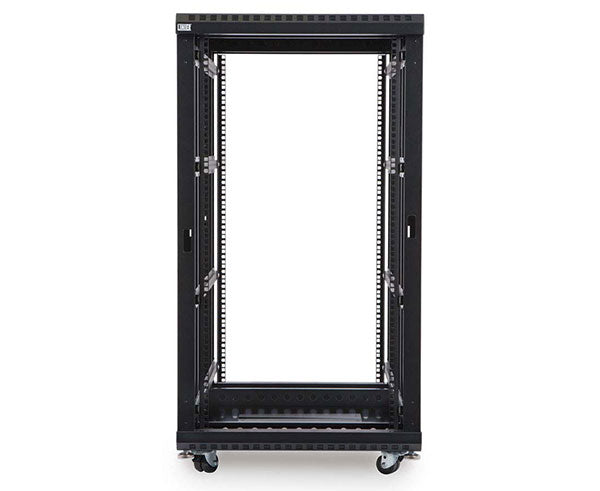

Network Rack, Open Frame, No Doors or Side Panels
Enclosures 9U and above require freight shipping. Please call us at 951-824-1571 for shipping details.
Cage nuts and rack screws are required for installation of patch panels and other components.
Open Frame Server Rack, No Doors/Side Panels

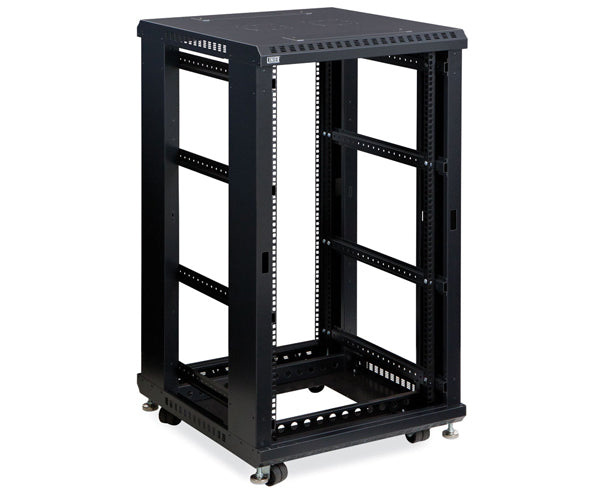

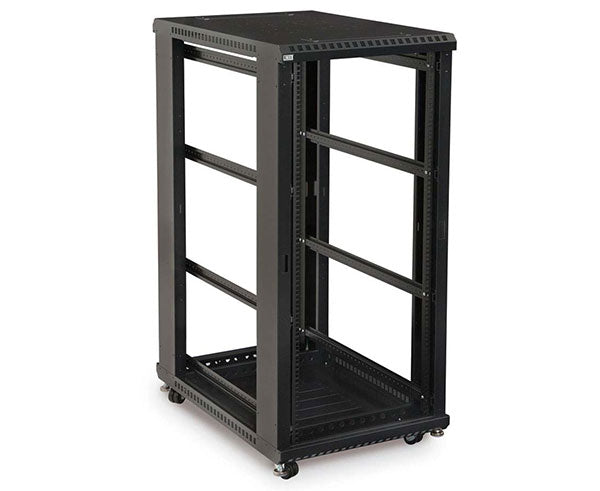

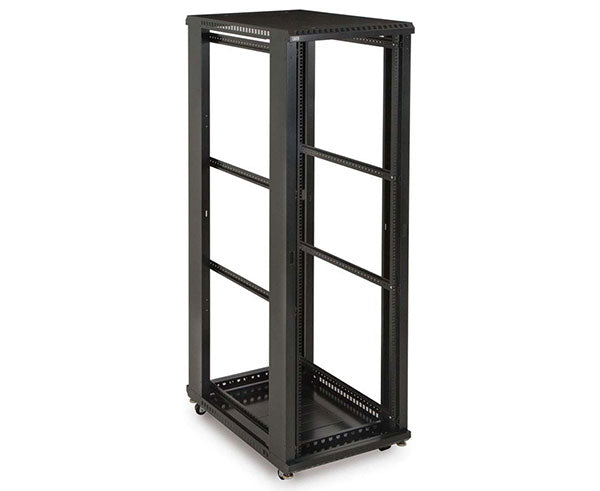

Setting itself apart from the 3100 series, the LINIER® 3170 line is a completely open server cabinet. This unique server cabinet is built without doors or side panels allowing maximum airflow for your network equipment. Built with a 24" or 36" depth, this LINIER® Server Cabinet is suitable for telecom and datacom systems, A/V equipment, and small home audio/visual equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low cost, open frame server cabinet, the 3170 LINIER® series is your answer.
- No doors or side panels
- 1300 lb. weight capacity (Holds 800 lbs. on casters)
- 24" & 36" Depth

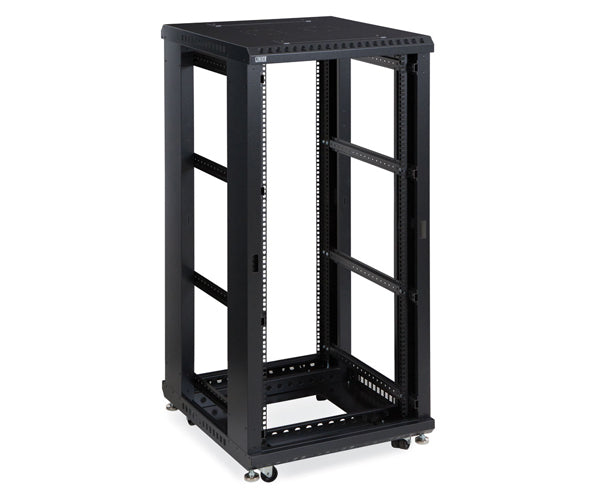

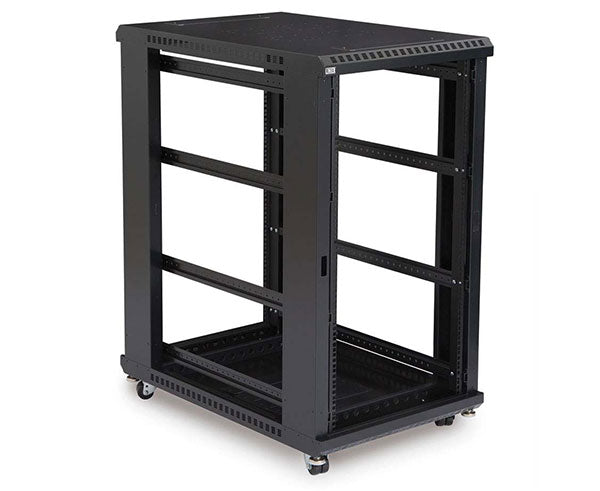

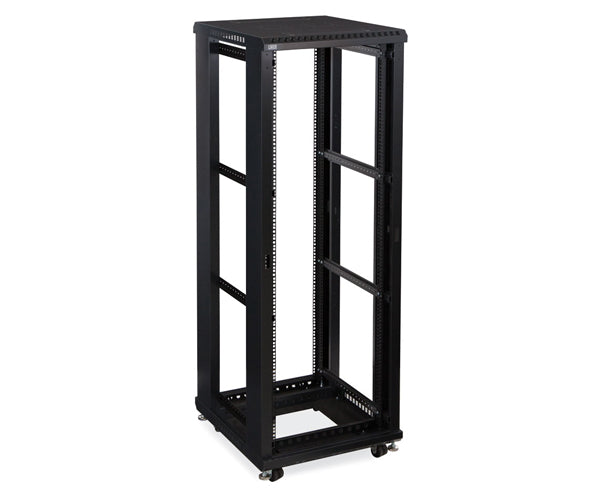

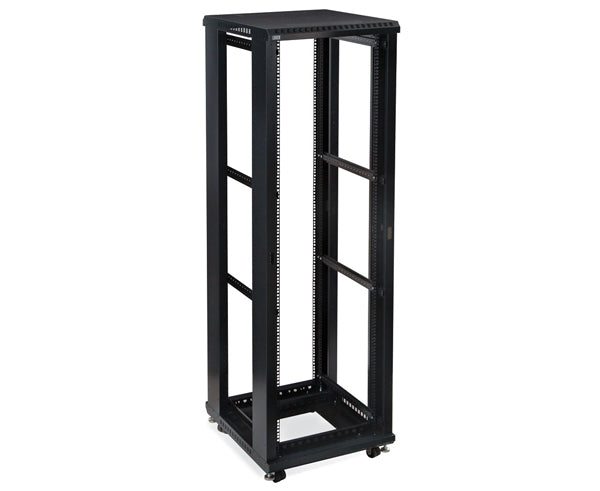

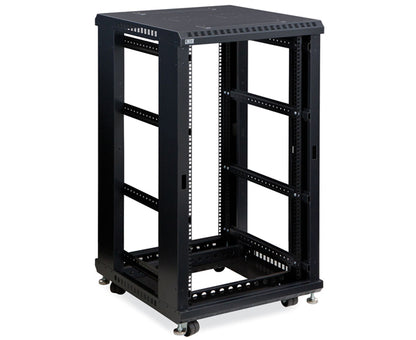

- Sizes available: 22U, 27U, 37U, 42U

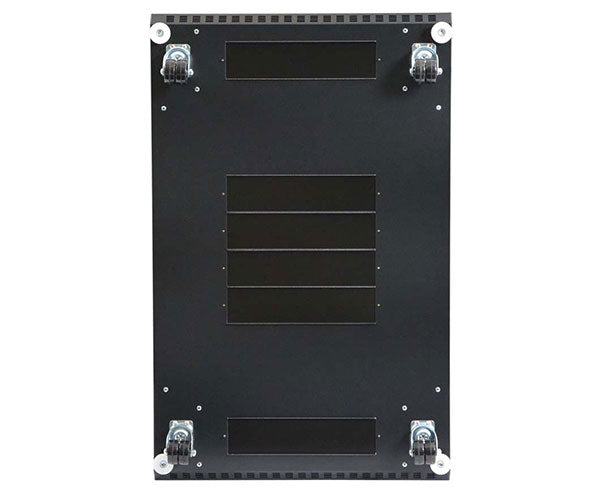

- Includes preinstalled casters and levelers
- Includes two sets of adjustable cage nut style mounting rails
- Top includes removable laser knockouts
- 19" EIA 310-D compliant
- Made in the USA
- 5-Year Limited Warranty

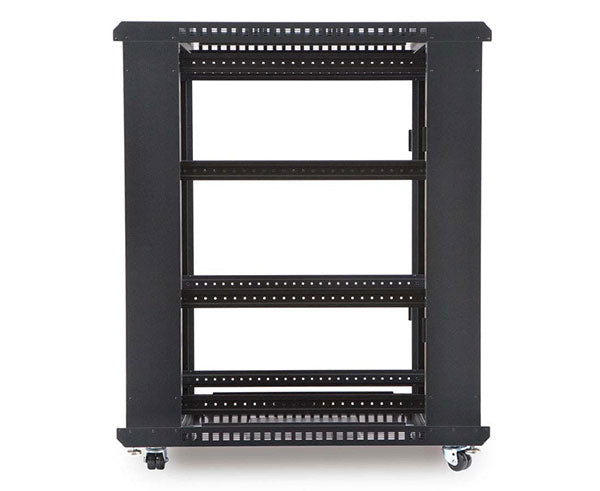

- Open Design - The open frame design allows for maximum air flow for your network equipment.
- Easy Installation - Casters and levelers are preinstalled to allow you to easily move and load your system into the desired location. (Rack hardware not included.)

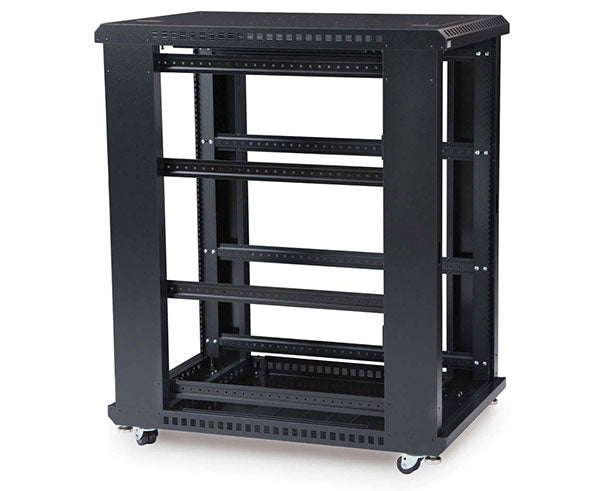

- Adjustable Rails - Includes two sets of adjustable, vertical rails which extend to a maximum depth of 24" or 36" for versatile mounting options.

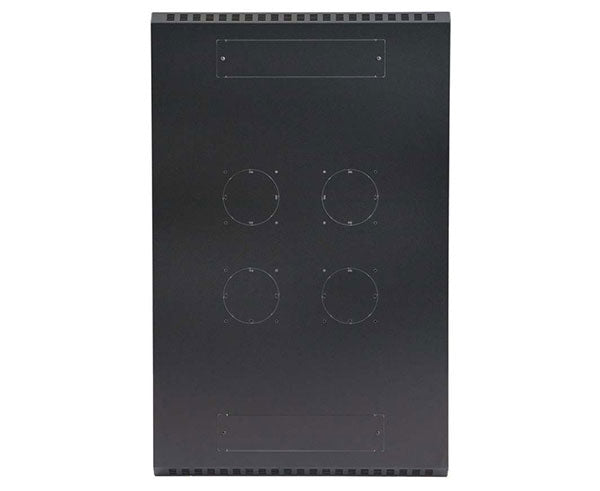

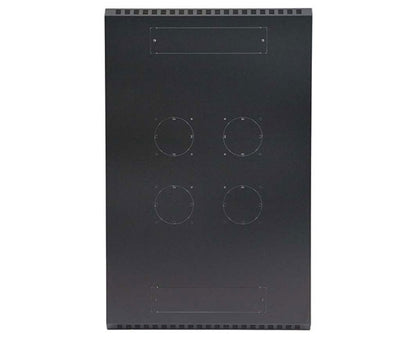

- Cable and Fan Knockouts - There are numerous cable entry points on both the top and the bottom of this open frame rack. There are also four large knockouts on the top of the frame to install fans, or for added cable pass through.
|Depth||27" (24" usable depth) or 37.72" (36" usable depth)|
|Height||45.36"(22U), 54.20"(27U), 71.70"(37U), 80.40"(42U)|
24" - 93 lbs.(22U), 94 lbs.(27U), 104 lbs.(37U), 108 lbs.(42U)
36" - 107 lbs.(22U), 115 lbs.(27U), 131 lbs.(37U), 152 lbs.(42U)
|Material(s)||CRS (Cold Rolled Steel)|
|Color/Finish||Medium Texture Black|
Free Standing Server Cabinets Accessories
Server cabinets are an excellent means of providing both physical and environmental protection for your network equipment. We offer free standing server cabinets with either a vented or tempered glass door. We offer the LINIER® line of free standing server cabinets by Kendall Howard suitable for server storage, battery backups, and switching banks.
To learn more about our Free-Standing Enclosure Racks please visit our overview page. Kendall Howard's Server Enclosures can be combined with a wide array of products such as:
What's in the box?
What's in the box?
- Qty 1 - LINIER® Server Cabinet - No Doors/No Side Panels
