Security Alarm Cable - Riser (CMR) - 22/2, CL3R, 7-Strand, Shielded, 1000ft, Gray

$108.60
SKU: ASC2-2903/222
Various lead times may apply to this product. Please contact us for more details.

Made in USA RoHS Compliant ETL Verified logo

Description

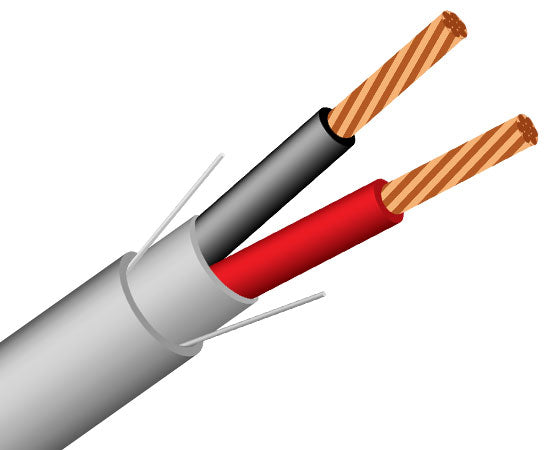

22/2 Riser Security Alarm Cable (7 Strand) CMR FT4 Rated Shielded 1,000'

This 22/2 Riser Security Alarm Cable features two 22 gauge stranded copper conductors suitable for security systems, intercom systems, power limited controls, and sound/audio systems. Made from 7 strand bare copper cable, it's shielded with a CL3R rated gray jacket and manufactured in the USA. Available in 1000 ft increments.

Click to expand  22/2 Alarm Security Shielded Riser Cable   Security Alarm Cable - Riser (CMR) - 22/2, CL3R, Stranded (7 Strand), Shielded,

Explore our portfolio of high quality security cables

Plenum - CMP
Shielded
Plenum - CMP
Unshielded
Riser - CMR
Shielded
Riser - CMR
Unshielded
Outdoor - CMX
Water Block

Applications

Our Bulk Security Alarm Cables, also known as alarm wire, has been designed to meet the installation requirements for alarm systems. Our stock has a wide variety of high quality alarm cables to meet all your needs. Our bulk security cables come with both riser and plenum rated jacket. Be sure to check the building code requirements before purchasing alarm cable. The alarm cable also include print legends to allow for quick identification of each cable's application. Time is precious and the convenience of the cables at installation makes our security alarm cables the choice for multiple applications.

Security Alarm Cable - Riser (CMR) - 22/4 CL2R, Solid BC, Unshielded,

Where to use Plenum Security Alarm Cable

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Features

Features

  • 22 AWG 2 conductors
  • 7 stranded bare copper conductors
  • PVC insulation
  • AL foil shielded
  • PVC jacket
  • Sequential footage marking
  • CL3R rated jacket
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLR/760, CMR/800, CL3R, CL2R/725
    • 14-12 AWG: FPLR, CL3R

Residential or commercial applications

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 22 AWG
Insulation PVC
Nominal OD 3.30mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMR | CL3R
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 22 AWG 2C (ETL) 725/CL3R 800/CMR (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


Additional Information

Additional Information

How to Select CM, CMR and CMP Cable?

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.


Where to use Plenum Security Alarm Cable



Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.



What's in the Box

What's in the Box

  • Security Alarm Cable - Riser (CMR) - 22/8 AWG, CL3R, Stranded (7 Strand), Shielded, Gray
  • 1000 Ft
