Security Alarm Cable - Plenum (CMP) - 22/2 AWG, CL3P, Stranded (7 Strand), Shielded, 1000ft, White

$116.98
SKU: ASC3-458/222
Made in USA RoHS Compliant ETL Verified logo

Description

Security Alarm Cable 22/2 (7 Strand) Plenum CMP Rated Shielded 1000'

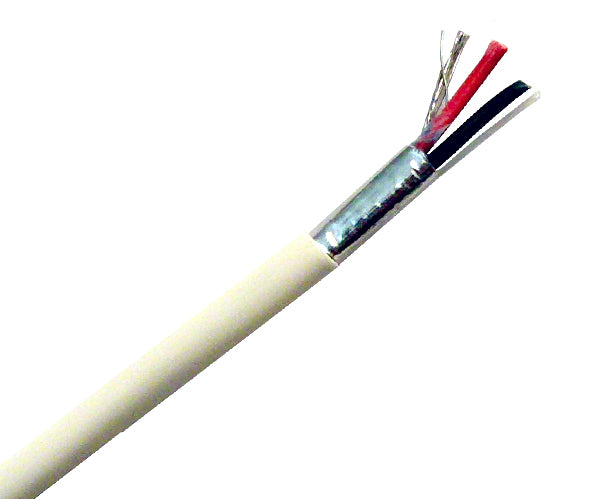

Tailored for security systems, this 22 AWG 2-conductor Security Alarm Cable is adaptable for intercoms, power limited controls, and sound/audio systems. Comprising 7 strands of bare copper, it boasts shielding and a Plenum CMP-rated white jacket. Manufactured in the USA, it is available in 1000 ft. increments.

Our Bulk Security Alarm Cables, or alarm wire, are meticulously crafted to meet alarm system installation requirements. With a diverse selection of high-quality alarm cables in stock, our bulk security cables feature both riser and plenum rated jackets. Before purchase, ensure compliance with building code requirements. These cables also come with print legends for easy identification, saving valuable installation time and making them the preferred choice for various applications.

Security Alarm Cable 22/2 (7 Strand) Plenum CMP Rated Shielded 1000'

Explore our portfolio of high quality security cables

Plenum - CMP
Shielded
Plenum - CMP
Unshielded
Riser - CMR
Shielded
Riser - CMR
Unshielded
Outdoor - CMX
Water Block

Applications

A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.

Features

Features

  • 22 AWG 2 conductors
  • 7 stranded bare copper conductors
  • Low smoke PVC insulation
  • AL foil shielded
  • CL3P, Low smoke white PVC jacket
  • Sequential footage marking
  • CMP FT6 rated
  • ETL listed
  • RoHS compliant
  • NEC articles
    • 22-16 AWG: FPLP/760, CMP/800, CL3P, CL2P/725
    • 14-12 AWG: FPLP, CL3P

Residential or Commercial Applications

  • Security systems
  • Intercom systems
  • Sound/audio systems
  • Power-limited controls

Specifications

Specifications

Physical Construction

Inner Conductor Stranded Bare Copper
Conductor Size 22 AWG
Insulation PVC
Nominal OD 3.35mm
Outer Jacket Diameter .38mm
Jacket Low Smoke PVC
Jacket Color Gray
Number of Strands 7
Inner Conductor Diameter 1.2mm

Electrical Characteristics

Temperature 75°C
Voltage Rating 300V
Center Resistance 21.20 (Ω/km)

Additional Information

Standards ETL | RoHS | CMP | CL3P
Applications Security Systems | Intercom Systems Sound | Audio Systems | Power-Limited Controls
Jacket Printing 22 AWG 2C (ETL) 725/CL3P 800/CMP (VID:###) XXXX FT
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.


Additional Information

Additional Information

How to Select CM, CMR and CMP Cable?

CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.

CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.

CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.

CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.

Where to use Plenum Security Alarm Cable

Why Plenum?

A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.

What's in the Box

What's in the Box

  • Security Alarm Cable - Plenum (CMP) - 22/6 AWG, CL3P, Stranded (7 Strand), Shielded, White
  • 1000 Ft
