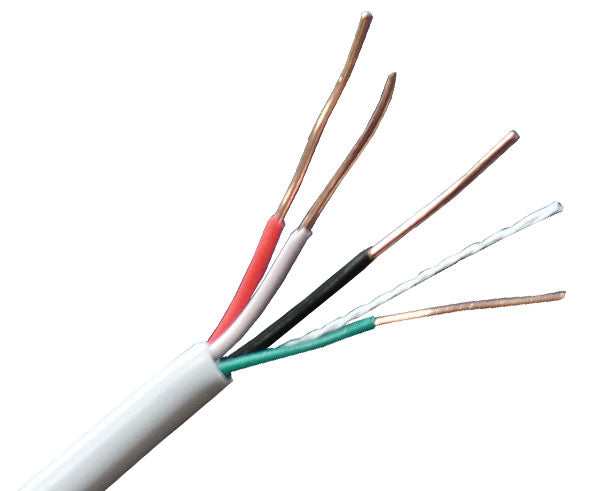

Riser (CMR) Security Alarm Cable - 22/4 CL2R - Solid BC - Unshielded - 1000ft - White
Security Alarm Cable 22/4, Solid Security Wire
Our CMR Rated 22 AWG 4 Conductor Security Alarm Cable features solid bare copper conductors and a white PVC jacket, available in 1,000 ft. increments. Ideal for security systems, intercoms, and more.
Crafted to meet alarm system installation needs, our Bulk Security Alarm Cables offer a variety of high-quality options with riser and plenum rated jackets. Ensure compliance with building codes and benefit from quick identification with print legends.
Explore our portfolio of high quality security cables
A broad range of applications exist for bulk plenum security alarm cabling. It is widely used with security systems, intercom systems, sound/audio systems, and power-limited controls in commercial settings such as schools, universities, hospitals, airports, government buildings, train and transportation centers, stadiums, and arenas. Since this security cable has multiple conductors under one jacket, the preparation, set up, and termination time is shorter.
- 4 solid bare copper conductors
- CL2R, White CMR PVC insulated jacket
- Unshielded security alarm cable
- Sequential footage marking
- ETL Listed
- CL2R Rated
- 22 AWG, 4 conductors
- Pull box
- CCTV Security Camera Wiring
- Intercom Systems
- Sound/Audio Systems
- Power-Limited Controls
How to Select CM, CMR and CMP Cable?
CMR: The 'R' in CMR is for 'Riser'. Riser type cables are engineered to prevent the spread of fire from floor to floor and are suitable for vertical shaft applications.
CMP: The 'P' in CMP is for Plenum. Cables meeting type CMP requirements are suitable for installation in ducts and plenums without the use of conduit. These cables are designed for fire resistance and low-smoke and toxin producing characteristics.
CMX: The 'X' in CMX is for Outside Plant. Cables meeting type CMX requirements are suitable for installation in outdoor applications where exposed to the elements.
CM/CMH/CMG: CM is used for general building wiring such as residential house. CM cables are used in areas other than plenums and risers.
A plenum space is the open area above the drop ceiling or below the floor that is used for air circulation in buildings. This could be a problem if there is ever a fire. Using non-plenum cables in a plenum space can spread fire and toxic smoke throughout a building. Plenum cable uses a flame-retardant jacket that is made of special plastics to prevent the release of harmful smoke. Plenum cable is mostly used in commercial applications such as schools and hospital buildings that house a large population of people. It also is required in most multi-floor business buildings with large plenum space areas.
What's in the Box
What's in the Box
- Security Alarm Cable - Riser (CMR) - 22/4 AWG, CL2R, Solid BC, Unshielded, White
- 1000 Ft
